EPSON AcuLaser CX11/CX11F Revision B
TROUBLESHOOTING Printer 252

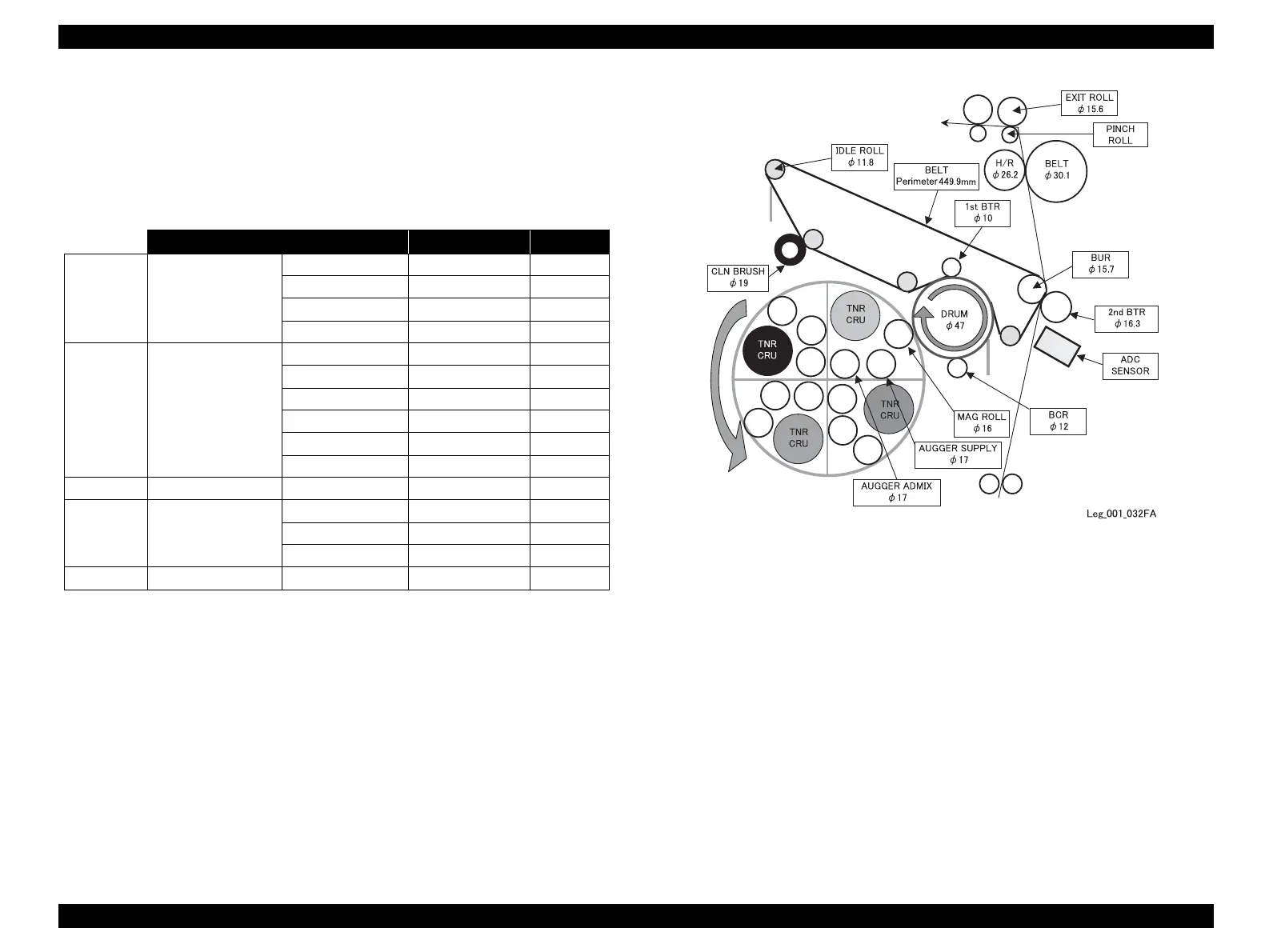

3.4.5.3 Uniformly Spaced Print Troubles (bands, smudges, etc.)
When horizontal stripes and spots appear at fixed intervals, it is highly possible that a
specific roll has caused the trouble. If this happens, you might be able to easily solve
the problem by measuring the interval between the stripes or spots on a test print, and
checking the relationship between the pitches shown in the table below (note that the
pitch does not necessarily match the perimeter of the roller).
Part (Roller) Name Outside Diameter Pitch (mm)
FUSER FUSER ASSY EXIT ROLL φ15.6 49.1
PINCH ROLL φ8.0 25.1
H/R φ26.2 84.5
BELT φ30.1 94.5
XERO CRU Photoconductor Unit DRUM φ47.0 147.7
BCR φ12.0 37.7
1st BTR φ10.0 31.4
BUR φ15.7 49.3
IDLE ROLL φ11.8 36.9
CNL BRUCH φ19.0 24.1
TRANSFER 2ND BTR ASSY 2nd BTR φ16.3 51.1
DEVE HOUSING ASSY-
DEVE
MAG ROLL φ16.0 24.9
AUGGER SUPPLY φ17.0 38.1
AUGGER ADMIX φ17.0 38.1
PR MOTER MOT ASSY P/R - - 7.5
