EPSON AcuLaser CX11/CX11F Revision B
DISASSEMBLY AND ASSEMBLY Printer 340
4.2.3.8 PLATE ASSY RETARD
REMOVAL
1. Remove FRAME ASSY-PH. (p352)
2. Remove CHUTE MSI. (p334)
3. Remove ROLL MSI. (p333)
4. Remove HOLDER ASSY RETARD MSI. (p338) Bend down PLATE ASSY
RETARD, remove the holes on the left and right from the boss on FRAME ASSY
BOTTOM, and remove PLATE ASSY RETARD.
5. Bend down PLATE ASSY RETARD, remove the holes on the left and right from
the boss on FRAME ASSY BOTTOM, and remove PLATE ASSY RETARD.

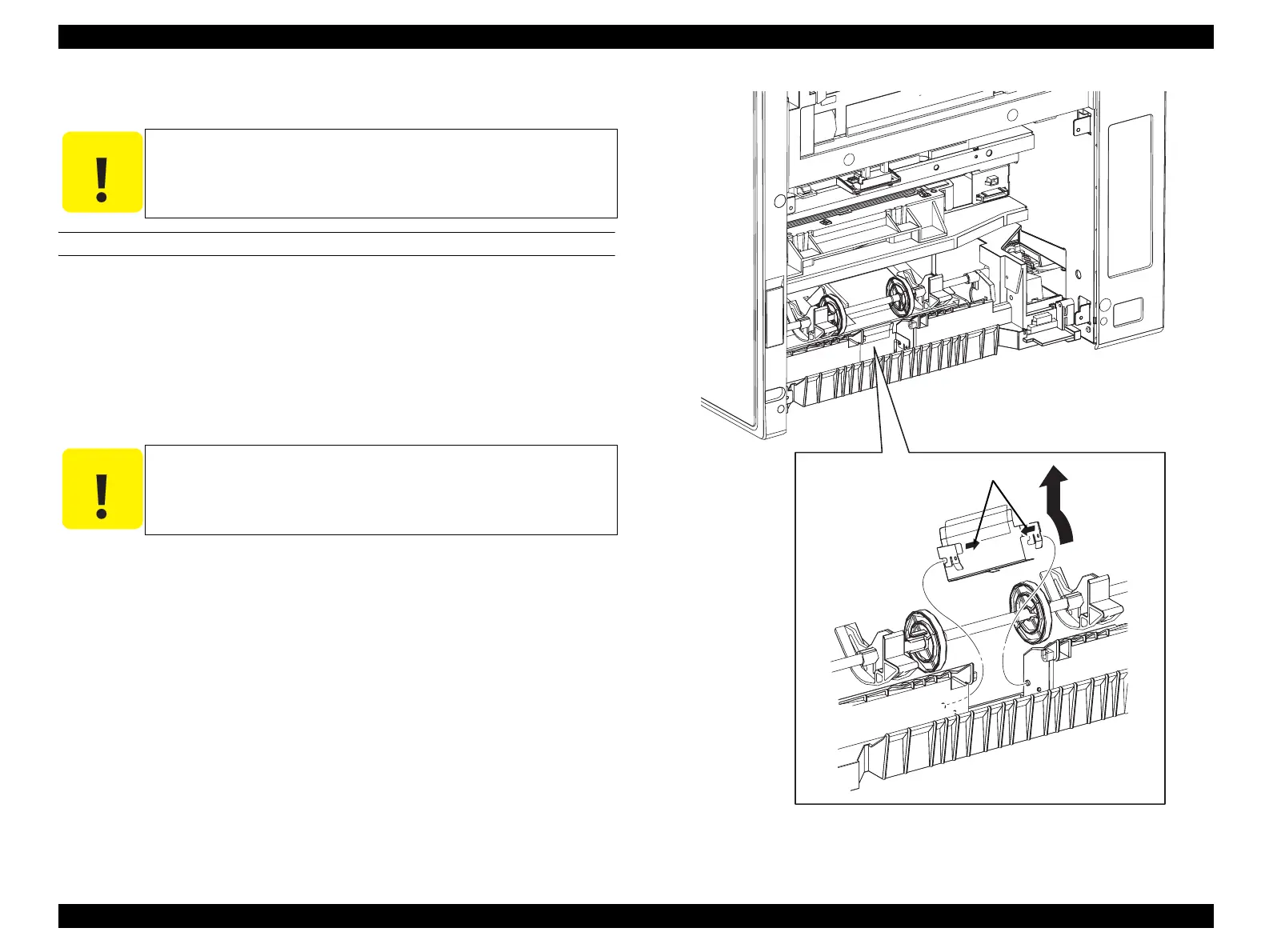

Figure 4-34. Removal of PLATE ASSY RETARD
C A U T I O N
Step numbers with [ ] in the figure indicate the step of
reinstallation.
C A U T I O N
When performing the following work, do not fold or bend PLATE
ASSY RETARD.
Leg_Sec03_049EA
5)-1
5)-2
