1.3 Control Panel
1.3.1 Panel Specifications
EXTERIOR

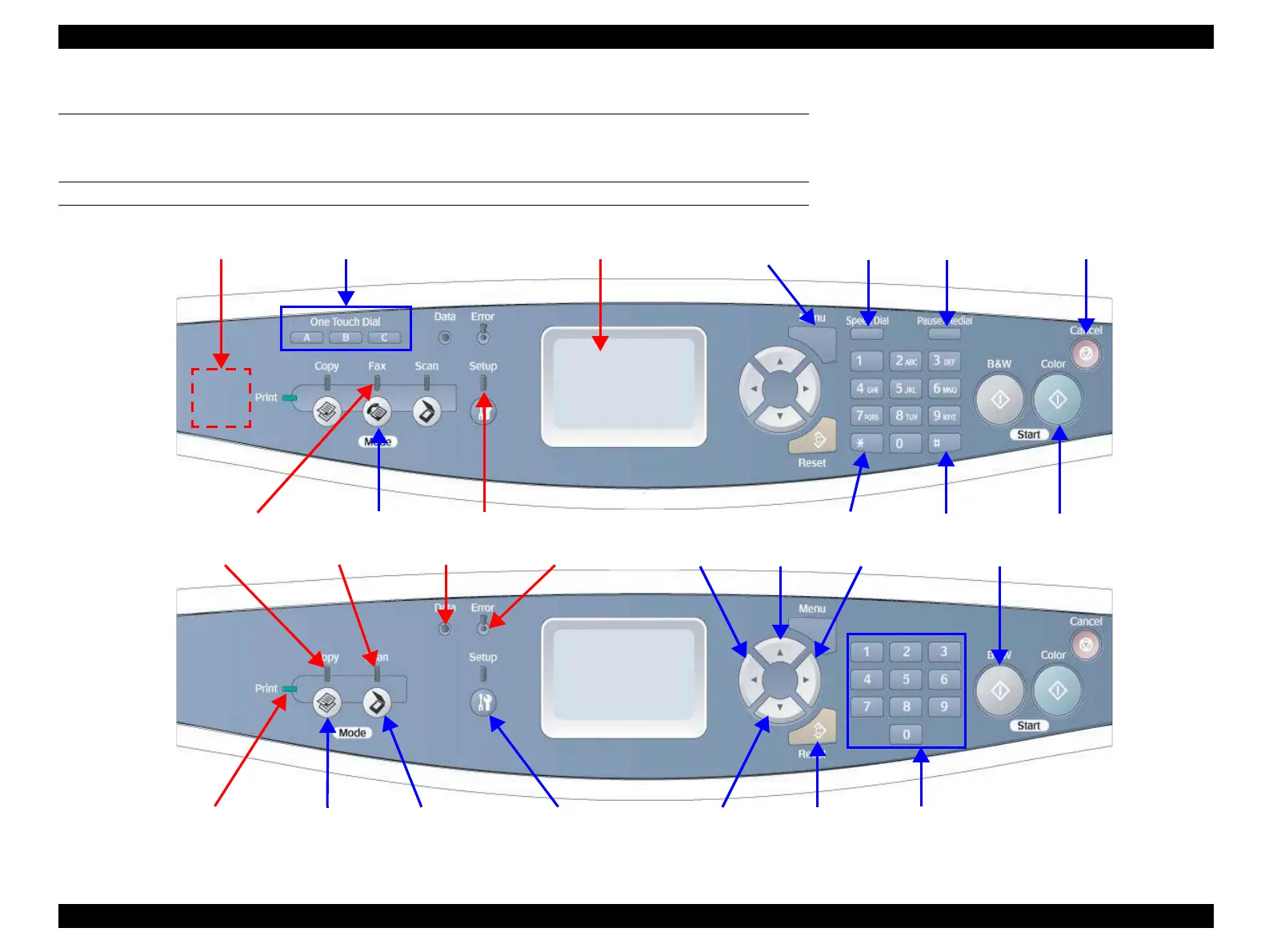

Figure 1-9. External View of Control Panel
5 lines x 22 characters (132 x 65 dots)
Data LED (Orange)
Print LED (green)
Error LED (Red)
One-Touch button A, B, C
Asterisk button Hash button
Ten-keyReset button
FAX button
Advanced/Menu
button
Right buttonLeft button Up button
Down button
B/W Start button
Color Start button
Cancel buttonSpeed dial button Redial button
Scan button
Scan LED (green)
Copy button
Setup button
Copy LED (green)
Setup LED (green)FAX LED (green)
Buzzer
FAX model
Base model
