EPSON AcuLaser CX11/CX11F Revision B
DISASSEMBLY AND ASSEMBLY Printer 449
4.2.12.7 COVER LEFT 500
REMOVAL
1. Remove 500 PAPER CASSETTE ASSY. (p442)
2. Remove the 5 screws (silver, with flange, 8 mm) fastening COVER LEFT 500 to
500 PAPER FEEDER ASSY.
3. Remove COVER LEFT 500 from 500 PAPER FEEDER ASSY while pulling the
rear side of COVER LEFT 500 outward.
REINSTALLATION
1. Match the boss on COVER LEFT 500 with the hole on 500 PAPER FEEDER
ASSY while inserting the metal plate section of the frame at the front and rear of
500 PAPER FEEDER ASSY into the clearance between the rib sections on the
front and rear of COVER LEFT 500, and attach COVER LEFT 500.
2. Fasten COVER LEFT 500 to 500 PAPER FEEDER ASSY with the 5 screws
(silver, with flange, 8 mm).
3. Attach 500 PAPER CASSETTE ASSY. (p442)

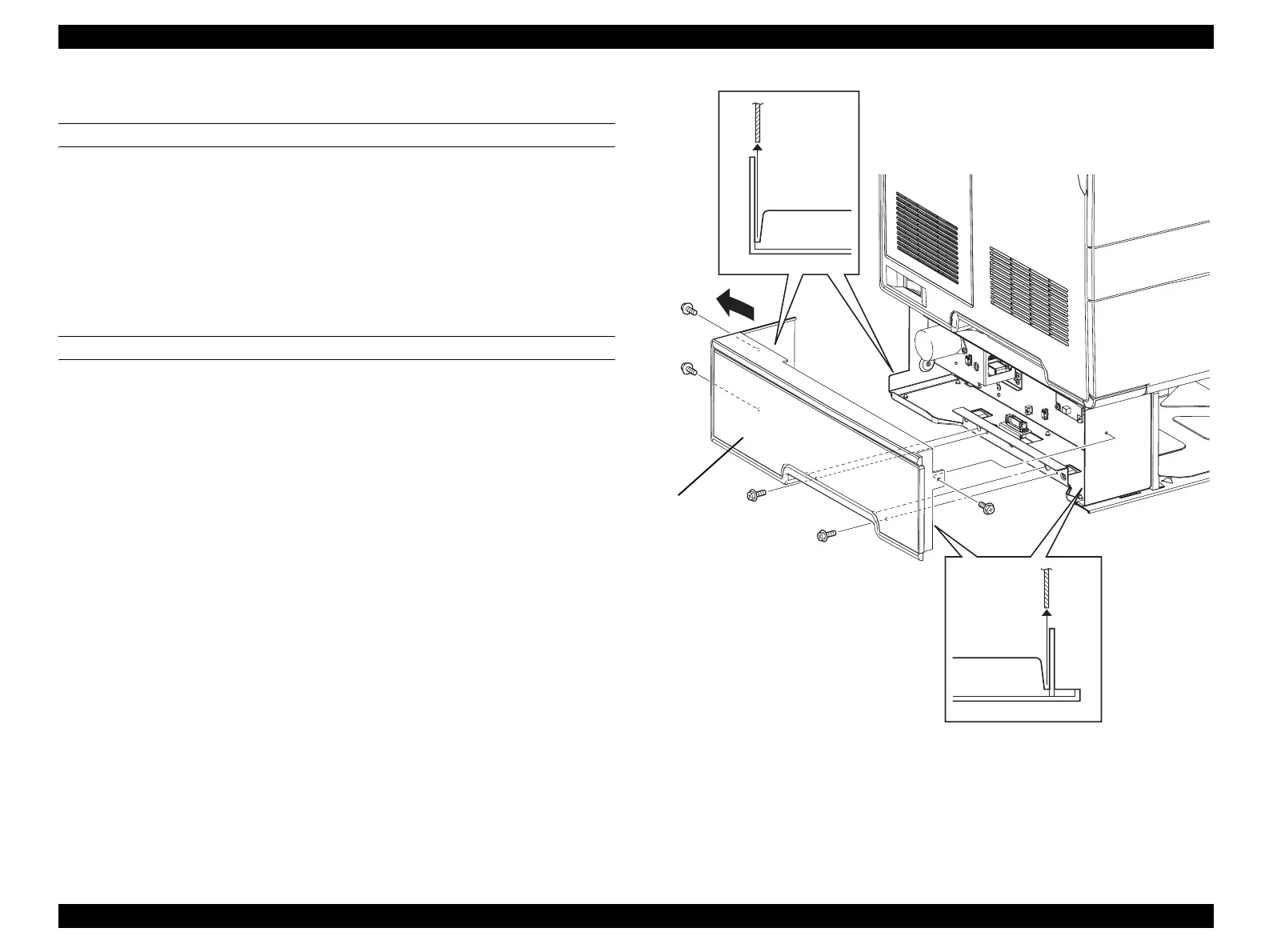

Figure 4-126. Removal of COVER LEFT 500
Leg_Sec03_020EA
2)
2)
2)
2)
2)
3)-1
3)-2
