EPSON AcuLaser CX11/CX11F Revision B
DISASSEMBLY AND ASSEMBLY ADF Section 498
4.4.2 ADF BASE ASSY
4.4.2.1 ADF BASE ASSY
REMOVAL
1. Remove the Scanner. (p306)
2. Remove the ADF Unit. (p481)
3. Remove the ADF COVER R. (p492)
4. Remove the PAPER GUIDE ASSY. (p526)
5. Remove the ADF COVER C. (p496)
6. Disconnect the all connectors on the ADF PCB ASSY.
7. Remove the four screws (M3 x 8 mm, P-type, A-head) that secure the ADF
FRAME ASSY to the SDH COVER, remove the COVER SPRING ASSY, and
then remove the ADF FRAME ASSY together with the ADF BASE ASSY.

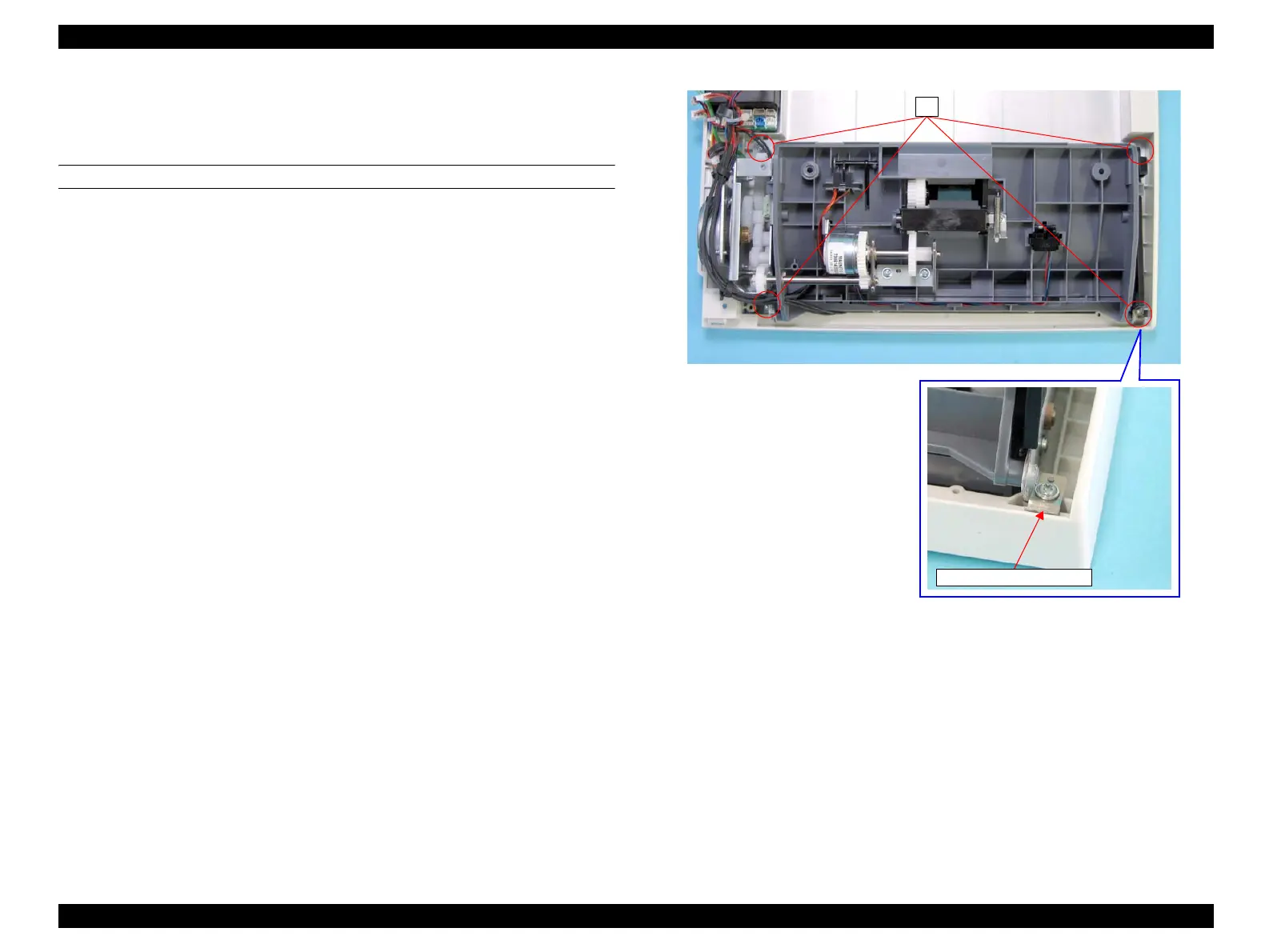

Figure 4-182. Removal of ADF BASE ASSY (1)
7)
COVER SPRING ASSY
manuals4you.commanuals4you.com
To Next Page
