Epson AcuLaser CX11 Service Manual

EPSON AcuLaser CX11/CX11F Revision B
DISASSEMBLY AND ASSEMBLY Printer 317
4.2.2.9 COVER MSI
REMOVAL
1. Remove COVER ASSY RH. (p326)
2. Slide COVER MSI in a slightly open state to the right to remove from the main
unit.
REINSTALLATION
1. Match the hole on COVER MSI with the boss on the main unit with COVER MSI
in a slightly open state, and slide COVER MSI to the left to attach.
2. Attach COVER ASSY RH. (p326)

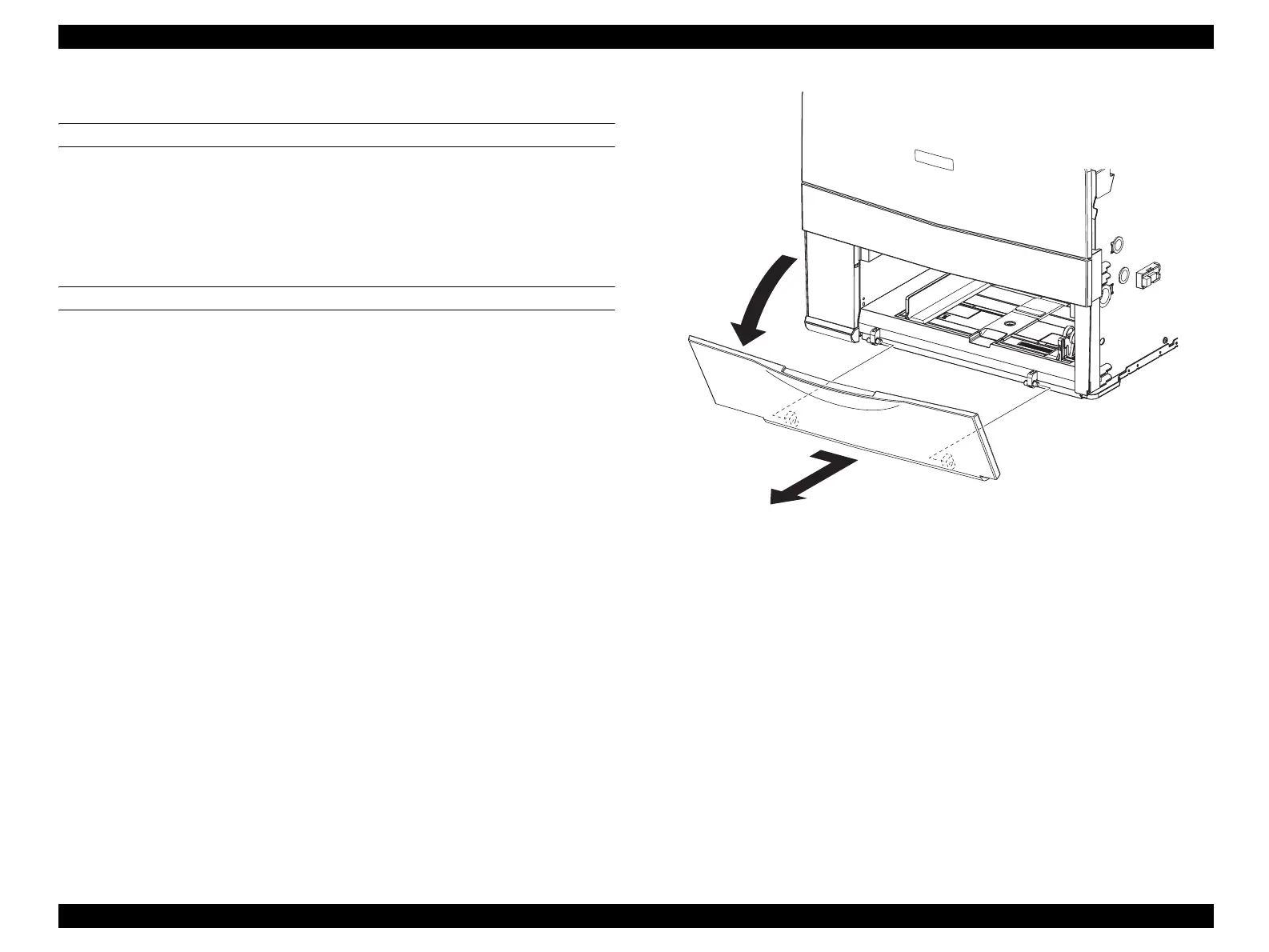

Figure 4-12. Removal of COVER MSI
Leg_Sec03_008EA
2)-1
2)-2
