EPSON AcuLaser CX11/CX11F Revision B
DISASSEMBLY AND ASSEMBLY Printer 464
4.2.12.21 HOLDER ASSY RETARD 500
REMOVAL
1. Remove 500 PAPER CASSETTE ASSY. (p442)
2. Remove CHUTE FDR ASSY 500. (p450)
3. Remove COVER RIGHT 500. (p451)
4. Remove COVER LEFT 500. (p449)
5. Remove CLUTCH ASSY FEED. (p457)
6. Remove DRIVE ASSY FEED. (p454)
7. Remove HOUSING ASSY FEED. (p472)
8. Remove CHUTE ASSY 500. (p462)
9. Remove LEVER 500 and SPRING LEVER 500 from CHUTE ASSY 500 while
bending down the bosses on both sides of LEVER 500.
10. Remove HOLDER ASSY RETARD 500 from CHUTE ASSY 500 while bending
down the bosses on both sides of HOLDER ASSY RETARD 500.

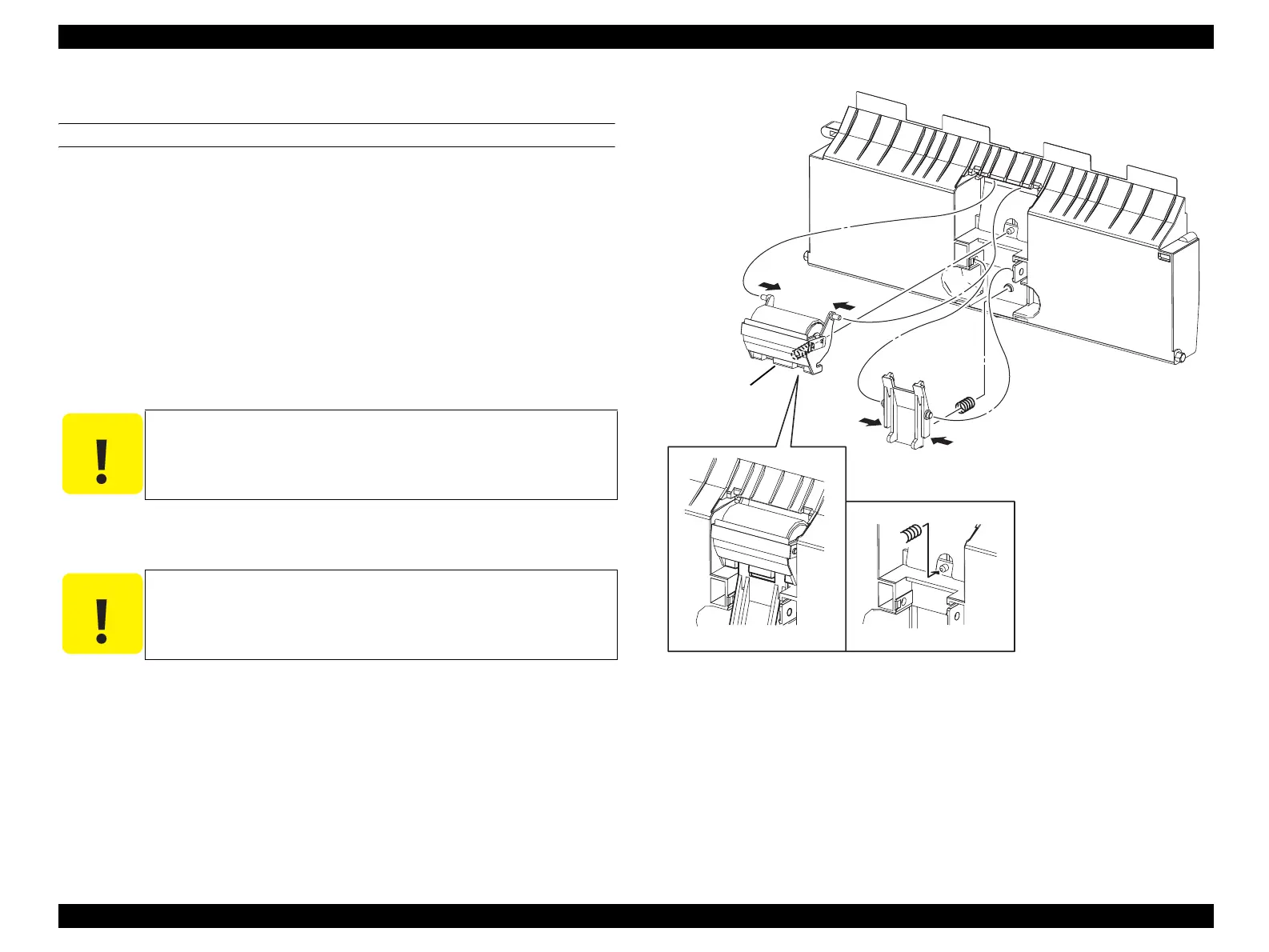

Figure 4-141. Removal of HOLDER ASSY RETARD 500
C A U T I O N
îš„ When performing the following work, take care not to damage
the LEVER 500 boss.
îš„ When performing the following work, take care not to lose
SPRING LEVER 500.
C A U T I O N
îš„ When performing the following work, take care not to damage
the HOLDER ASSY RETARD 500 boss.
îš„ When performing the following work, take care not to lose
SPRING RETARD.
Leg_Sec03_038FA
CAUTION CAUTION
10)-1
10)-1
10)-2
9)-1
9)-3
9)-1
9)-2
