EPSON AcuLaser CX11/CX11F Revision B
DISASSEMBLY AND ASSEMBLY Printer 463
REINSTALLATION
1. Insert the left-side shaft on CHUTE ASSY 500 into the bearing on GUIDE CST L.
2. Insert the right-side shaft on CHUTE ASSY 500 into the bearing on GUIDE CST
R, and attach CHUTE ASSY 500 to 500 PAPER FEEDER ASSY.
3. Match the hole on BRACKET MAG R with the boss on 500 PAPER FEEDER
ASSY while inserting BRACKET MAG R into the notch on 500 PAPER
FEEDER ASSY, and attach BRACKET MAG R.
4. Fasten BRACKET MAG R to 500 PAPER FEEDER ASSY with the screw (silver,
6 mm).
5. Fasten CHUTE ASSY 500 to 500 PAPER FEEDER ASSY with the 2 screws
(silver, tapping, 8 mm).
6. Attach HOUSING ASSY FEED. (p472)
7. Attach DRIVE ASSY FEED. (p454)
8. Attach CLUTCH ASSY FEED. (p457)
9. Attach COVER LEFT 500. (p449)
10. Attach COVER RIGHT 500. (p451)
11. Attach CHUTE FDR ASSY 500. (p450)
12. Attach 500 PAPER CASSETTE ASSY. (p442)

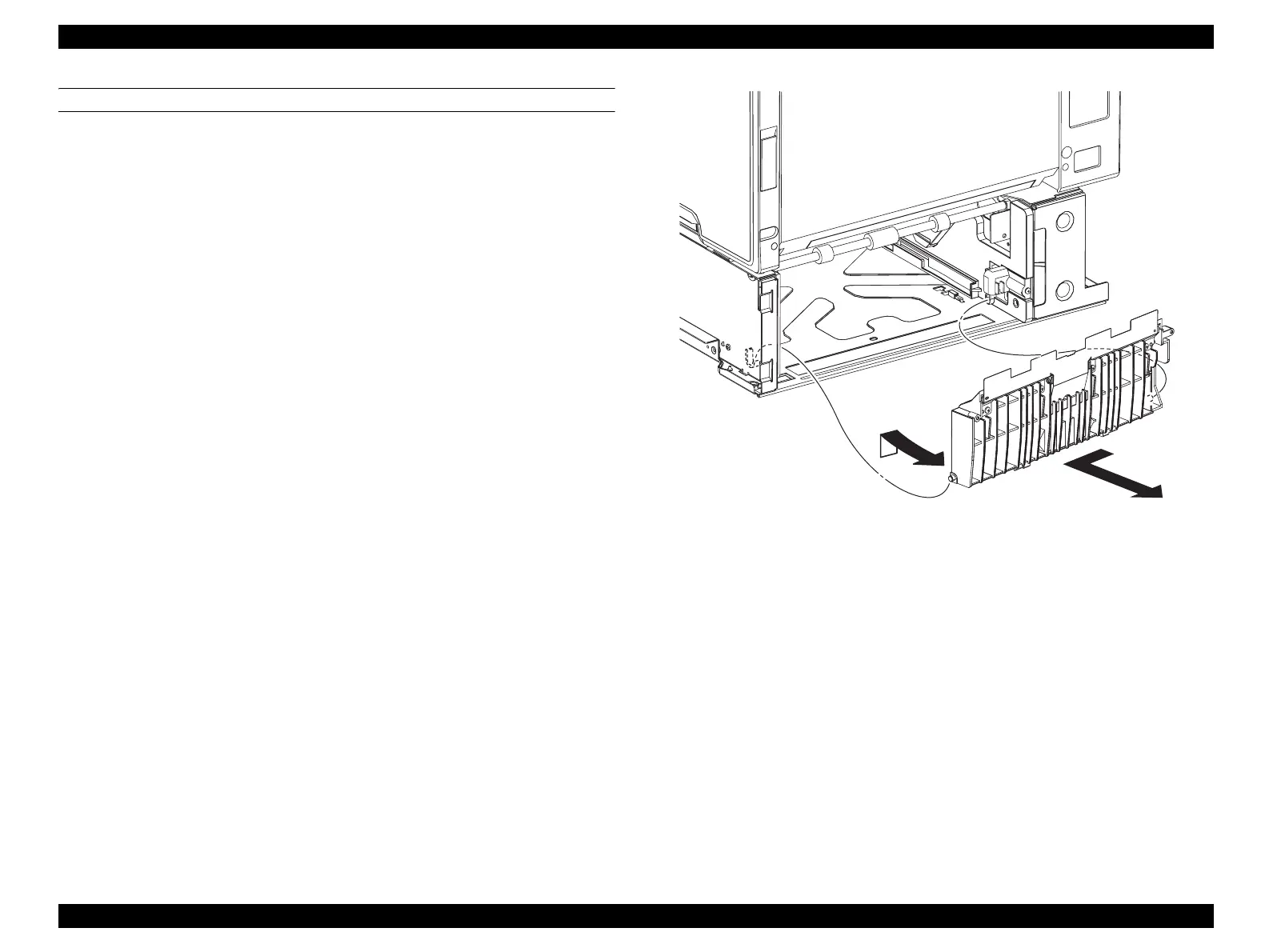

Figure 4-140. Removal of CHUTE ASSY 500 (2)
Leg_Sec03_517EA
11)
12)
