EPSON AcuLaser CX11/CX11F Revision B
DISASSEMBLY AND ASSEMBLY Printer 352
4.2.4.4 FRAME ASSY-PH
REMOVAL
1. Remove COVER-PH. (p349)
2. Open CHUTE ASSY-REAR.
3. Remove the four screws (silver, with flange, 8 mm) that secure the FRAME
ASSY-PH to the main unit.
4. Close CHUTE ASSY-REAR.
5. Place the FRAME ASSY-PH a little away from the main unit together with the
CHUTE ASSY-REAR.
6. Disconnect P/J603 and P/J604 connectors and remove the FRAME ASSY-PH
together with the CHUTE ASSY-REAR.
7. Attach CHUTE ASSY-REAR. (p350)

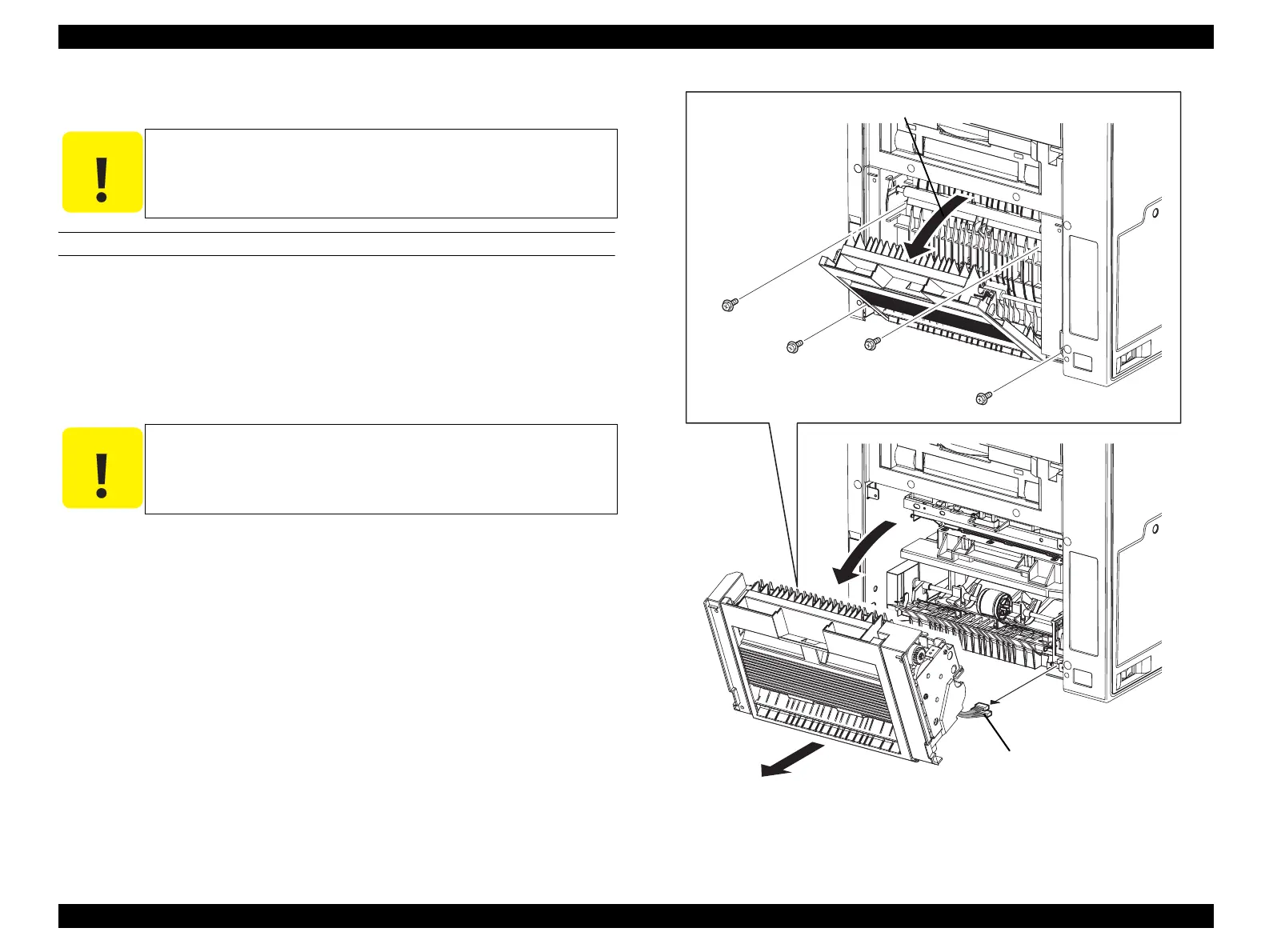

Figure 4-44. Removal of FRAME ASSY-PH
C A U T I O N
Step numbers with [ ] in the figure indicate the step of
reinstallation.
C A U T I O N
Be careful not to pull the FRAME ASSY-PH too much when
removing it as it is connected with harnesses.
Leg_Sec03_057EA
3)
3)
3)
3)
2)
5)
7)
6)
