Epson AcuLaser CX11 Service Manual

EPSON AcuLaser CX11/CX11F Revision B
DISASSEMBLY AND ASSEMBLY Printer 322
4.2.2.13 COVER ESS
REMOVAL
1. Loosen the screw fastening COVER ESS to the main unit.
2. Remove COVER ESS from the main unit.
EINSTALLATION
1. Match the two protrusions on the bottom side of COVER ESS with the holes on
COVER LH, and attach COVER ESS.
2. Fasten COVER ESS to the main unit with the screw.

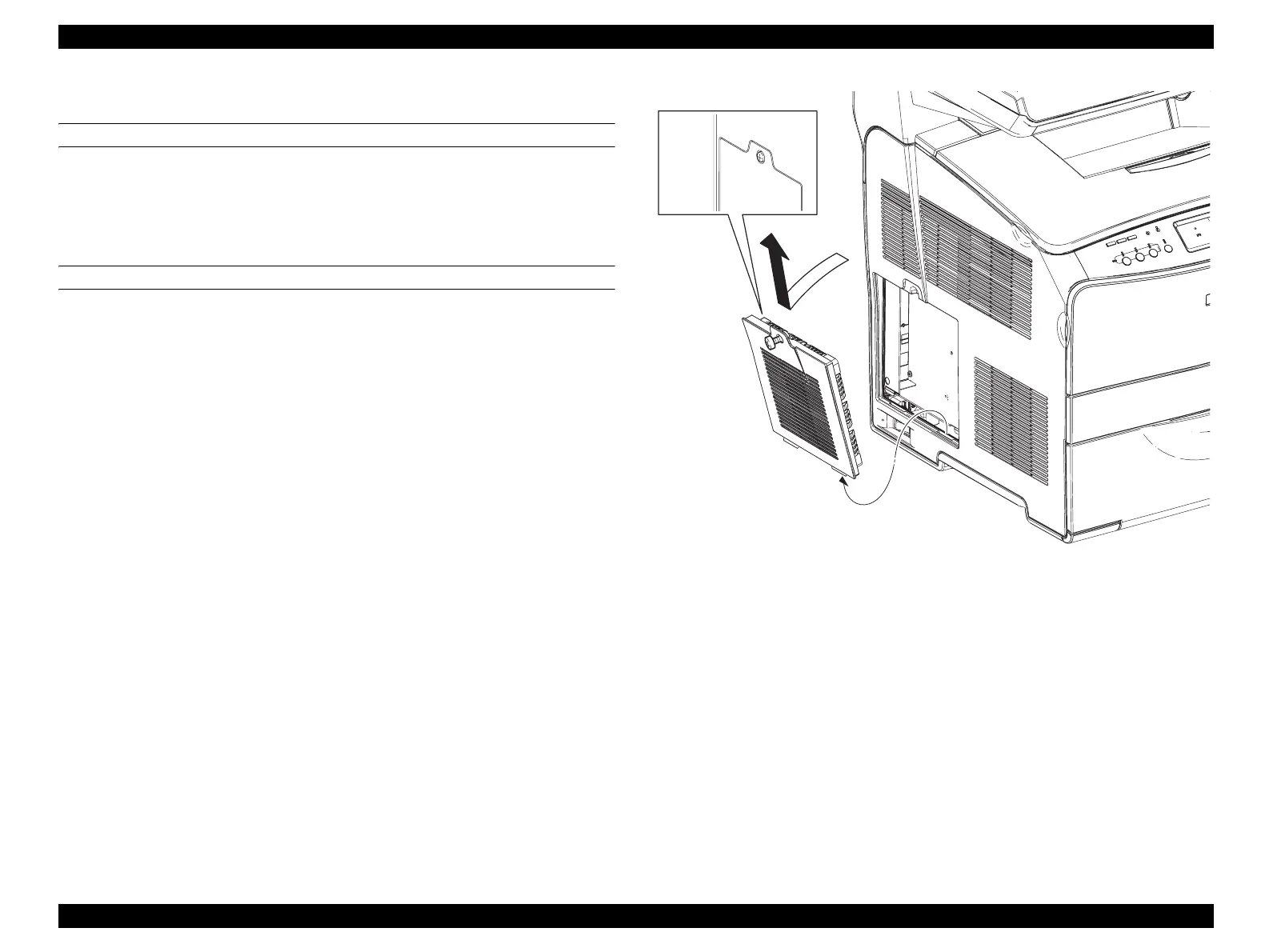

Figure 4-17. Removal of COVER ESS
Leg_Sec03_188RA
1)
2)
