DISASSEMBLY AND ASSEMBLY Overview 303
4.1.3 List of Screws
Many types of screws are used on this printer. Do not mistakenly attach them at the wrong positions. Pay special attention when handling screws for plastic and screws for metal
plates. If you mix up these screws, screw holes will be damaged. Screw threads also will be damaged, which may cause further trouble.
 Printer Section
C A U T I O N
Positions inscribed with the letter “T” on the frame indicate screws
for plastic.

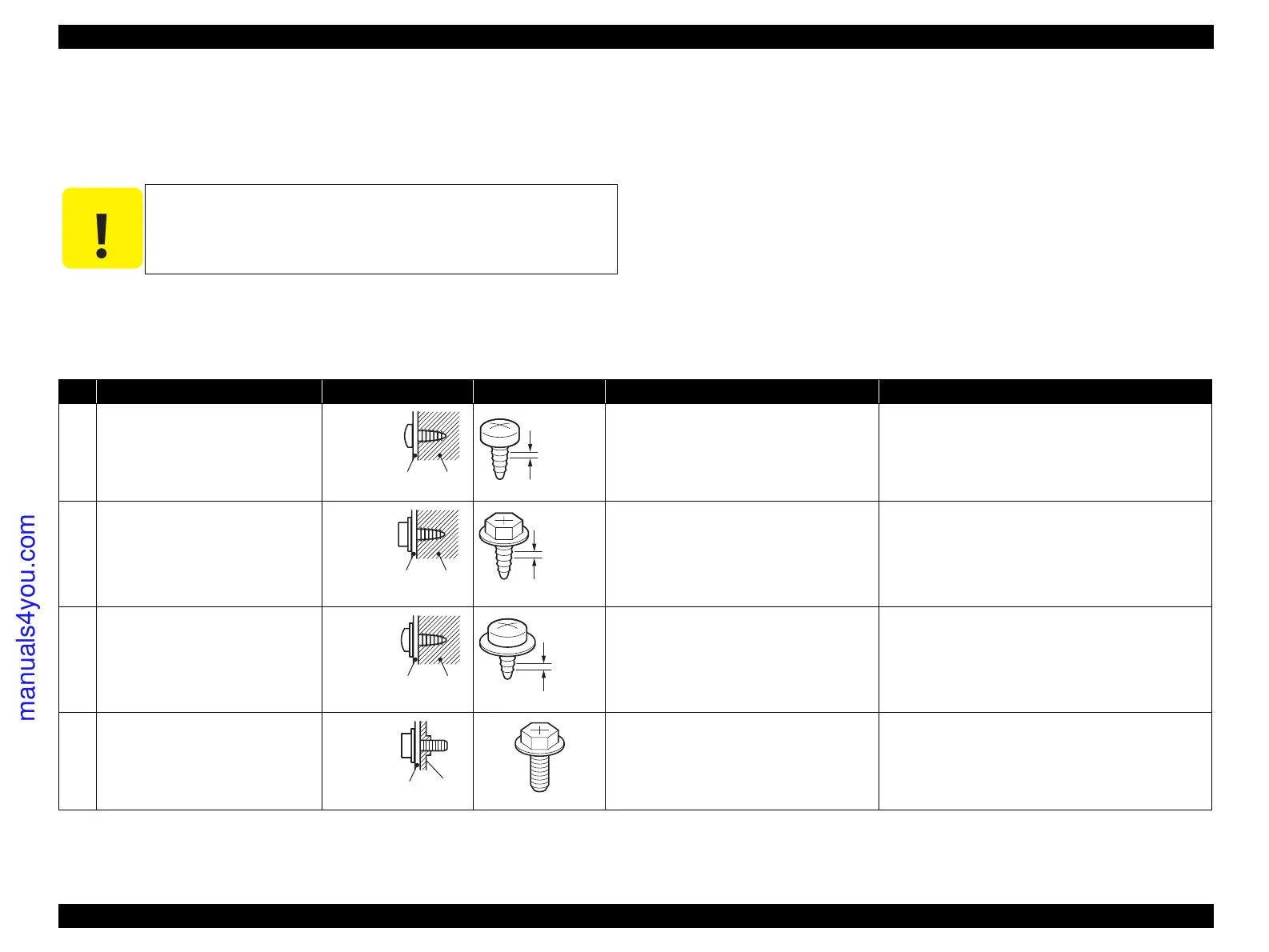

Table 4-1. List of screws (Printer)
No. Type Application Shape How to Recognize Screw Type Cautions
1 For plastic
Screw
Silver tapping
Plastic • Silver colored
• Screw threads are rougher than metal plate
TYPE
• Screw tip is fine.
This is a self-tapping screw. It threads the screw hole, so
take care not to screw it diagonally.
2 For plastic
Screw
Silver tapping with flange
Plastic • Silver colored
• With flange
• Screw threads are rougher than metal plate
TYPE
• Screw tip is fine.
This is a self-tapping screw. It threads the screw hole, so
take care not to screw it diagonally
3 For plastic
Screw
Silver tapping with washer
Plastic • Silver colored
• With washer
• Screw threads are rougher than metal plate
TYPE
• Screw tip is fine.
This is a self-tapping screw. It threads the screw hole, so
take care not to screw it diagonally
4 For metal plate Screw
Silver tapping with flange
Metal
plate
• Silver colored
• With flange
• Screw tip is slightly fine.
This is a self-tapping screw. It threads the screw hole, so
take care not to screw it diagonally
Part,
etc.
Plastic
Rough
Part,
etc.
Plastic
Rough
Part,
etc.
Plastic
Rough
Part,
etc.
Metal
plate
