Epson AcuLaser CX11 Service Manual

EPSON AcuLaser CX11/CX11F Revision B
DISASSEMBLY AND ASSEMBLY Printer 363
4.2.4.13 CLUTCH ASSY PRE REGI
REMOVAL
1. Remove FRAME ASSY-PH. (p352)
2. Remove MOTOR-PH. (p362)
3. Remove DRIVE ASSY-PH. (p365)
4. Disconnect the connector (P/J202) from CLUTCH ASSY REGI, and remove the
harness of CLUTCH ASSY REGI from the groove on FRAME ASSY-PH.
5. Remove the E-rings fastening CLUTCH ASSY PRE REGI to FRAME ASSY-PH.
6. Remove CLUTCH ASSY PRE REGI from FRAME ASSY-PH, and remove the
harness of CLUTCH ASSY PRE REGI from the hole on FRAME ASSY-PH.
REINSTALLATION
1. Insert the harness of CLUTCH ASSY PRE REGI into the hole on FRAME ASSY-
PH.
2. Match the hole position of CLUTCH ASSY PRE REGI with the D cut surface on
the shaft of ROLL ASSY-PRE REGI, and attach CLUTCH ASSY PRE REGI so
that the protrusion on FRAME ASSY-PH enters the concave portion on CLUTCH
ASSY PRE REGI.
3. Fasten CLUTCH ASSY PRE REGI to FRAME ASSY-PH with an E-ring.
4. Route the harness of CLUTCH ASSY PRE REGI in the groove on FRAME
ASSY-PH, and connect the connector (P/J202) to CLUTCH ASSY PRE REGI.
5. Attach DRIVE ASSY-PH. (p365)
6. Attach MOTOR-PH. (p362)
7. Attach FRAME ASSY-PH. (p352)

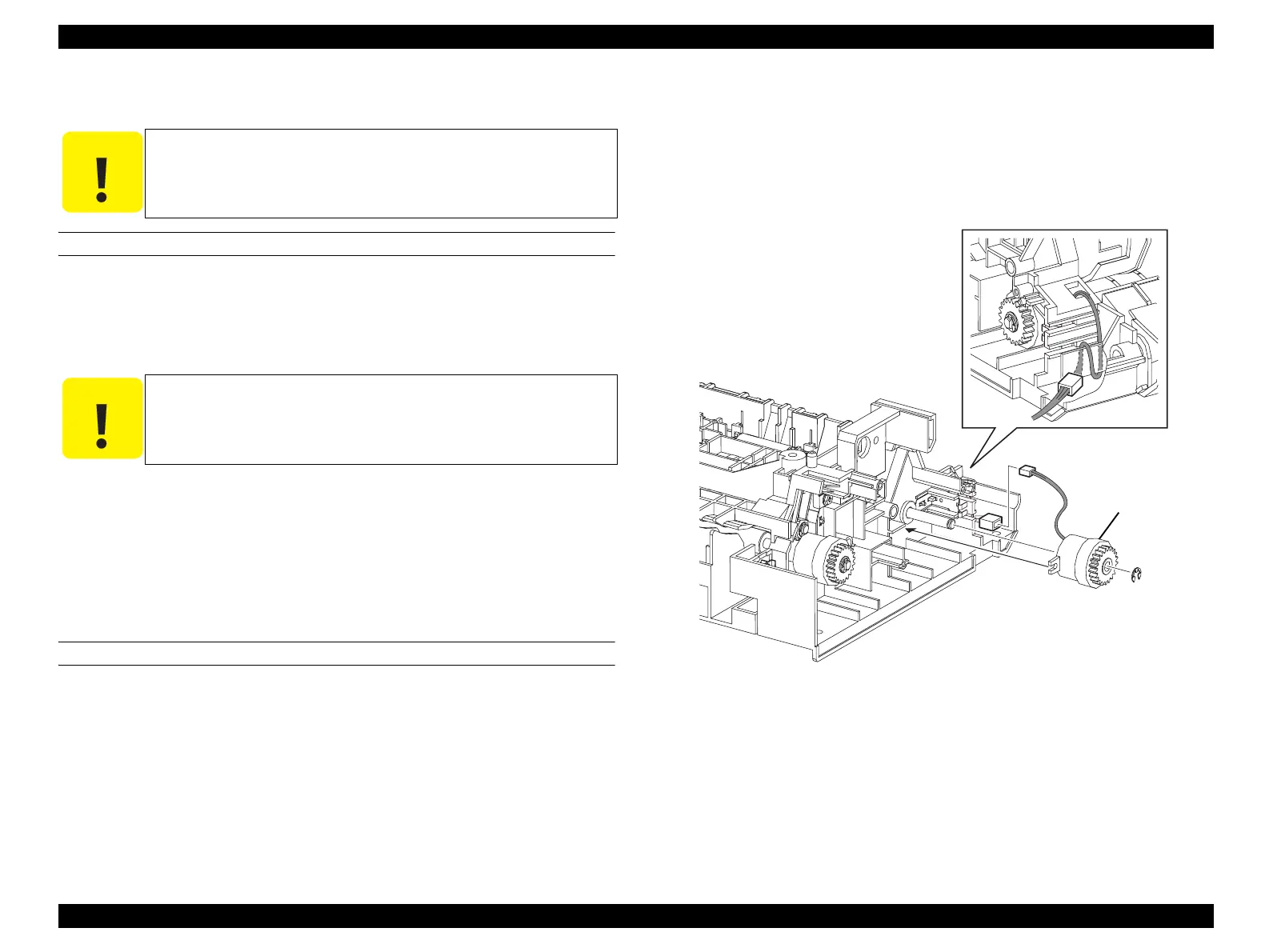

Figure 4-55. Removal of CLUTCH ASSY PRE REGI
C A U T I O N
Step numbers with [ ] in the figure indicate the step of
reinstallation.
C A U T I O N
When performing the following work, do not disconnect the relay
connectors.
Leg_Sec03_067FA
[4)]
4)
6)
5)
