Epson AcuLaser CX11 Service Manual

EPSON AcuLaser CX11/CX11F Revision B
OPERATING PRINCIPLES Printer Section Operating Principle 85
2.2.1.2 Print Process Diagram

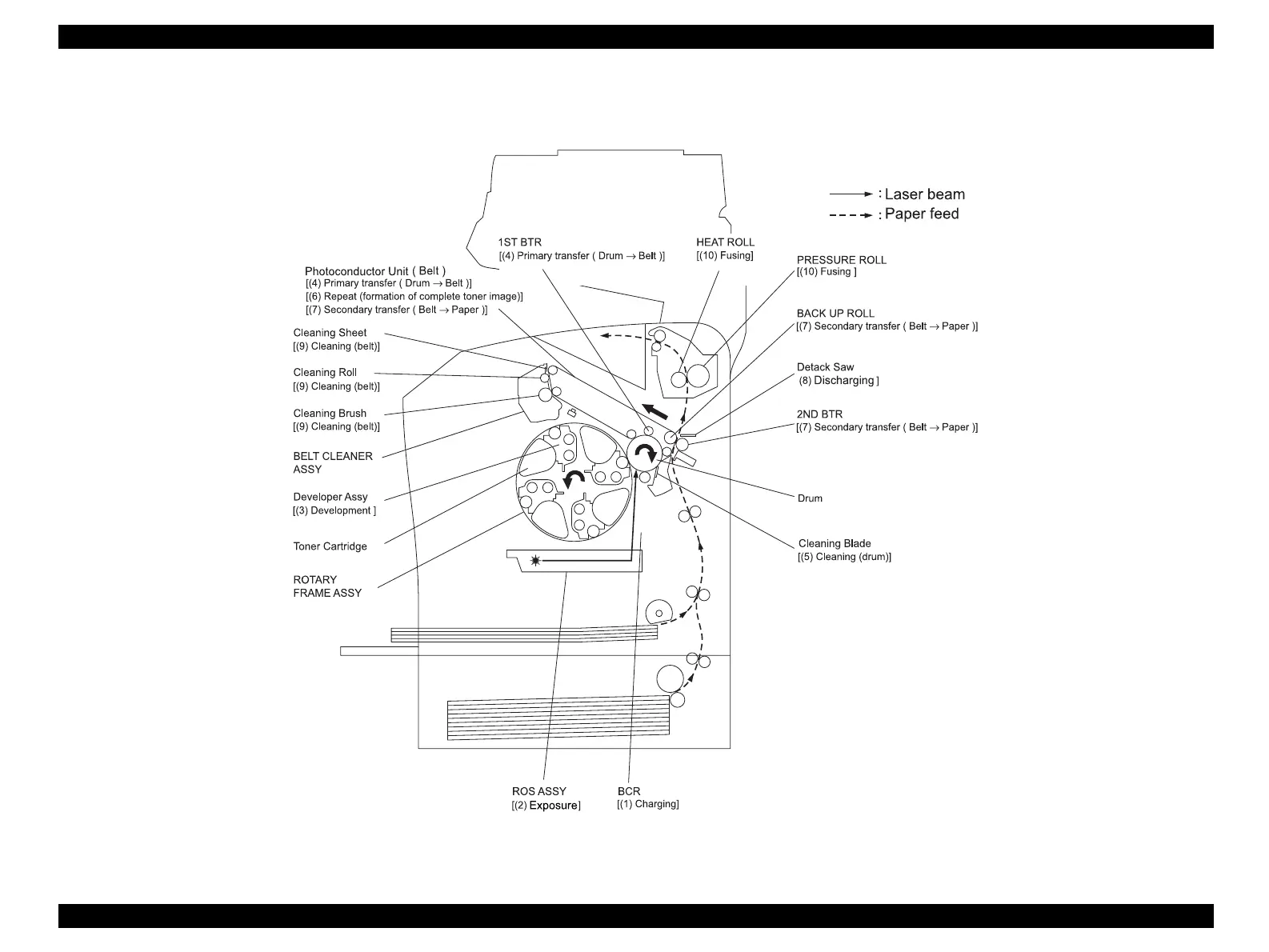

The diagram below illustrates the entire print process.
Figure 2-5. Total Print Process Schematic Diagram
Leg_06_002RA
