EPSON AcuLaser CX11/CX11F Revision B
DISASSEMBLY AND ASSEMBLY Printer 474
4.2.12.28 SENSOR NO PAPER
REMOVAL
1. Remove 500 PAPER CASSETTE ASSY. (p442)
2. Remove COVER LEFT 500. (p449)
3. Remove CLUTCH ASSY FEED. (p457)
4. Remove DRIVE ASSY FEED. (p454)
5. Remove HOUSING ASSY FEED. (p472)
6. Remove the 2 screws (silver, tapping, 8 mm) fastening COVER FEED to
HOUSING ASSY FEED.
7. Remove COVER FEED from HOUSING ASSY FEED.
8. Unhook the 3 hooks fastening SENSOR NO PAPER to HOUSING ASSY FEED,
and remove SENSOR NO PAPER.
9. Disconnect connector (P/J119) from SENSOR NO PAPER.
REINSTALLATION
1. Connect connector (P/J119) to SENSOR NO PAPER.
2. Match the hook on SENSOR NO PAPER with the attachment position while
inserting ACTUATOR NO PAPER CST into the sensor on SENSOR NO PAPER,
and attach to HOUSING ASSY FEED.
3. Attach COVER FEED to HOUSING ASSY FEED.
4. Fasten COVER FEED to HOUSING ASSY FEED with the 2 screws (silver,
tapping, 8 mm).
5. Attach HOUSING ASSY FEED. (p472)
6. Attach DRIVE ASSY FEED. (p454)
7. Attach CLUTCH ASSY FEED. (p457)
8. Attach COVER LEFT 500. (p449)
9. Attach 500 PAPER CASSETTE ASSY. (p442)

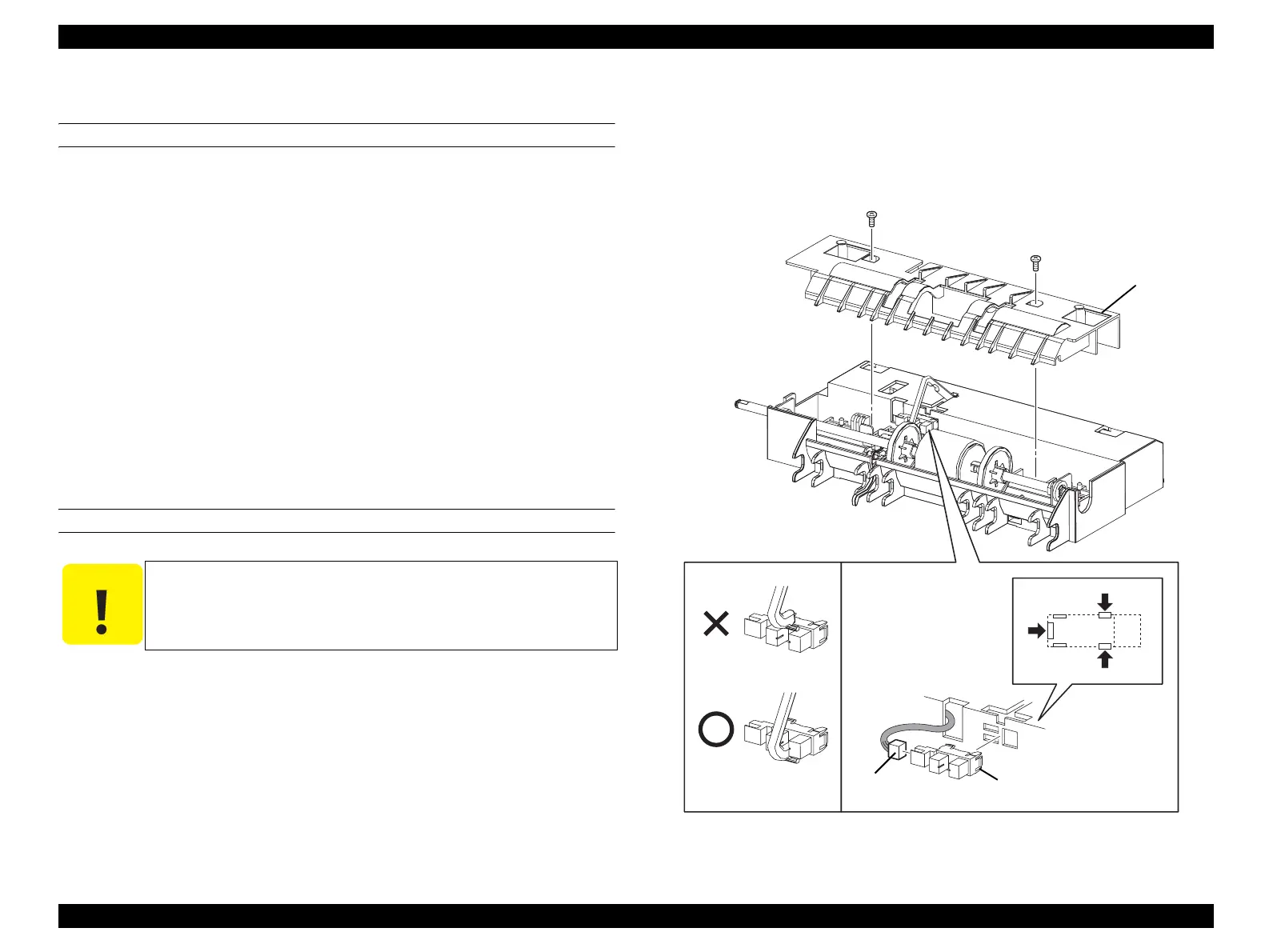

Figure 4-148. Removal of SENSOR NO PAPER
C A U T I O N
When performing the following work, pay attention to the
positional relationship between SENSOR NO PAPER and
ACTUATOR NO PAPER CST.
Leg_Sec03_033FA
CAUTION
8)-1
6)
6)
7)
8)-2
9)
