Epson AcuLaser CX11 Service Manual

EPSON AcuLaser CX11/CX11F Revision B
OPERATING PRINCIPLES Printer Section Operating Principle 100
2.2.3.5 MOTOR ASSY FSR

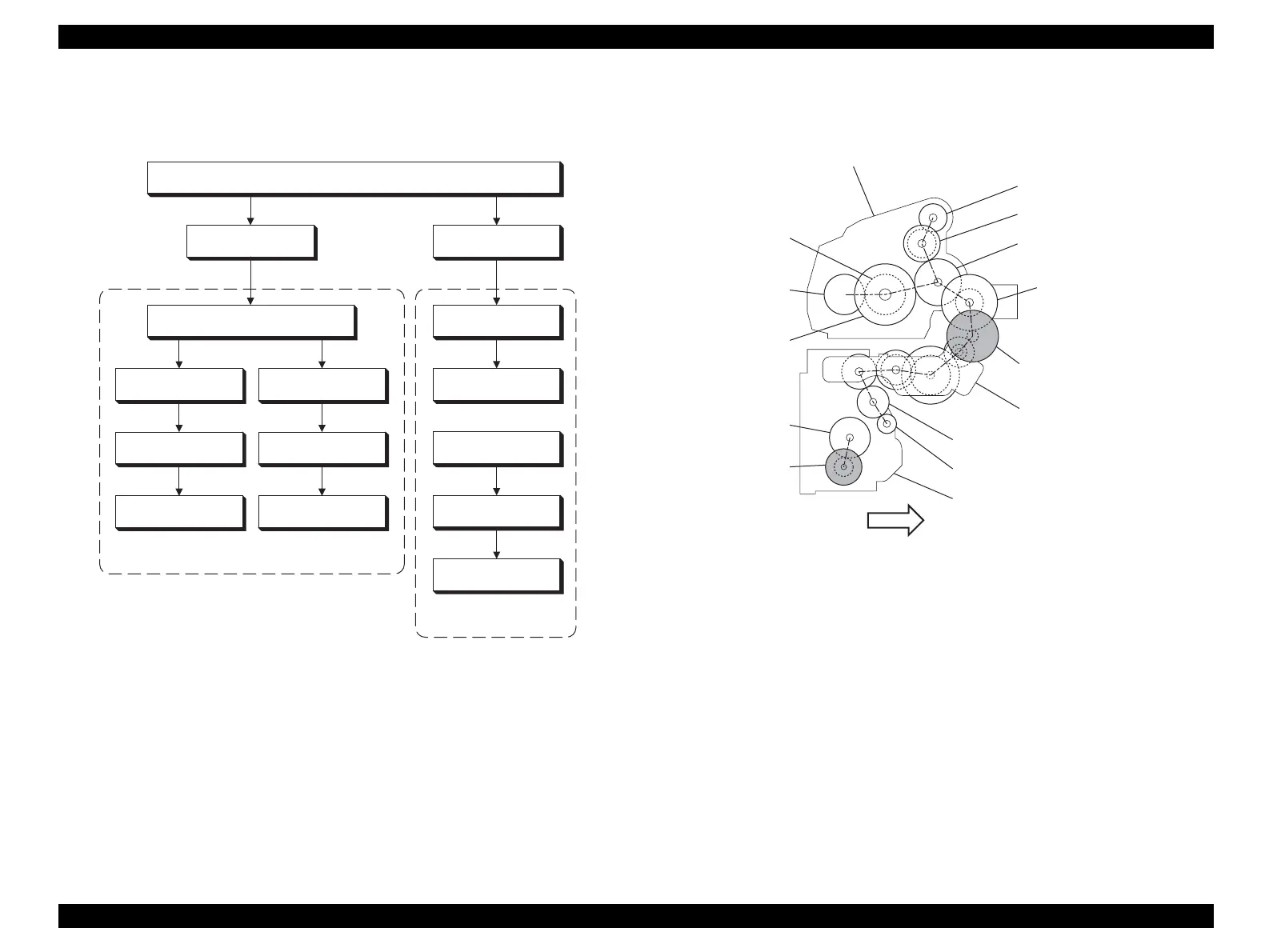

Rotation of MOTOR ASSY FSR is transmitted as follows:
Figure 2-30. Drive Transmission Flow
Figure 2-31. Diagram of Drive Transmission Path
MOTOR ASSY FSR (Fuser Motor)
GEAR-IDLER EXIT
GEAR EXIT
GEAR HR
ROLL ASSY FUSER
FUSER ASSY
TRANSFER ASSY
EXIT ROLLER BELT ASSY
GEAR 2ND
GEAR-IDLER GEAR-27
2ND BTR ASSY
MOT ASSY MICRO
DRIVE ASSY BTR
GEAR-28
CAM ASSY-2ND
Leg_Sec06_039EB
GEAR EXIT
GEAR-IDLER EXIT
GEAR-IDLER
GEAR-27
GEAR 2ND
FUSER ASSY
DRIVE ASSY BTR
TRANSFER ASSY
2ND BTR ASSY
MOTOR ASSY FSR
BELT ASSY
ROLL ASSY FUSER
GEAR HR
GEAR-28
MOT ASSY MICRO
FRONT
Leg_Sec06_043EC
