EPSON AcuLaser CX11/CX11F Revision B
DISASSEMBLY AND ASSEMBLY ADF Section 519
4.4.3.6 TURNING ROLLER
REMOVAL
1. Remove the Scanner. (p306)
2. Remove the ADF Unit. (p481)
3. Remove the ADF COVER R. (p492)
4. Remove the PAPER GUIDE ASSY. (p526)
5. Remove the ADF COVER C. (p496)
6. Remove the ADF BASE ASSY. (p498)
7. Remove the MOTOR. (p509)
8. Remove the GUIDE FRONT ASSY. (p511)
9. Remove the PAPER GUIDE R. (p515)
10. Remove the FRAME COVER ASSY. (p516)
11. Slide the TURNING ROLLER rightward to pull out its left shaft, and then pull out
its right shaft from the ADF FRAME UNIT to remove the TURNING ROLLER.
REINSTALLATION
1. First insert the one end of the TURNING ROLLER shaft with longer cut surface
into the shaft hole of the ADF FRAME UNIT, and then insert the other end into
the shaft hole of the ADF FRAME UNIT.
2. Attach the FRAME COVER ASSY. (p516)
3. Attach the PAPER GUIDE R. (p515)
4. Attach the GUIDE FRONT ASSY. (p511)
5. Attach the MOTOR. (p509)
6. Attach the ADF BASE ASSY. (p498)
7. Attach the ADF COVER C. (p496)
8. Attach the PAPER GUIDE ASSY. (p526)
9. Attach the ADF COVER R. (p492)
10. Attach the ADF Unit. (p481)
11. Install the Scanner. (p306)

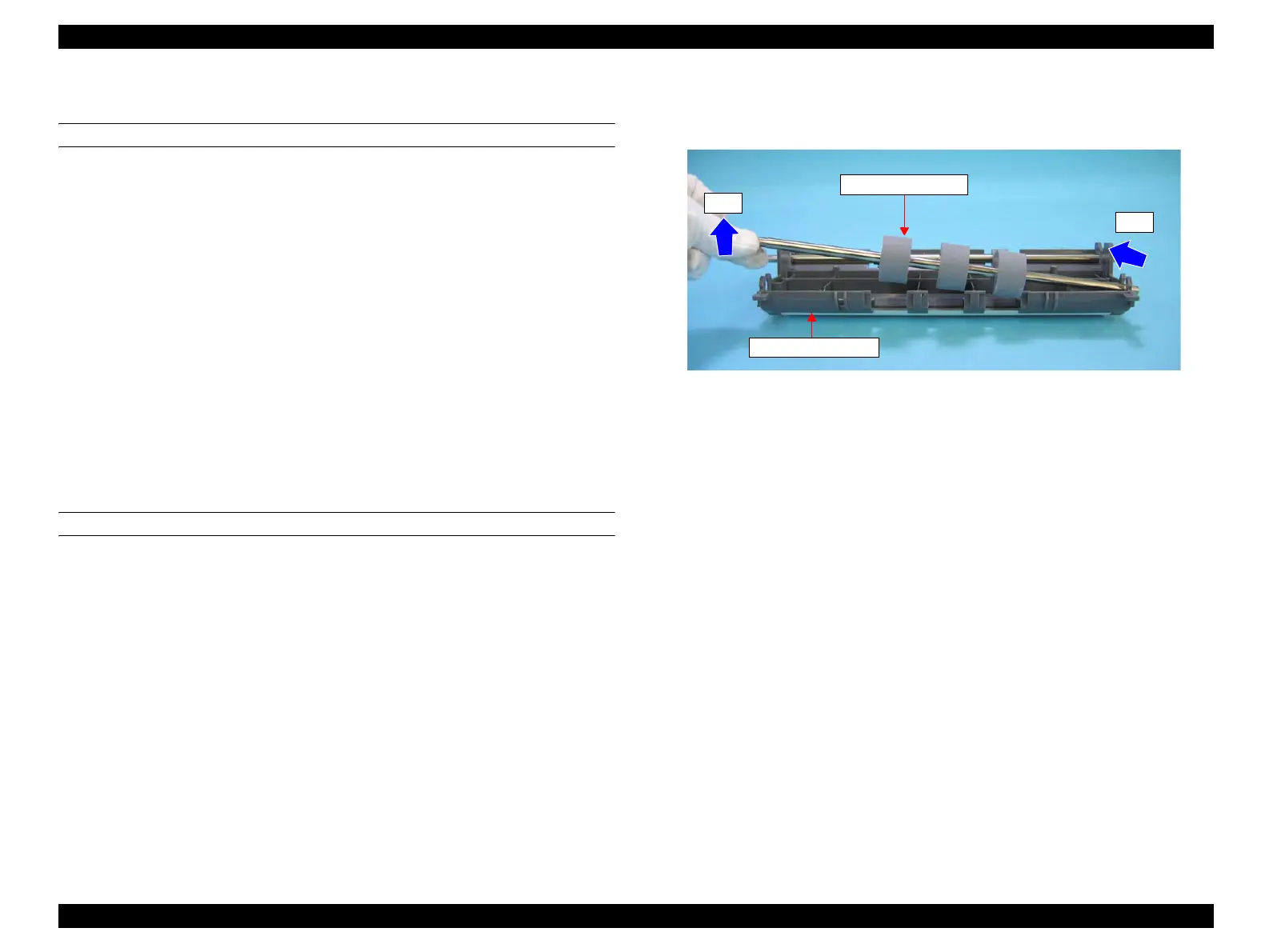

Figure 4-211. Removal of TURNING ROLLER
TURNING ROLLER
ADF FRAME UNIT
11)-2
11)-1
