Epson AcuLaser CX11 Service Manual

EPSON AcuLaser CX11/CX11F Revision B
DISASSEMBLY AND ASSEMBLY ADF Section 515
4.4.3.3 PAPER GUIDE R
REMOVAL
1. Remove the Scanner. (p306)
2. Remove the ADF Unit. (p481)
3. Remove the ADF COVER R. (p492)
4. Remove the PAPER GUIDE ASSY. (p526)
5. Remove the ADF COVER C. (p496)
6. Remove the ADF BASE ASSY. (p498)
7. Remove the MOTOR. (p509)
8. Remove the GUIDE FRONT ASSY. (p511)
9. Remove the two screws (M3 x 8 mm, P-type, A-head) that secure the PAPER
GUIDE R to the ADF FRAME UNIT, and remove the PAPER GUIDE R from the
ADF FRAME UNIT.
REINSTALLATION
1. Secure the PAPER GUIDE R to the ADF FRAME UNIT with the two screws (M3
x 8 mm, P-type, A-head).
2. Attach the GUIDE FRONT ASSY. (p511)
3. Attach the MOTOR. (p509)
4. Attach the ADF BASE ASSY. (p498)
5. Attach the ADF COVER C. (p496)
6. Attach the PAPER GUIDE ASSY. (p526)
7. Attach the ADF COVER R. (p492)
8. Attach the ADF Unit. (p481)
9. Install the Scanner. (p306)

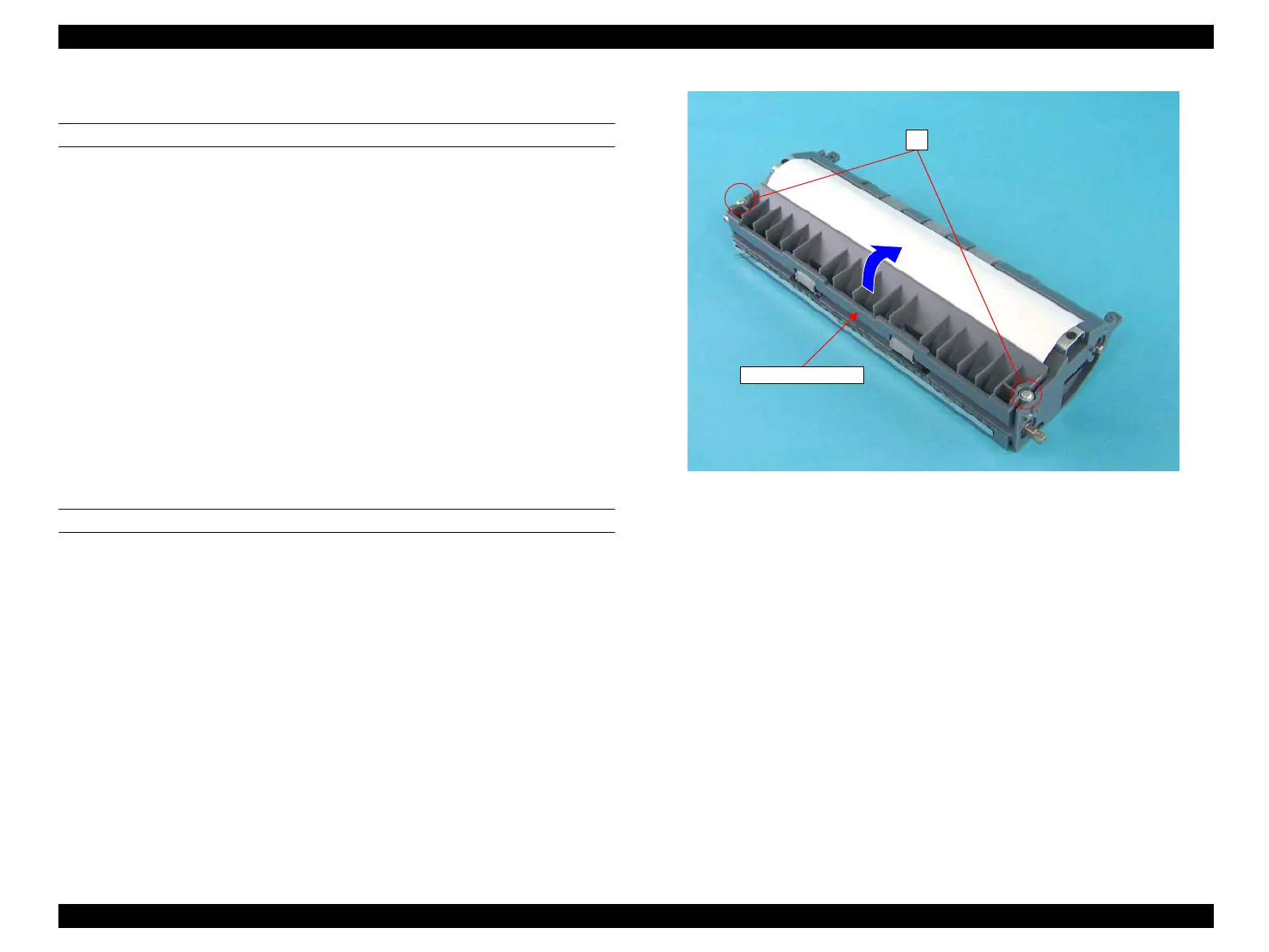

Figure 4-205. Removal of the PAPER GUIDE R
9)
PAPER GUIDE R
