APPENDIX Printer System Electrical Connection 581
6. HIGH VOLTAGE

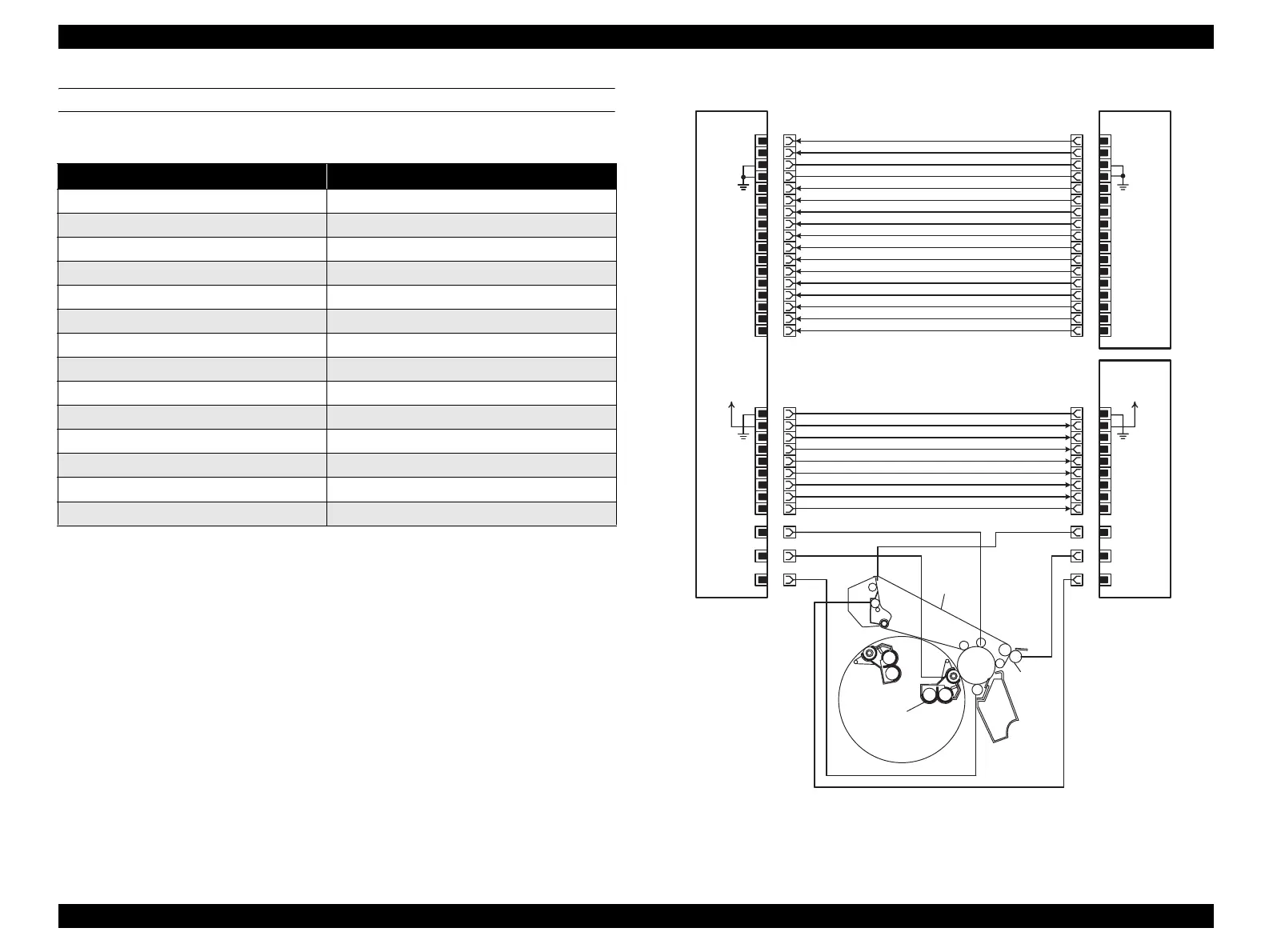

Figure 7-13. HIGH VOLTAGE Connection and Wiring Diagram
Name of Signal Line Remarks
1st BTR CONT
1st BTR Bias voltage control signal
IBT CLEANER H/L
IBT CLEANER Bias voltage control signal
BCR CONT
BCR Bias voltage control signal
DE-TONER CONT
DE-TONER Bias voltage control signal
DEVE BIAS ON
DEVE Bias ON/OFF signal
DEVE BIAS CONT
DEVE Bias voltage control signal
IBT CLEANER ON
Belt Cleaning Brush Bias ON/OFF signal
1st BTR REV ON
1st BTR DC Bias control signal
2nd BTR REV ON
2nd BTR DC Bias control signal
1st BTR ON
1st BTR Bias ON/OFF signal
2nd BTR ON
2nd BTR Bias ON/OFF signal
DEVE BIAS CLK
DEVE AC Bias cycle control signal
2nd BTR CONT
2nd BTR Bias voltage control signal
BCR CLK
BCR Bias cycle control signal
LV/HVPS
12.2.3
12
13
14
15
16
17
18
19
20
21
P/J500
22
11
10
9
8
7
6
6
P/J515
1
2
3
4
5
7
8
9
D
1
C
1
A
1
P/J401
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
P/J516
9
8
7
6
5
4
3
2
1
H
1
F
1
G
1
PWBA MCU
PL12.2.1
PWBA HVPS
PL12.1.9
1st BTR CONT
IBT CLEANER H/L
SG
SG
BCR CONT
DE-TONER CONT
DEVE BIAS ON
DEVE BIAS CONT
IBT CLEANER ON
1st BTR REV ON
2nd BTR REV ON
1st BTR ON
2nd BTR ON
DEVE BIAS CLK
2nd BTR CONT
BCR CLK
SG
I/L +24VDC
CLEANER H/L
DE-TONER CONT
IBT CLEANER ON
2nd BTR REV ON
2nd BTR ON
2nd BTR CONT
DE-TONER
CONDUCTOR
UNIT
PL7.1.1
2ND BTR
ASSY
PL6.1.12
HOUSING ASSY-DEVE
PL9.2.5㨪8
1st BTR
IBT CLEANER
DEVE
BCR
INTERLOCK
+24VDC
INTERLOCK
+24VDC
D
C
A
H
F
G
2nd
BTR
Leg_Sec007_007FB
