DISASSEMBLY AND ASSEMBLY Printer 453
4.2.12.11 PWBA MOT
REMOVAL
1. Remove COVER LEFT 500. (p449)
2. Disconnect connector (P/J440) and connector (P/J446) from PWBA MOT.
3. Remove the 3 screws (silver, with flange, 6 mm) fastening PWBA MOT to 500
PAPER FEEDER ASSY.
4. Remove PWBA MOT from 500 PAPER FEEDER ASSY.
REINSTALLATION
1. Match the notch at the bottom right of PWBA MOT with the protrusion on 500
PAPER FEEDER ASSY to attach.
2. Fasten PWBA MOT to 500 PAPER FEEDER ASSY with the 3 screws (silver,
with flange, 6 mm).
3. Connect connector (P/J440) and connector (P/J446) to PWBA MOT.
4. Attach COVER LEFT 500. (p449)

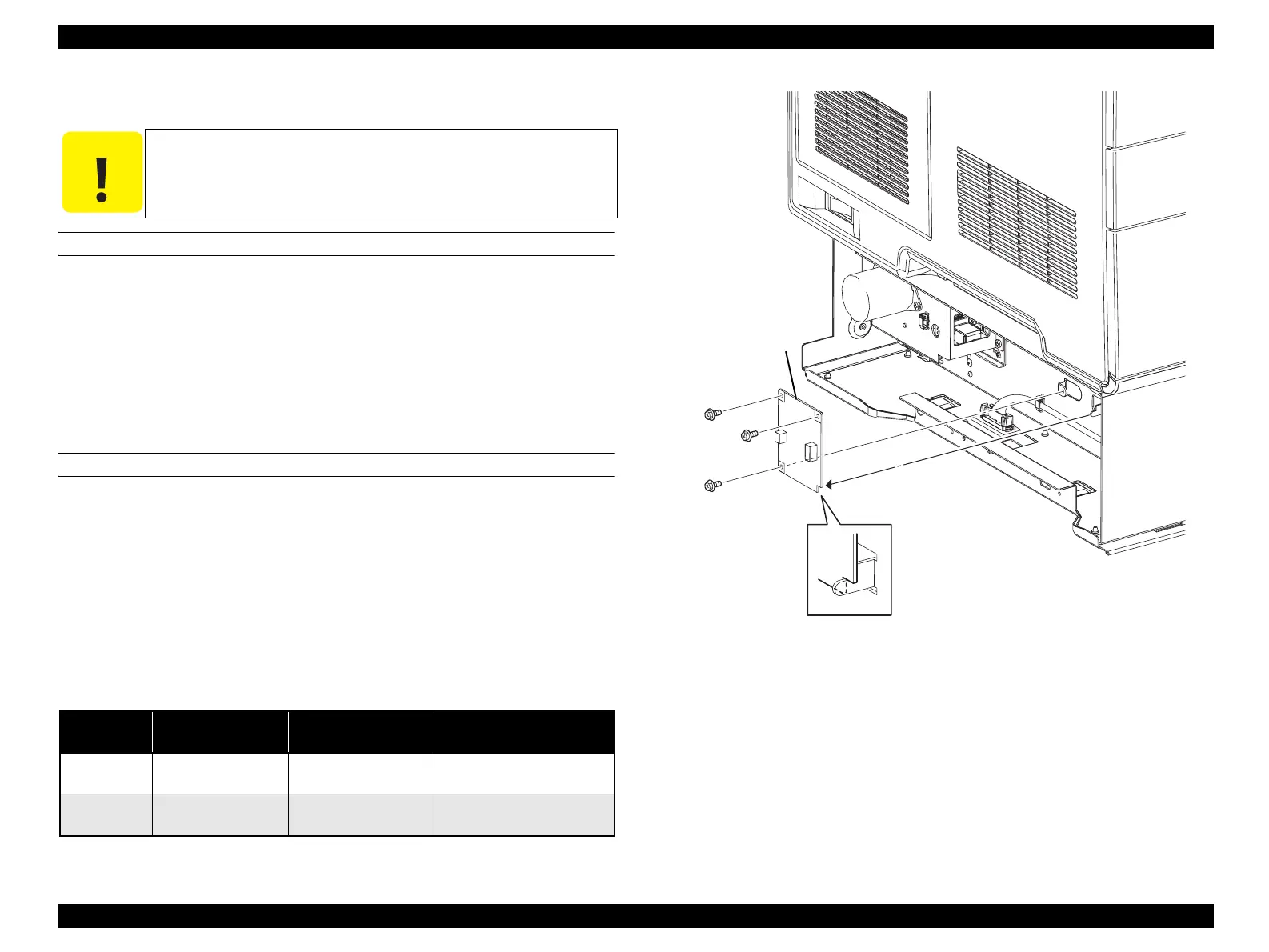

Figure 4-130. Removal of PWBA MOT
C A U T I O N
Avoid staticky places such as on a carpet especially when removing
or inserting a Board. Before starting work with the Board, make
sure to touch metallic portion of the printer connected to the earth
to let your body come out free of static electricity.
Table 4-20. Symptoms when the connector is loose
Connector
No.
Panel Indication Symptom
Error Caused by Connector
Disconnection
CN1
Ready → Paper Jam
LC, G
Paper Jam
---
CN2
Ready → Paper Jam
LC, G
Printing is not possible. ---
Leg_Sec03_029EA
