EPSON AcuLaser CX11/CX11F Revision B
DISASSEMBLY AND ASSEMBLY Printer 358
4.2.4.8 ROLL ASSY-PRE REGI
REMOVAL
1. Remove FRAME ASSY-PH. (p352)
2. Remove MOTOR-PH. (p362)
3. Remove DRIVE ASSY-PH. (p365)
4. Remove CLUTCH ASSY PRE REGI. (p363)
5. Remove the E-rings fastening the right side of the shaft on ROLL ASSY-PRE
REGI from FRAME ASSY-PH.
6. Remove the left and right BEARING METALs fastening ROLL ASSY-PRE
REGI from FRAME ASSY-PH.
7. Open CHUTE ASSY-REAR.
8. Temporarily slide ROLL ASSY-PRE REGI to the left, draw out the shaft on
ROLL ASSY-PRE REGI from the right-side bearing on FRAME ASSY-PH, and
remove ROLL ASSY-PRE REGI.
REINSTALLATION
1. Insert the shaft left side on ROLL ASSY-PRE REGI into the left-side bearing on
FRAME ASSY-PH, and slide ROLL ASSY-PRE REGI to the right to attach.
2. Close CHUTE ASSY-REAR.
3. Match the double D cut surface of BEARING METAL with the left and right
bearings of FRAME ASSY-PH, attach BEARING METAL, and fasten ROLL
ASSY-PRE REGI.
4. Fasten the shaft right side of ROLL ASSY-PRE REGI with an E-ring.
5. Attach CLUTCH ASSY PRE REGI. (p363)
6. Attach DRIVE ASSY-PH. (p365)
7. Attach MOTOR-PH. (p362)
8. Attach FRAME ASSY-PH. (p352)

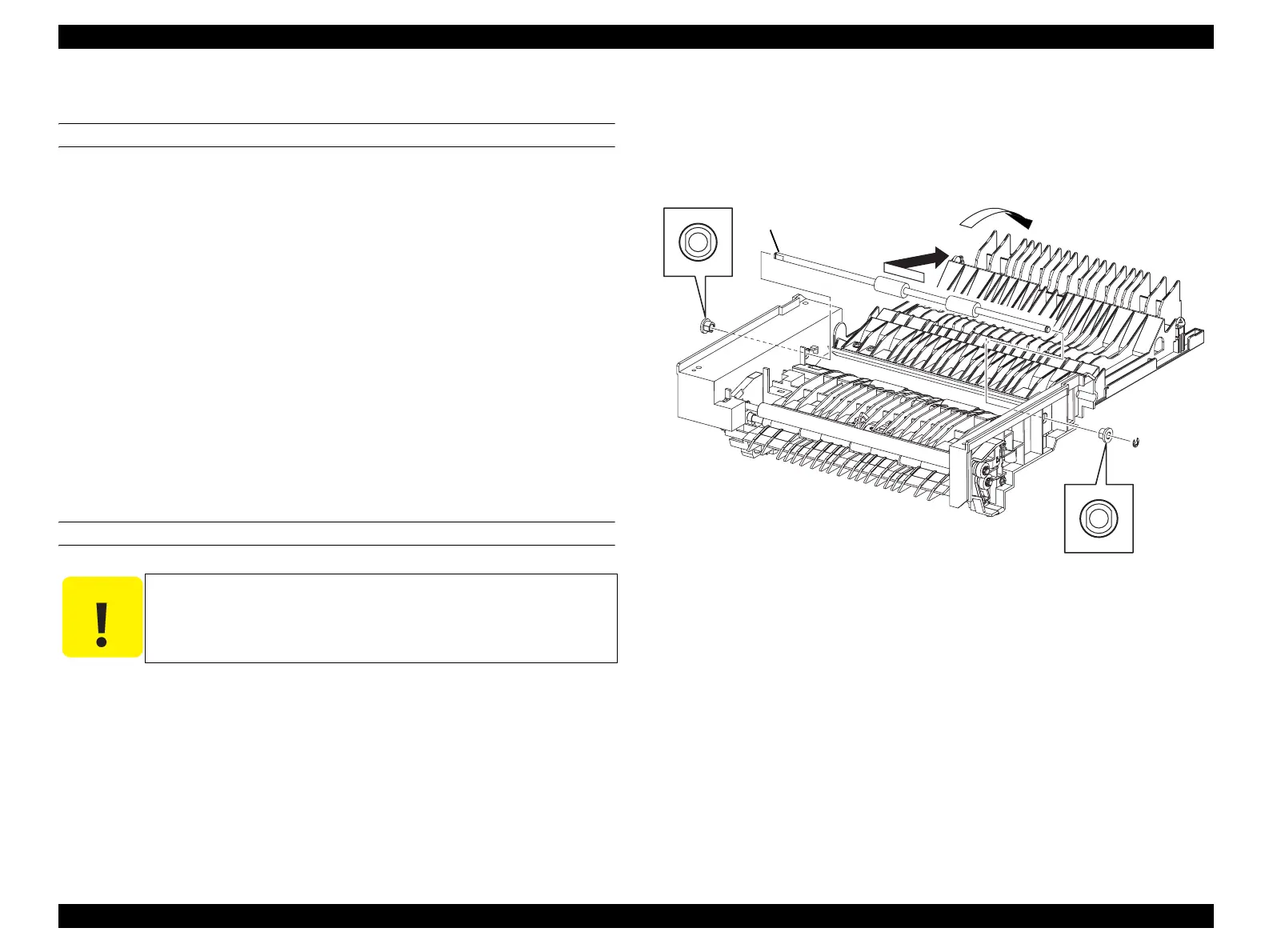

Figure 4-50. Removal of ROLL ASSY-PRE REGI
C A U T I O N
Attach ROLL ASSY-PRE REGI to FRAME ASSY-PH so that the
D cut surface of the shaft comes to the left side.
Leg_Sec03_061FB
