DISASSEMBLY AND ASSEMBLY Printer 427
4.2.10.7 MOT ASSY MICRO
REMOVAL
1. Remove COVER ASSY LH. (p321)
2. Unclamp the clamp fastening the harness on MOT ASSY MICRO.
3. Disconnect connector (P/J600) from MOT ASSY MICRO.
4. Remove the 2 screws (silver, with flange, 4mm) fastening MOT ASSY MICRO to
the main unit.
5. Remove MOT ASSY MICRO from the main unit.
REINSTALLATION
1. Attach MOT ASSY MICRO to the main unit with the harness on MOT ASSY
MICRO facing the rear side.
2. Fasten MOT ASSY MICRO to the main unit with the 2 screws (silver, with flange,
4mm).
3. Connect connector (P/J600) to MOT ASSY MICRO.
4. Fasten the harness on MOT ASSY MICRO with the clamp.
5. Attach COVER ASSY LH. (p321)

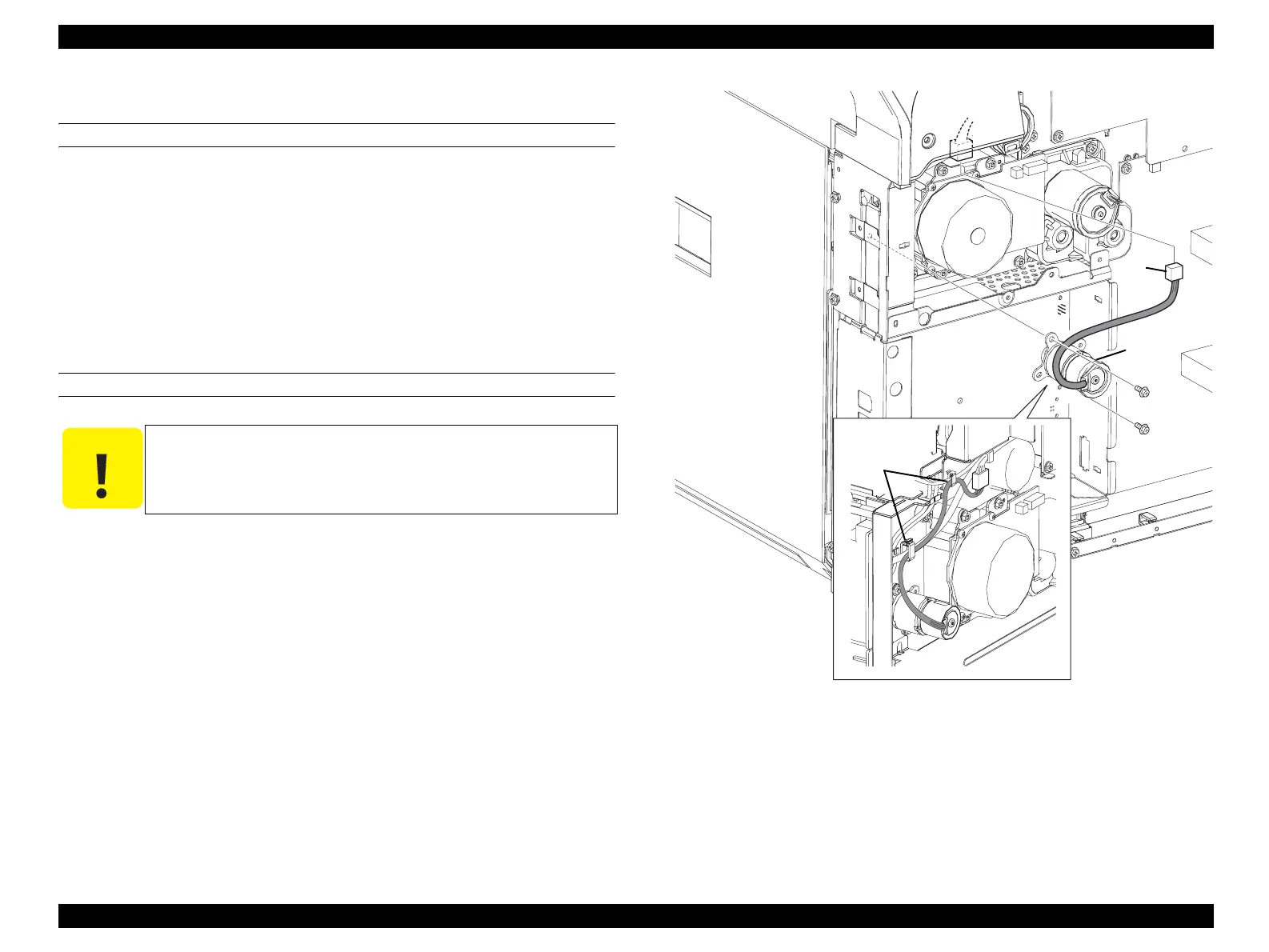

Figure 4-109. Removal of MOT ASSY MICRO
C A U T I O N
When performing the following work, pay attention to the
attachment direction of MOT ASSY MICRO.
Leg_Sec03_104RB
2)
4)
4)
5)
3)
