EPSON AcuLaser CX11/CX11F Revision B
36
1.2.2.4 Image performance
PRINTING START POSITION ACCURACY

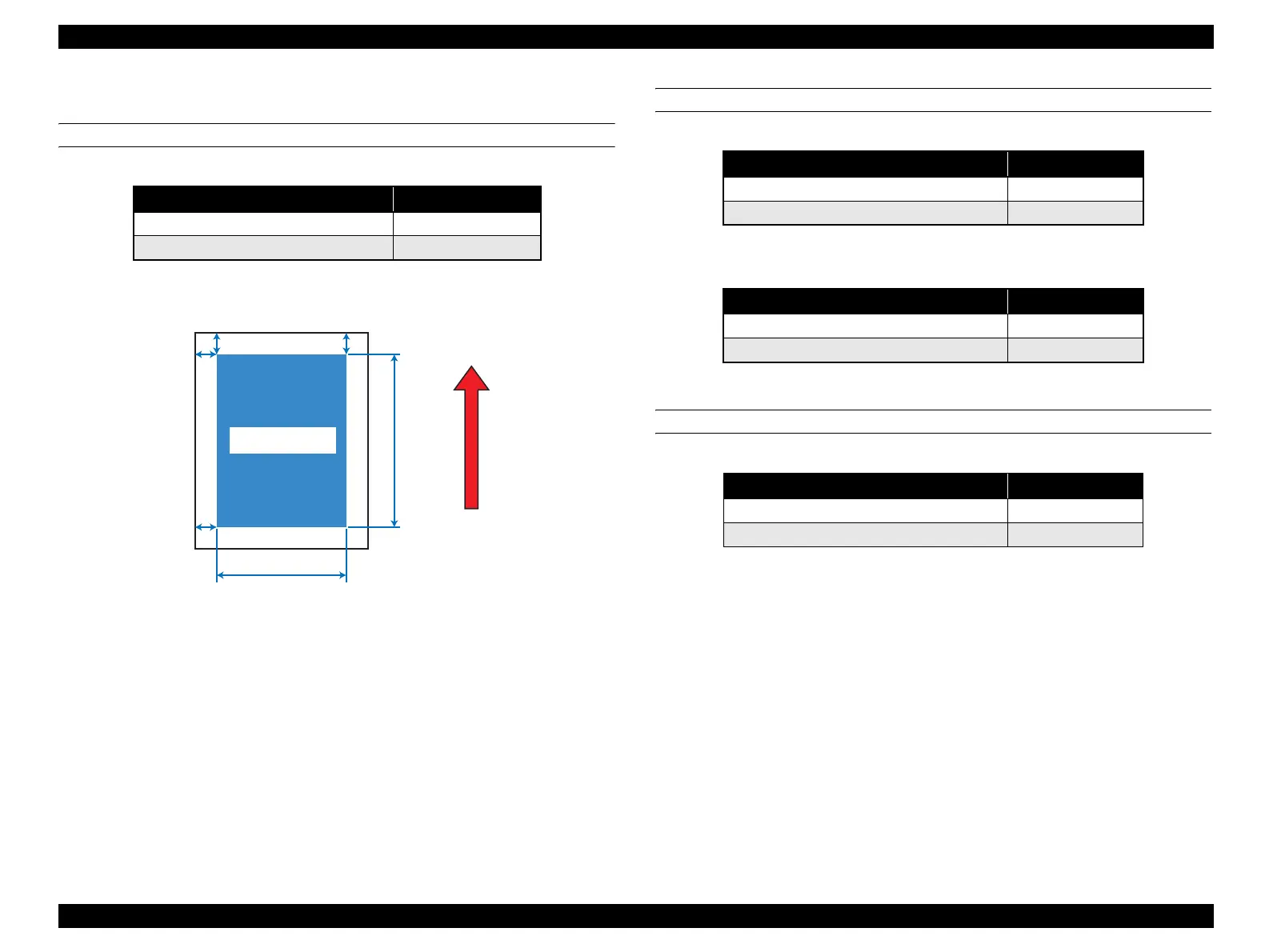

Figure 1-5. Printing start position accuracy
SKEW
HEIGHT OF CURL OF OUTPUT PAPER
Note : Measurement conditions
1. Print out 20 sheets of paper continuously in order to stabilize the fuser unit.
2. After the 20 pages are printed out, pick out the 21st to 30th pages as samples, and
wait for 5 minutes before measuring them.
3. Place those papers on a flat surface with their curls facing upward, measure the length
between the flat surface and the tip of the curl of the bottommost paper, similarly
measure the other three corners, and define the largest value of four corners as the
curl value.
Table 1-20. Printing start position accuracy
A4 Simplex printing
Main scanning direction Reference point (c) ± 2.5mm
Sub-scanning direction Reference point (a) ± 2.0mm
c
a
b
f
e
d
Feed direction
Printable area
Table 1-21. Skew
A4 Simplex printing
Main scanning direction (| a-b |) 1.2mm
Sub-scanning direction (| c-d |) 0.8mm
Table 1-22. Length standard of measurement
A4 Simplex printing
Main scanning direction (e) 190mm
Sub scanning direction (f) 114.5mm
Table 1-23. Height of Curl of Output Paper
Paper Type Curl height
Normal paper, plain paper 15mm or less
Other special papers No regulation
