Epson AcuLaser CX11 Service Manual

EPSON AcuLaser CX11/CX11F Revision B
TROUBLESHOOTING Printer 270

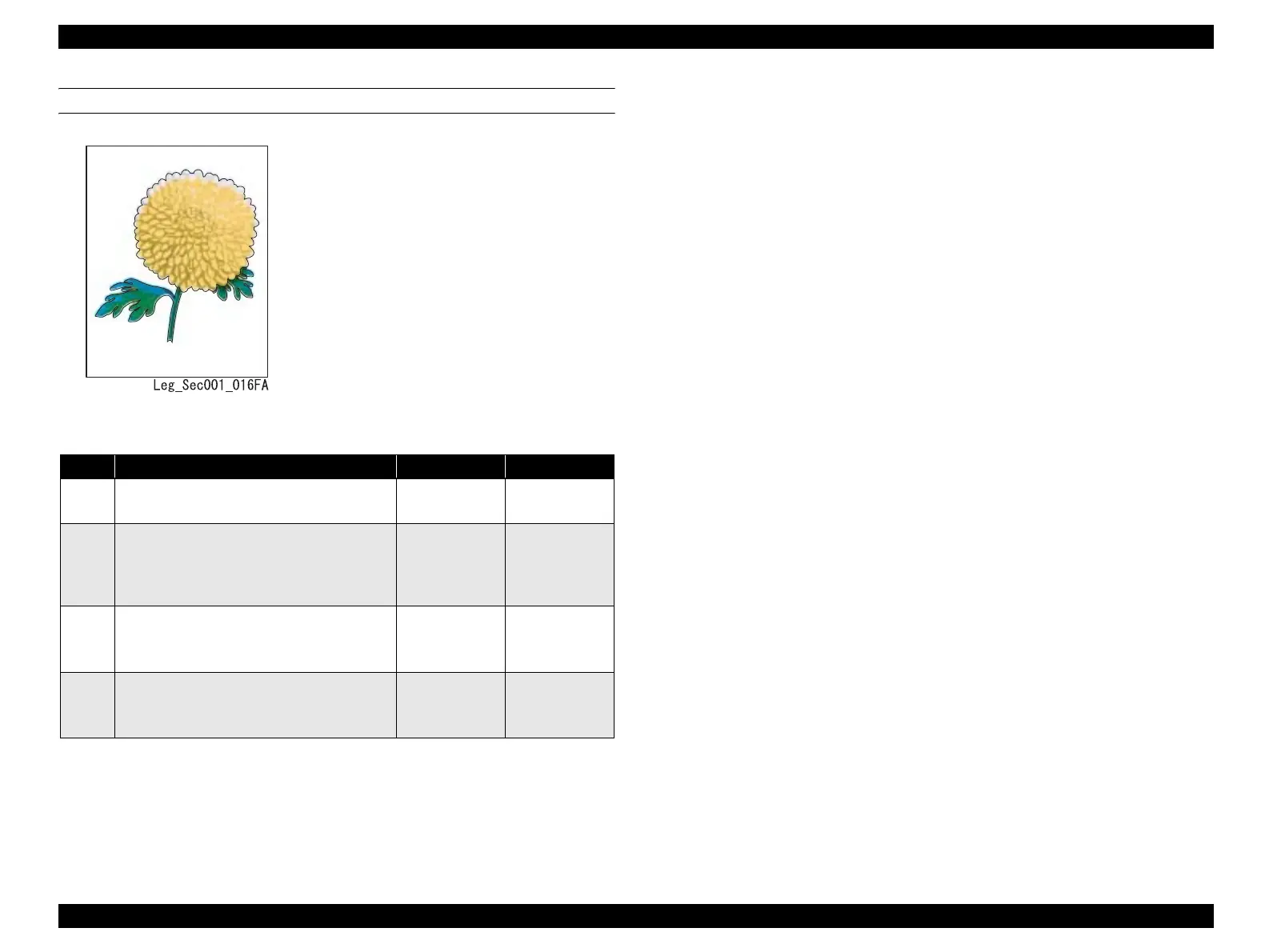

FIP-P15 Color Shift
Before starting troubleshooting, inspect the feed path of the printer paper. Check the
paper feed path for metal staples, paper clips, paper scraps, and other foreign matter.
 Problems
The printed Yellow or Black image does not
accurately overlap the Cyan or Magenta
image, and is out of position.
 ESS and possible parts that caused the error
 SENSOR TR-0
 Photoconductor Unit
 MOT ASSY P/R
 PWBA ESS
Step Check Yes No
1
Check of SENSOR TR-0 attachment
Is SENSOR TR-0 attached correctly?
Go to Step [2]. Re-attach, and go
to step [3].
2
Check after replacement of Photoconductor
Unit
Replace Photoconductor Unit.
Is the image printed normally?
End of procedure Go to Step [3].
3
Check after replacement of MOT ASSY P/R
Replace MOT ASSY P/R. (p.426)
Is the image printed normally?
End of procedure Go to Step [4].
4
Check after replacement of PWBA ESS
Replace PWBA ESS. (p.437)
Is the image printed normally?
End of procedure Replace “ESS and
possible parts that
caused the error”.
