Epson AcuLaser CX11 Service Manual

EPSON AcuLaser CX11/CX11F Revision B
TROUBLESHOOTING Printer 271
FIP-P16 Uneven Density/Thin-Spot
Before starting troubleshooting, inspect the feed path of the printer paper. Check the
paper feed path for metal staples, paper clips, paper scraps, and other foreign matter.

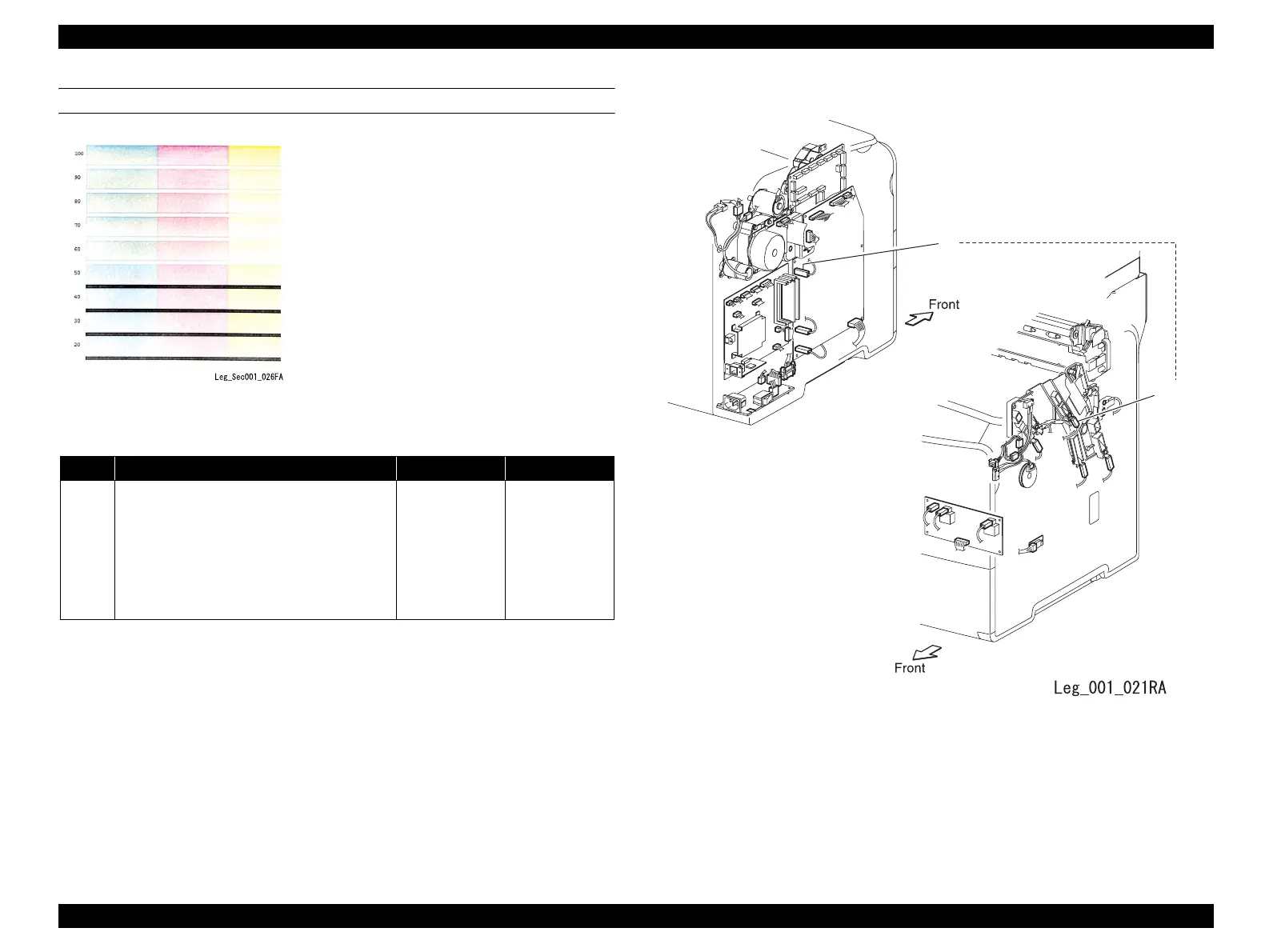

 Connecting location of the connectors
 Problems
Uneven density/thin-spots appear on entire
surface. This occurs due to disconnection of
connector (D) from LV/HVPS.
 ESS and possible parts that caused the error
 WIRE ASSY BTR
 LV/HVPS
Step Check Yes No
1
Check the connectors for LV/HVPS.
Make sure that the connector (P/J504) on LV/
HVPS and the connector (P/J512) on 1st BTR
are connected properly.
Print the problem image. Or, execute the test
print.
Was the trouble fixed?
End of procedure Replace “ESS and
possible parts that
caused the error”.
D
P/J512
(1BTR)
