EPSON AcuLaser CX11/CX11F Revision B
DISASSEMBLY AND ASSEMBLY ADF Section 520
4.4.3.7 COVER SENSOR
REMOVAL
1. Remove the Scanner. (p306)
2. Remove the ADF Unit. (p481)
3. Remove the ADF COVER R. (p492)
4. Remove the PAPER GUIDE ASSY. (p526)
5. Remove the ADF COVER C. (p496)
6. Remove the ADF BASE ASSY. (p498)
7. Remove the MOTOR. (p509)
8. Remove the screw (M3 x 6 mm, S-type, A-head) that secures the grounding wire
of the CABLE to the MOTOR FIX PLATE, and remove the grounding wire of the
CABLE.
9. Remove the three screws (M3 x 6 mm, S-type, A-head) that secure the MOTOR
FIX PLATE to the FIX PLATE R, and remove the two LOCKING CABLE
CLIPs, and then remove the MOTOR FIX PLATE from the ADF BASE ASSY.
10. Remove the three gears attached on the FIX PLATE R in the order shown below.
1. GEAR 60T 18T
2. GEAR 48T
3. GEAR 40T 18T

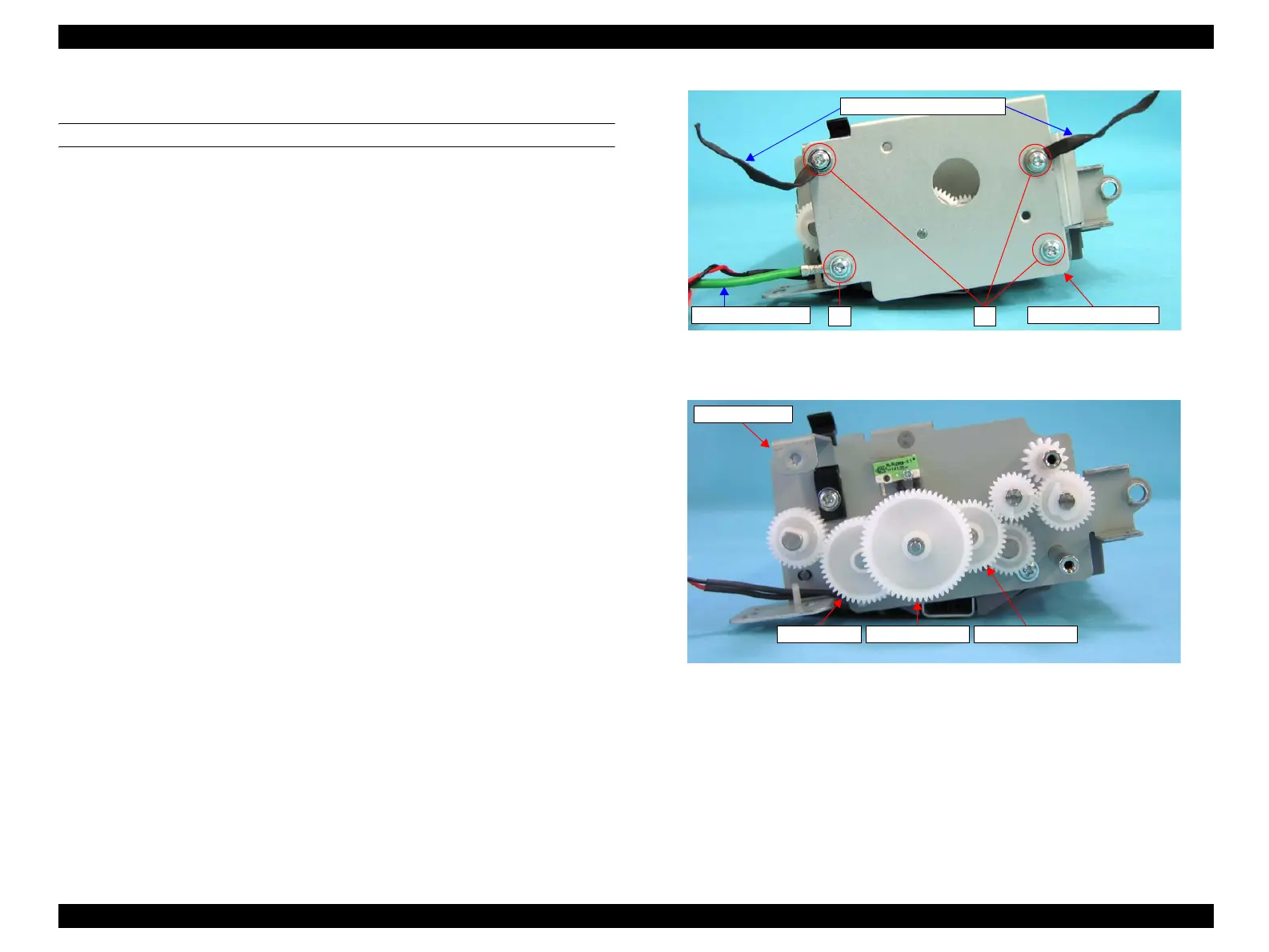

Figure 4-212. Removal of COVER SENSOR (1)
Figure 4-213. Removal of COVER SENSOR (2)
8) 9)
Grounding Wire MOTOR FIX PLATE
LOCKING CABLE CLIPS
FIX PLATE R
GEAR 48T GEAR 60T 18T GEAR 40T 18T
