Epson AcuLaser CX11 Service Manual

EPSON AcuLaser CX11/CX11F Revision B
DISASSEMBLY AND ASSEMBLY ADF Section 521
11. Release the COVER SENSOR from the two clamps of the FIX PLATE R.
12. Remove the screw (M2 x 10 mm, G-type, P-head) that secure the COVER
SENSOR to the FIX PLATE R, and remove the COVER SENSOR from the FIX
PLATE R.

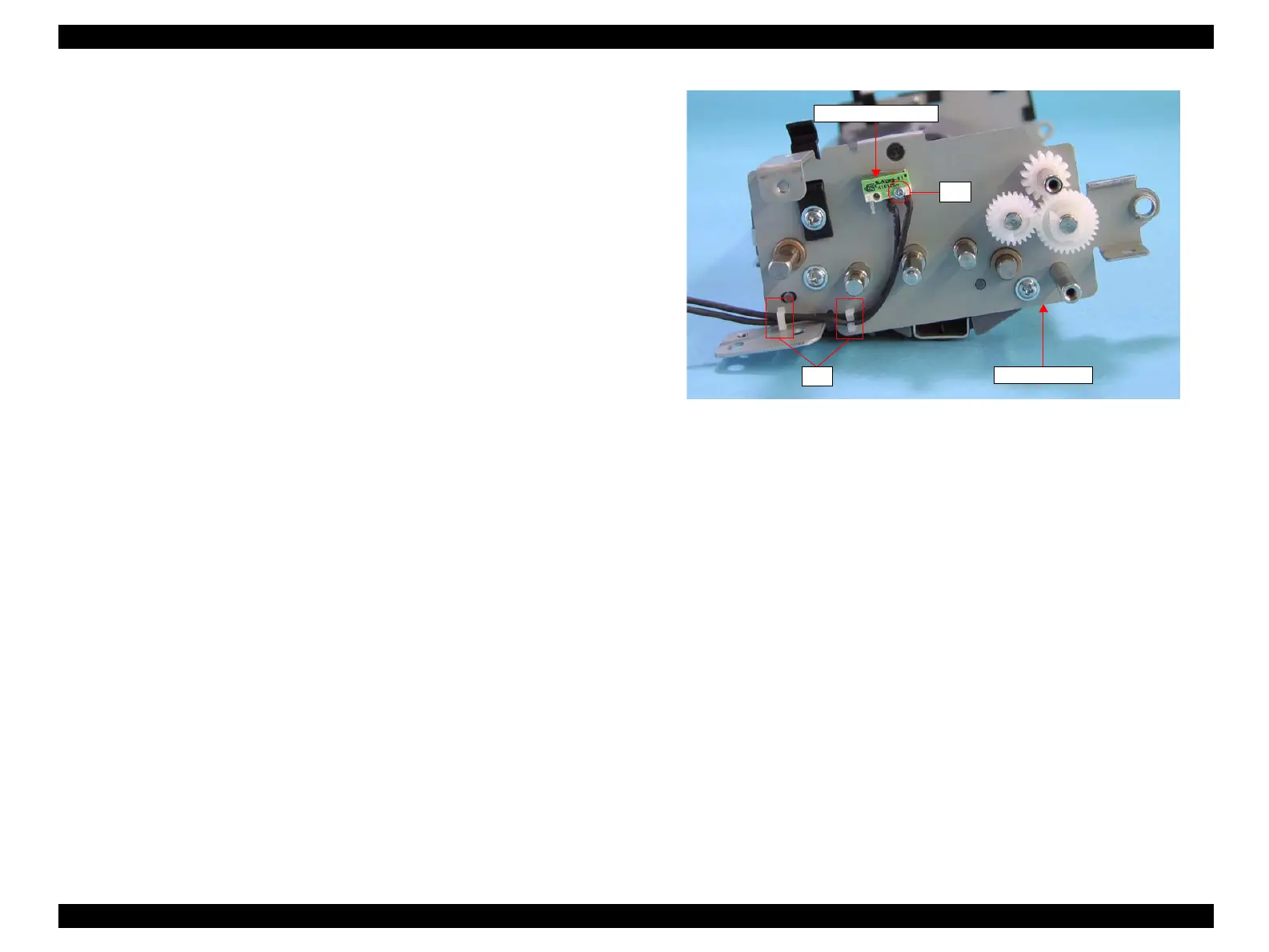

Figure 4-214. Removal of COVER SENSOR (3)
12)
11)
FIX PLATE R
COVER SENSOR
