EPSON AcuLaser CX11/CX11F Revision B
DISASSEMBLY AND ASSEMBLY Printer 407
4.2.8.3 ANTENNA CTRG
REMOVAL
1. Remove COVER ASSY RH. (p326)
2. Disconnect connector (P/J106) from ANTENNA CTRG.
3. Unhook the hook fastening ANTENNA CTRG to ANTENNA ASSY-CTRG, and
remove ANTENNA ASSY-CTRG.
REINSTALLATION
1. Match the boss on ANTENNA ASSY-CTRG with the hole on ANTENNA CTRG,
attach ANTENNA CTRG, and fasten with a hook.
2. Connect connector (P/J106) to ANTENNA CTRG.
3. Attach COVER ASSY RH. (p326)

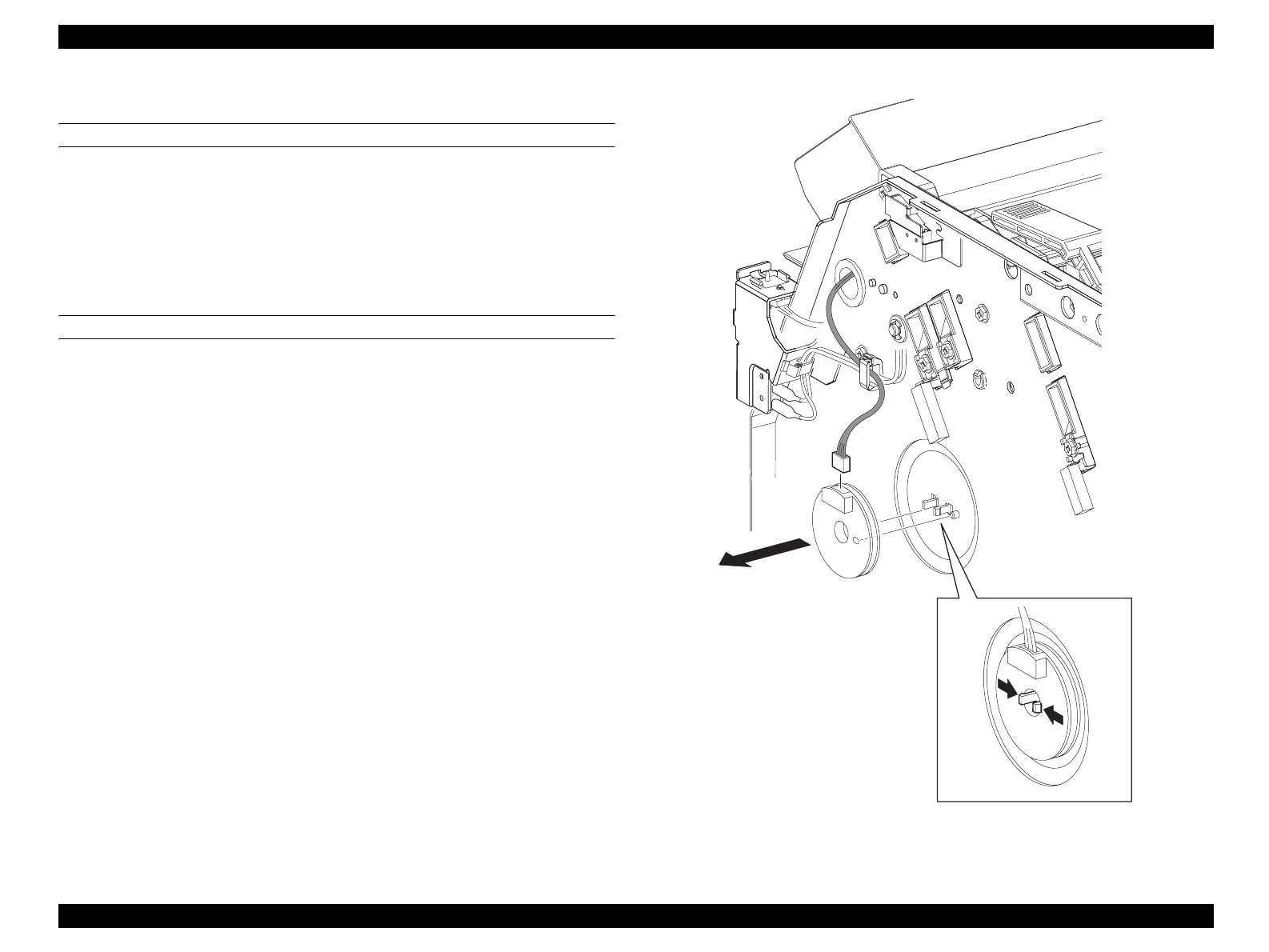

Figure 4-92. Removal of ANTENNA CTRG
Leg_Sec03_091EC
2)
3)-2
3)-1
