DISASSEMBLY AND ASSEMBLY Printer 466
4.2.12.22 FILM ASSY FDR
REMOVAL
1. Open CHUTE FDR ASSY 500.
2. Remove the 4 screws (silver, tapping, 8 mm) fastening FILM ASSY FDR to
CHUTE ASSY 500.
3. Remove FILM ASSY FDR from CHUTE ASSY 500.
REINSTALLATION
1. Match the hole on FILM ASSY FDR with the boss on CHUTE ASSY 500, and
attach FILM ASSY FDR while inserting the film base on FILM ASSY FDR to the
inside of CHUTE ASSY 500.
2. Fasten FILM ASSY FDR to CHUTE ASSY 500 with the 4 screws (silver, tapping,
8 mm).
3. Close CHUTE FDR ASSY 500.

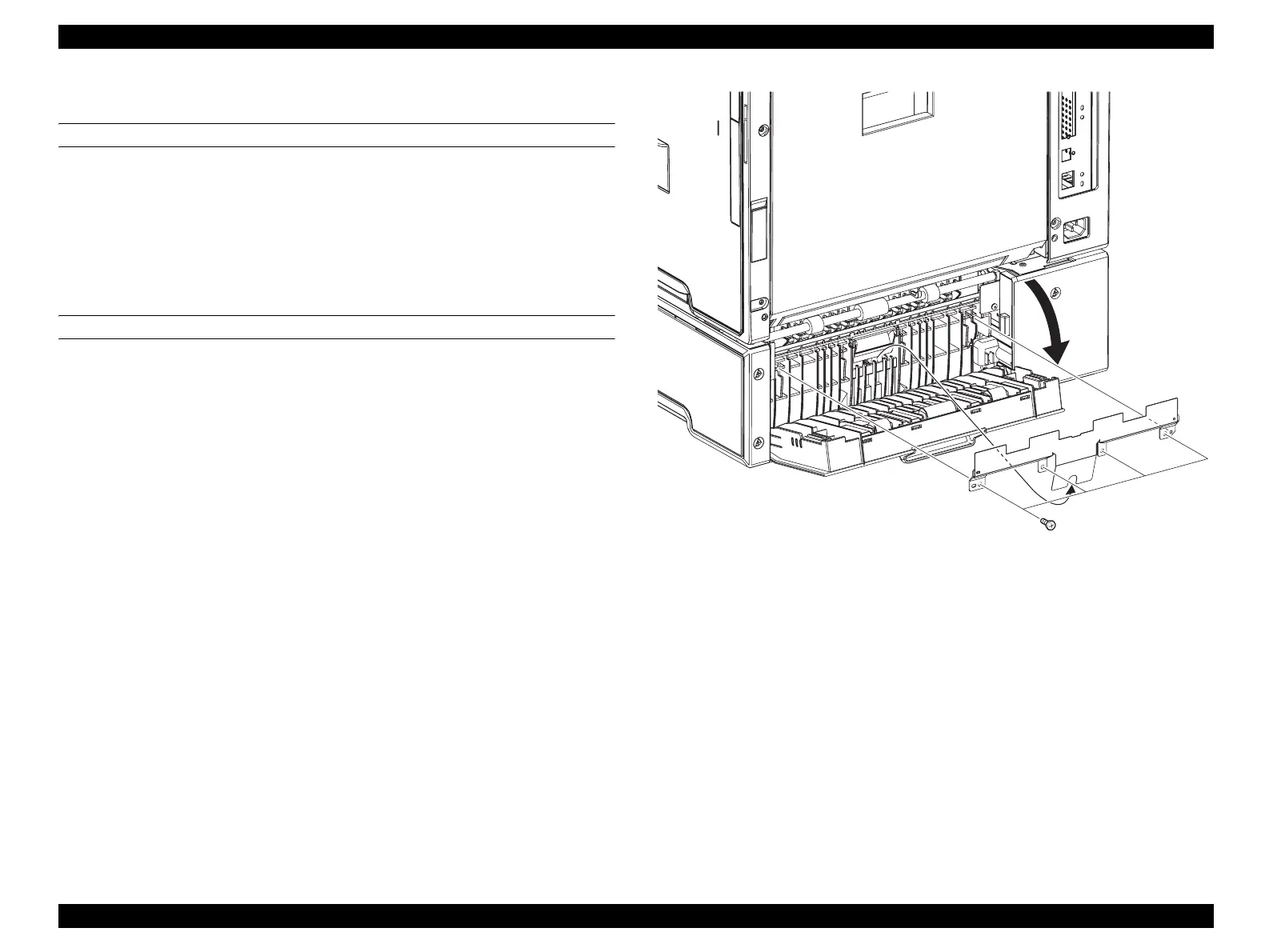

Figure 4-142. Removal of FILM ASSY FDR
Leg_Sec03_205FB
1)
3)
2)
