EPSON AcuLaser CX11/CX11F Revision B
DISASSEMBLY AND ASSEMBLY Printer 430
4.2.11.3 PWB ASSY ROT
REMOVAL
1. Remove COVER ASSY RH. (p326)
2. Remove COVER ASSY LH. (p321)
3. Remove COVER MSI. (p317)
4. Remove COVER FRONT L and COVER FRONT ASSY U. (p318)
5. Disconnect connector (P/J430), connector (P/J432) and connector (P/J433) from
PWB ASSY ROT.
6. Remove the 4 screws (silver, with flange, 6 mm) fastening PWB ASSY ROT to
the main unit.
7. Remove PWB ASSY ROT from the main unit.
REINSTALLATION
1. Attach PWB ASSY ROT to the main unit.
2. Fasten PWB ASSY ROT to the main unit with the 4 screws (silver, with flange, 6
mm).
3. Connect connector (P/J430), connector (P/J432) and connector (P/J433) to PWB
ASSY ROT.
4. Attach COVER FRONT L and COVER FRONT ASSY U. (p318)
5. Attach COVER MSI. (p317)
6. Attach COVER ASSY LH. (p321)
7. Attach COVER ASSY RH. (p326)

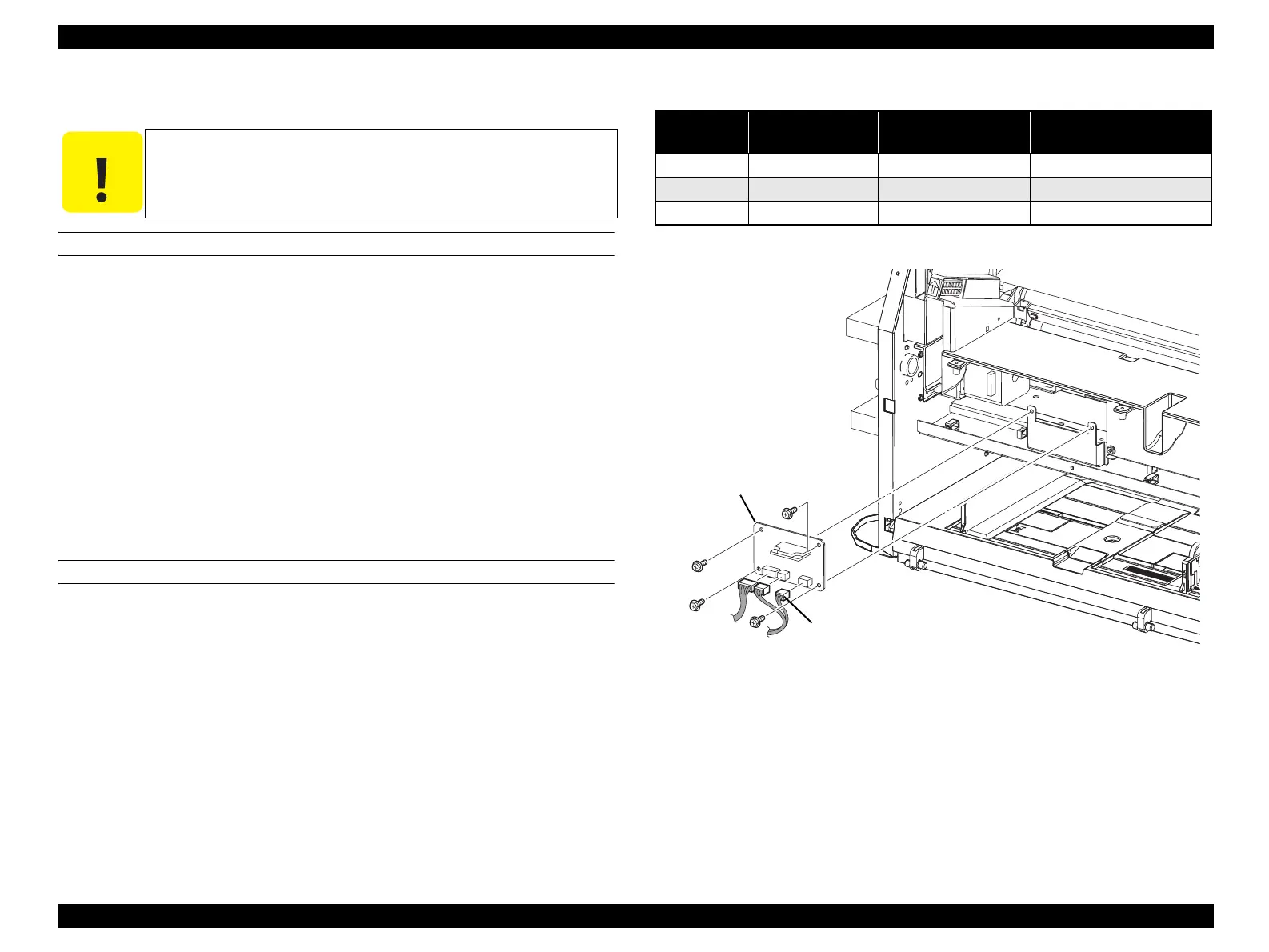

Figure 4-112. Removal of PWB ASSY ROT
C A U T I O N
Avoid staticky places such as on a carpet especially when removing
or inserting a Board. Before starting work with the Board, make
sure to touch metallic portion of the printer connected to the earth
to let your body come out free of static electricity.
Table 4-13. Symptoms when the connector is loose
Connector
No.
Panel Indication Symptom
Error Caused by Connector
Disconnection
P/J430 Service Req E527 All LEDs flash ---
P/J432 Service Req E527 All LEDs flash ---
P/J433 Service Req E527 All LEDs flash ---
Leg_Sec03_106FA
6)
7)
6)
6)
6)
5)
