Epson AcuLaser CX11 - Example of the Module Check Screen; Module Check

EPSON AcuLaser CX11/CX11F Revision B
TROUBLESHOOTING MFP Maintenance Mode 141
3.3.2.4 Module Check
Modules on the fax unit is checked individually or all at once if they are operating
normally, and the result is displayed on the panel.
When you select “Module Check” and press [Right], the screen as shown below will be
displayed. Select (Highlight) the module you wish to check and press [Right] to start
the diagnosis.

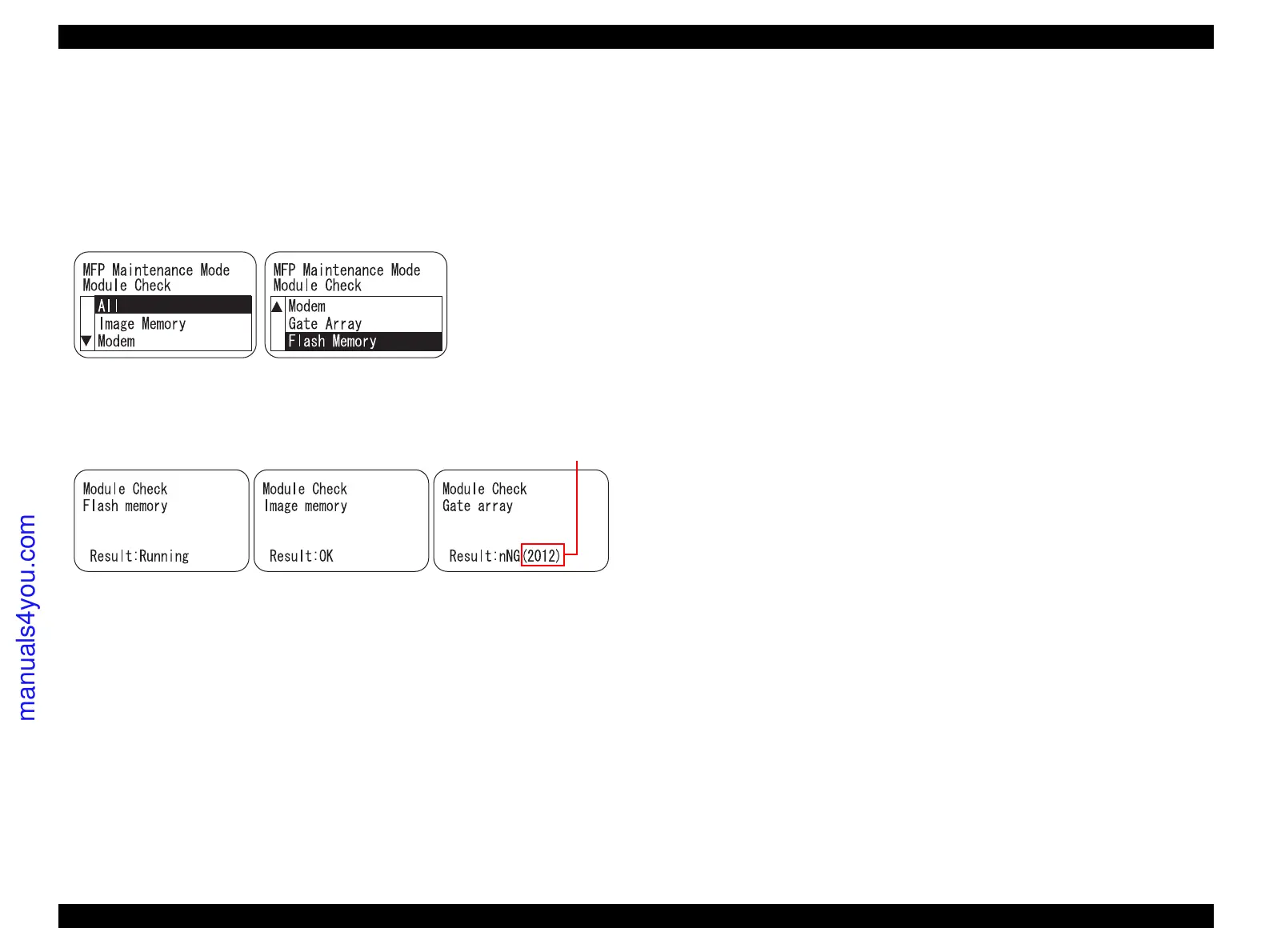

 Example of the Module Check Screen
Note : Once the process is over, press [Stop] to return to the previous screen (Module Check
initial screen).
Module Check in Progress Diagnosed as Normal Diagnosed as Abnormal
Numbers that indicate the error
