Epson AcuLaser CX11 Service Manual

EPSON AcuLaser CX11/CX11F Revision B
DISASSEMBLY AND ASSEMBLY Printer 334
4.2.3.4 CHUTE MSI
REMOVAL
1. Remove FRAME ASSY-PH. (p352)
2. Bend down CHUTE MSI, and draw out the right-side boss on CHUTE MSI from
the right-side hole on MSI ASSY to remove CHUTE MSI.
REINSTALLATION
1. Insert the left-side boss on CHUTE MSI into the left-side hole of MSI ASSY, then
bend down CHUTE MSI, insert the right-side boss of CHUTE MSI, and attach
CHUTE MSI.
2. Attach FRAME ASSY-PH. (p352)

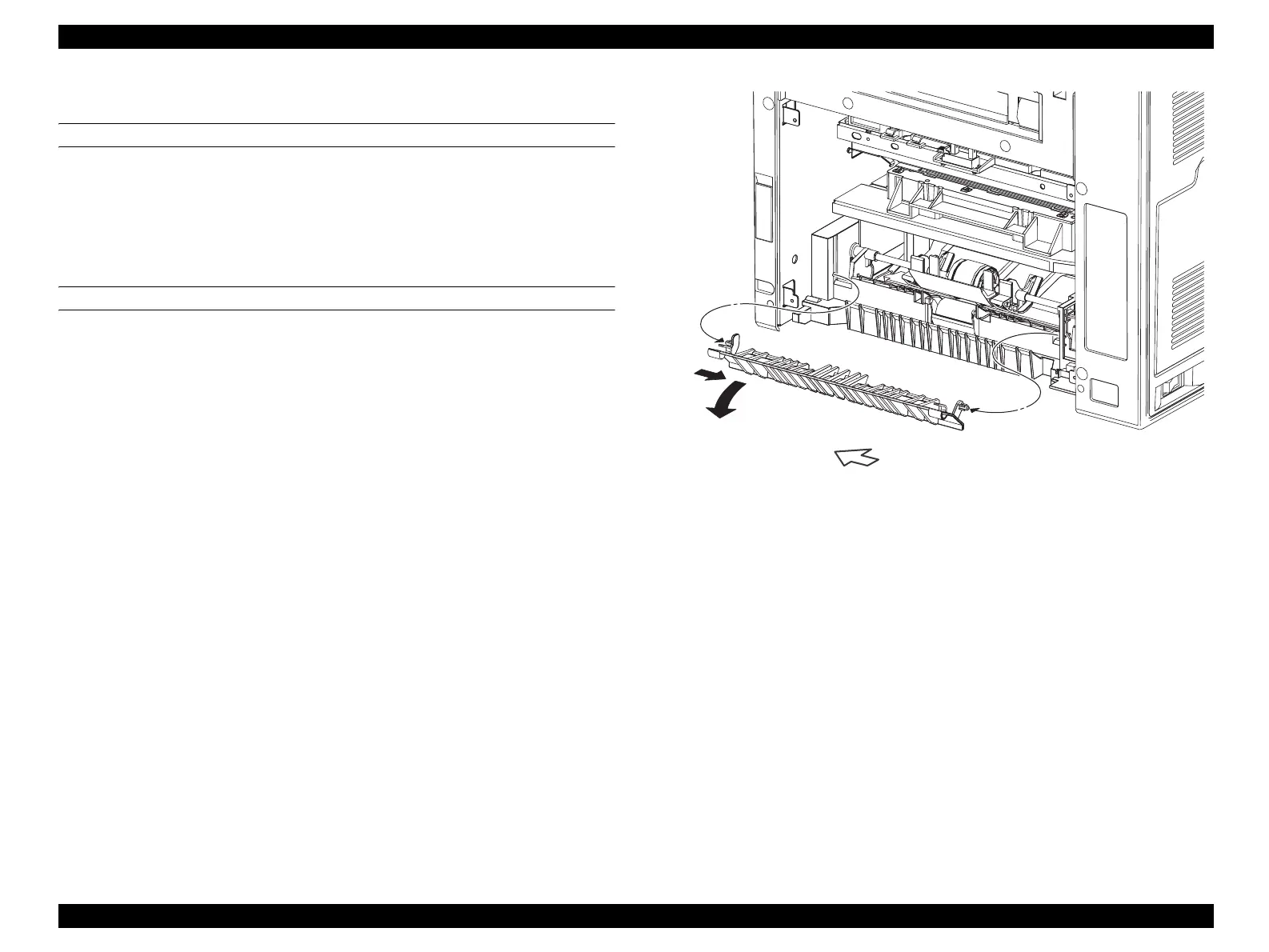

Figure 4-28. Removal of CHUTE MSI
Leg_Sec03_044EB
2)-1
2)-2
RIGHT
