Epson AcuLaser CX11 Service Manual

EPSON AcuLaser CX11/CX11F Revision B
DISASSEMBLY AND ASSEMBLY Printer 325
4.2.2.16 SWITCH-FRONT DOOR, SWITCH-INLK FRONT
REMOVAL
1. Remove COVER ASSY RH. (p326)
2. Remove SWITCH ASSY FRONT. (p315)
3. Remove the screw (gold, 8 mm) fastening SWITCH-INLK FRONT to BRACKET
INLK FRONT.
4. Remove SWITCH-INLK FRONT from BRACKET INLK FRONT.
5. Unhook the two hooks fastening SWITCH-FRONT DOOR to BRACKET INLK
FRONT, and remove SWITCH-FRONT DOOR.
REINSTALLATION
1. Match the hooks on SWITCH-FRONT DOOR with the attachment position, and
attach to BRACKET INLK FRONT.
2. Match the hole on SWITCH-INLK FRONT with the boss on BRACKET INLK
FRONT.
3. Fasten SWITCH-INLK FRONT to BRACKET INLK FRONT with the screw
(gold, 8 mm).
4. Attach SWITCH ASSY FRONT. (p315)
5. Attach COVER ASSY RH. (p326)

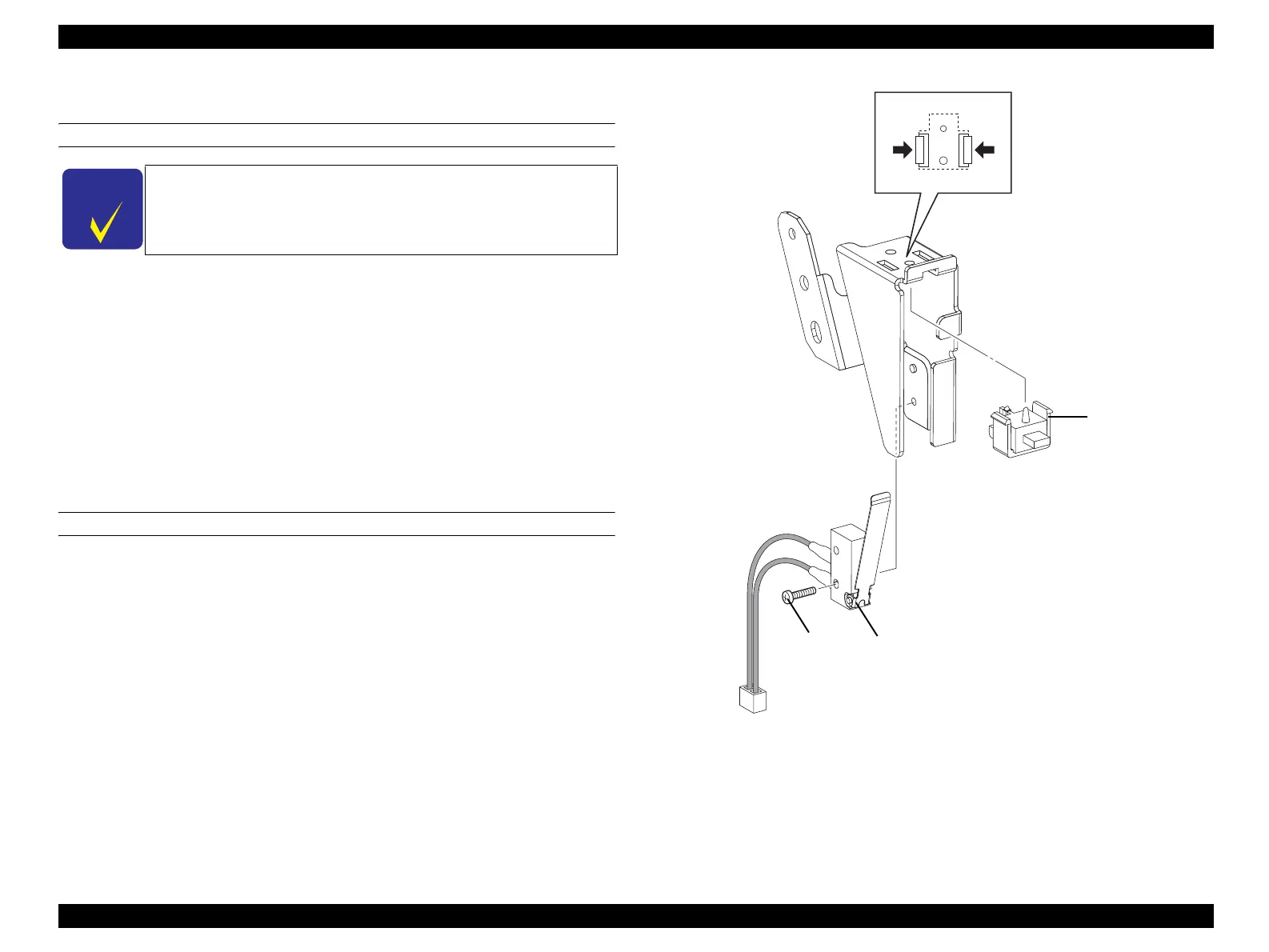

Figure 4-20. Removal of SWITCH-FRONT DOOR and SWITCH-INLK FRONT
C H E C K
P O I N T
SWITCH-FRONT DOOR and SWITCH-INLK FRONT can each
be removed separately.
Leg_Sec03_505EB
5)-1
5)-2
4)
3)
