TROUBLESHOOTING MFP Maintenance Mode 140
3.3.2.3 Parameter Check
Specifies main and sub codes of the system parameter for the fax unit, and reads/writes
the parameter values.
When you select “Parameter Check” and press [Right], the screen as shown below will
be displayed.Select (Highlight) either Read or Write and press [Right] to proceed to the
entry screen.
PARAMETER CHECK: READ
When the main and the sub codes of the parameter to be read are entered with the
numeric keypad, the current setting of the parameter are displayed. “OK” and
readout data are displayed when the process is completed normally, “NG” is
displayed with numbers that indicate the error when failed to read the data.

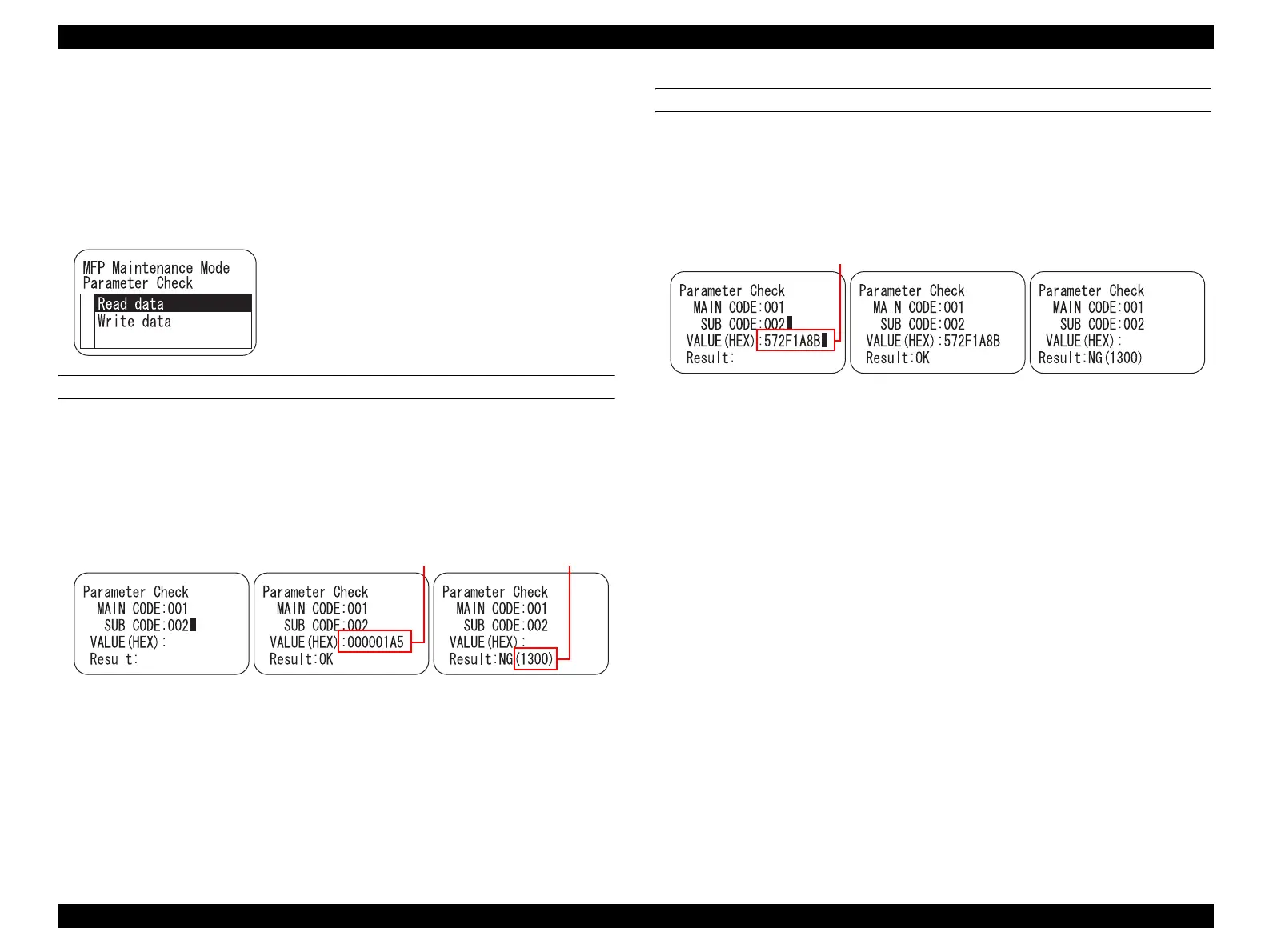

 Parameter Check: Example of the Read Screen
Note : When the [Stop] button is pressed during the parameter check (Read), the display
returns to the previous screen (Parameter Check initial screen).
PARAMETER CHECK: WRITE
When main/sub codes of the parameter and a new setting are entered with the
numeric keypad, the overwriting process is started. “OK” is displayed when the
process is completed normally, “NG” is displayed with numbers that indicate the
error when failed to overwrite.
 Parameter Check: Example of the Write Screen
Note : When the [Stop] button is pressed during the parameter check (Write), the display
returns to the previous screen (Parameter Check initial screen).
When Main/Sub Codes
are Entered
Display of Current Setting When Failed to Read Data
Current Setting
Numbers that
indicate the error
When Main/Sub Codes and
New Setting is Entered
When Overwriting
Completed
When Failed to
Overwrite
Enter new setting
