EPSON AcuLaser CX11/CX11F Revision B
DISASSEMBLY AND ASSEMBLY ADF Section 495
4.4.1.3 PCB COVER
REMOVAL
1. Remove the Scanner. (p306)
2. Remove the ADF Unit. (p481)
3. Remove the ADF COVER R. (p492)
4. Remove the two screws (M3 x 8 mm, P-type, A-head) that secure the PCB
COVER, and remove the PCB COVER.
REINSTALLATION
1. Insert the longer lateral side of the PCB COVER into the gap between the ADF
PCB ASSY and the SDH COVER, and secure the PCB COVER with the two
screws (M3 x 8 mm, P-type, A-head). See Figure 4-176.
2. Attach the ADF COVER R. (p492)
3. Attach the ADF Unit. (p481)
4. Install the Scanner. (p306)

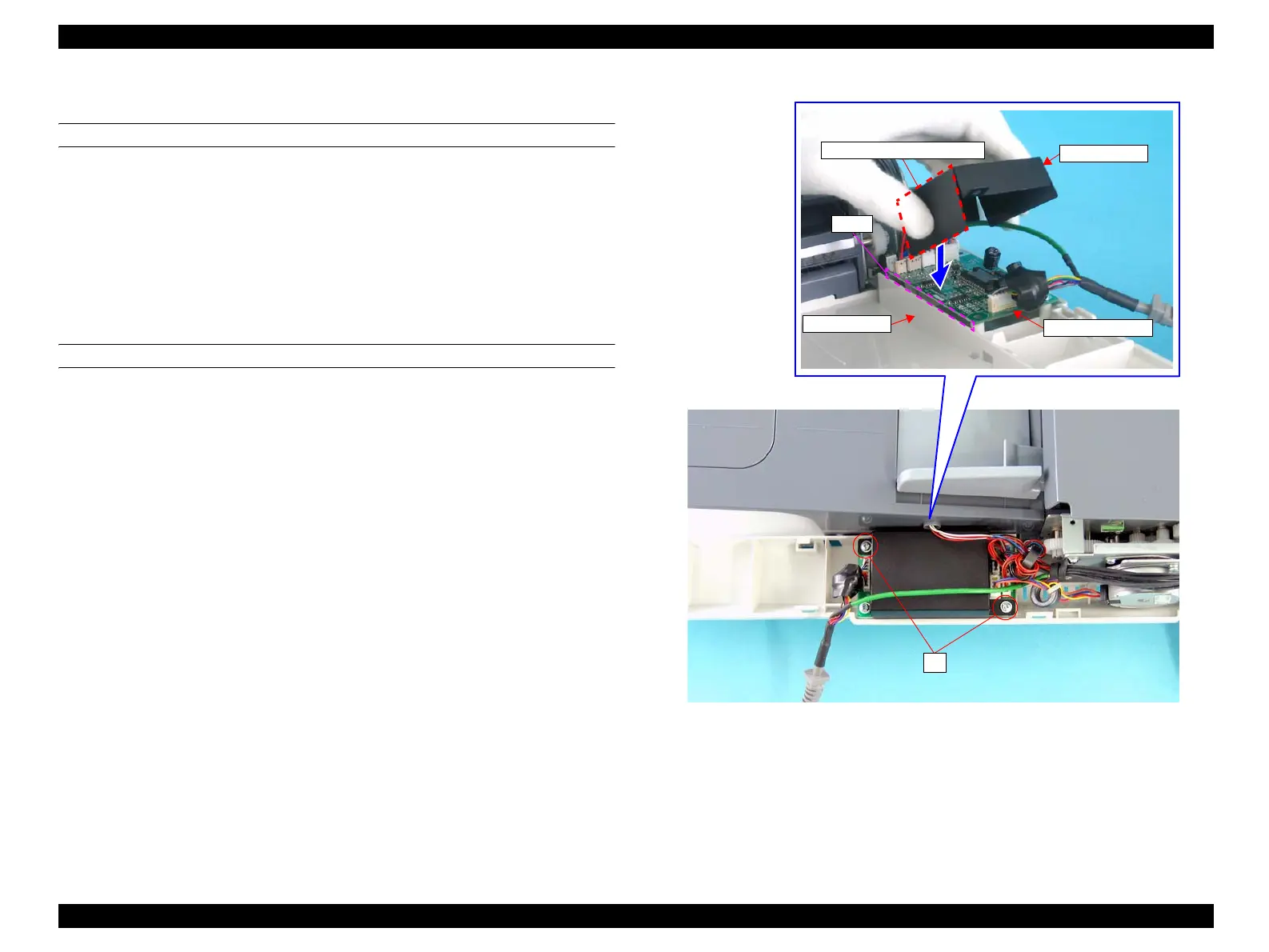

Figure 4-176. Removal of PCB COVER
PCB COVER
ADF PCB ASSY
SDH COVER
The Longer Lateral Side
Gap
