EPSON AcuLaser CX11/CX11F Revision B
DISASSEMBLY AND ASSEMBLY Printer 369
4.2.5.2 SENSOR FUSER IN
REMOVAL
1. Remove CHUTE ASSY-FSR. (p366)
2. Remove the 2 screws (silver, with washer, tapping, 8 mm) fastening DIODE
FUSER to CHUTE ASSY-FSR.
3. Remove DIODE FUSER from CHUTE ASSY-FSR.
4. Remove the screw (silver, with washer, tapping, 8 mm) fastening CHUTE-FSR
and PLATE DIS 2ND to CHUTE ASSY-FSR.
5. Remove PLATE DIS 2ND from CHUTE ASSY-FSR.
6. Remove CHUTE-FSR from CHUTE ASSY-FSR.
7. Disconnect connector (P/J111) from SENSOR FUSER IN.
8. Remove the screw (silver, tapping, 6 mm) fastening SENSOR FUSER IN to
CHUTE ASSY-FSR.
9. Remove SENSOR FUSER IN from CHUTE ASSY-FSR.

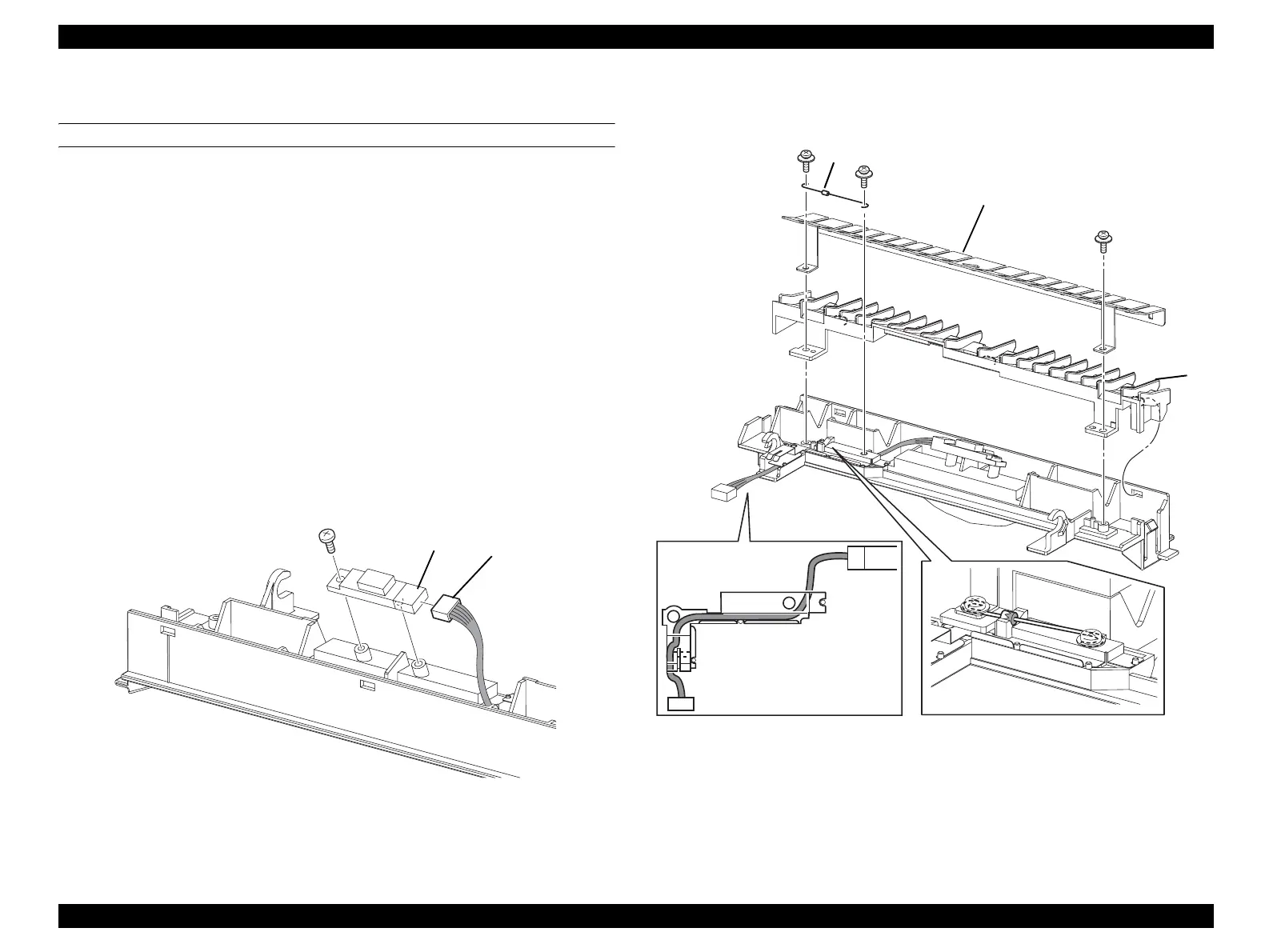

Figure 4-60. Removal of SENSOR FUSER IN (2)
Figure 4-61. Removal of SENSOR FUSER IN (1)
Leg_Sec03_145FA
9)
7)
8)
Leg_Sec03_144FB
CAUTION
6)
4)
5)
2)
2)
3)
To Next Page
