Epson AcuLaser CX11 Service Manual

EPSON AcuLaser CX11/CX11F Revision B
DISASSEMBLY AND ASSEMBLY Printer 348
REINSTALLATION
1. Slide the actuator of ACTUATOR EMPTY into the clearance of MSI ASSY, slide
the shaft on ACTUATOR EMPTY along the notch on MSI ASSY, and attach
ACTUATOR EMPTY.
2. Insert the right-side shaft of ACTUATOR EMPTY into the hole on MSI ASSY,
and fasten the groove on the left-side shaft of ACTUATOR EMPTY to the hook
on MSI ASSY.
3. Insert the left and right bosses into the notch on MSI ASSY with PLATE
BOTTOM 2 raised 90°, and attach PLATE BOTTOM 2.
4. Insert the holes of PLATE BOTTOM 2 into the boss on PLATE BOTTOM ASSY
MSI while extending the left and right attachment sections of PLATE BOTTOM
2.
5. Attach SENSOR PAPER EMPTY. (p346)
6. Attach GUIDE SIDE L and GUIDE ASSY SIDE R. (p335)
7. Attach MSI ASSY. (p329)
8. Attach FRAME ASSY-PH. (p352)
9. Attach COVER FRONT L and COVER FRONT ASSY U. (p318)
10. Attach COVER MSI. (p317)
11. Attach COVER ASSY LH. (p321)
12. Attach COVER ASSY RH. (p326)

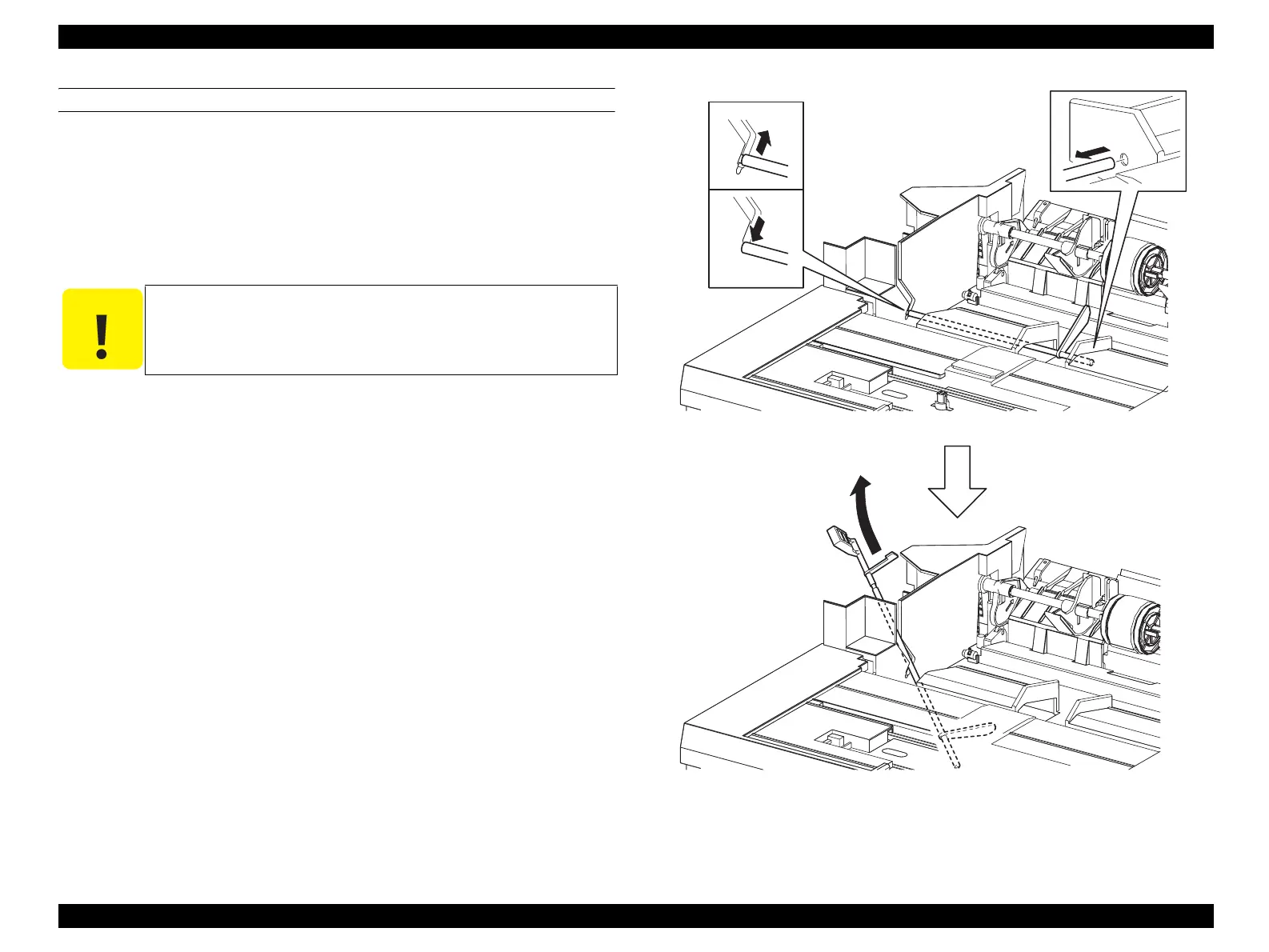

Figure 4-40. Removal of ACTUATOR EMPTY (2)
C A U T I O N
Make sure that ACTUATOR EMPTY is firmly fastened to the
hook.
Leg_Sec03_053FB
CAUTION
11)-1
[2)]
12)
11)-2
