Epson AcuLaser CX11 Service Manual

EPSON AcuLaser CX11/CX11F Revision B
APPENDIX Printer System Electrical Connection 568
500 FEEDER
7.2.1.2 Plug and Jack Layout

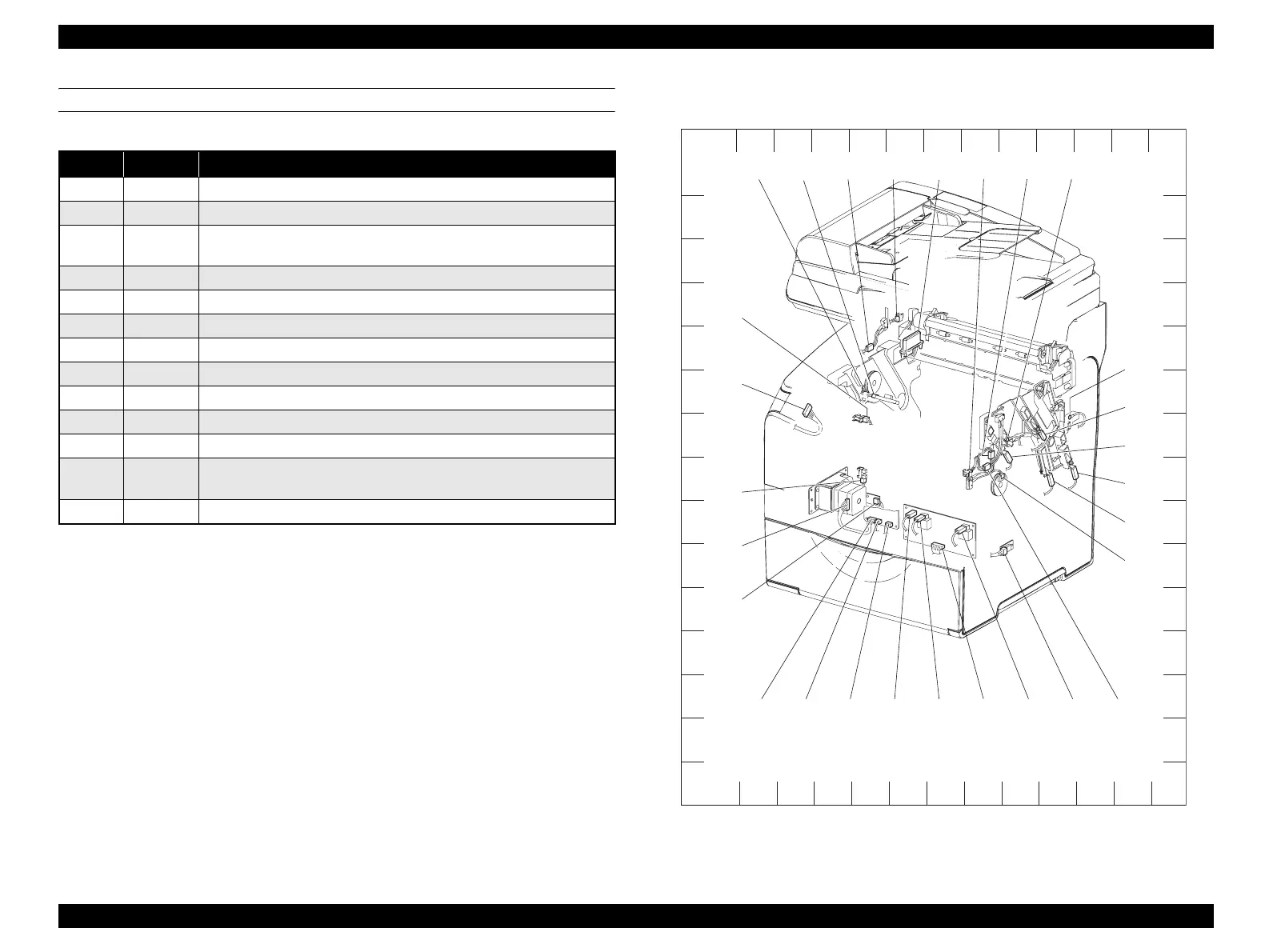

Figure 7-2. Plug and Jack Layout for IOT (1)
Table 7-2. 500 FEEDER
P/J Location Remarks
119 E-307
Connects SENSOR NO PAPER and HARNESS ASSY FEED3
120 D-307
Connects SENSOR T/R (P120) and HARNESS ASSY FEED3
121 C-308
Connects SWITCH FEEDER DOOR and HARNESS-ASSY FEED
MAIN
435 E-309
Connects PWBA TRAY 500 and HARNESS-ASSY FEED1
436 E-309
Connects PWBA TRAY 500 and HARNESS-ASSY FEED2
437 E-309
Connects PWBA TRAY 500 and HARNESS-ASSY FEED MAIN
CN1 E-308
Connects PWBA MOT and HARNESS-ASSY FEED MAIN
CN2 D-308
Connects PWBA MOT and MOTOR ASSY FEEDER
608 D-307
Connects HARNESS ASSY MAIN and HARNESS-ASSY FEED1
609 C-309
Connects CLUTCH ASSY FEED and HARNESS-ASSY FEED MAIN
610 C-308
Connects SOLENOID FEED and HARNESS-ASSY FEED MAIN
618 D-307
Connects HARNESS ASSY FEED MAIN and HARNESS ASSY
FEED3
4358 D-309
Not Connects
108 117 114 614109
105
115 T4 (IBT)
204
107
CN1
429
106
433 432 430 104 116GH 516 F
510
(DEVE)
514
(BCR)
513
(IBT)
512
(1BTR)
T2
(2BTR)
125
A
102
103
104
105
106
107
108
109
110
111
112
113
114
115
101
BCDEFGHI JKL
Leg_04_001RB
manuals4you.commanuals4you.com
