EPSON AcuLaser CX11/CX11F Revision B
DISASSEMBLY AND ASSEMBLY Printer 382
4.2.5.9 SENSOR 2BTR RETRACT
REMOVAL
1. Remove CHUTE ASSY-FSR and COVER ASSY-RR 2ND. (p366)
2. Disconnect connector (P/J112) from SENSOR 2BTR RETRACT.
3. Remove the screw (silver, with flange, 8 mm) fastening BRACKET-SENSOR
PHOTO to the main unit.
4. Remove BRACKET-SENSOR PHOTO from the main unit together with
SENSOR 2BTR RETRACT.
5. Unhook the three hooks fastening SENSOR 2BTR RETRACT to BRACKET-
SENSOR PHOTO, and remove SENSOR 2BTR RETRACT.
REINSTALLATION
1. Match the hooks on SENSOR 2BTR RETRACT with the attachment position, and
attach to BRACKET-SENSOR PHOTO.
2. Match the hole on BRACKET-SENSOR PHOTO with the boss on the main unit,
and attach BRACKET-SENSOR PHOTO together with SENSOR 2BTR
RETRACT.
3. Fasten BRACKET-SENSOR PHOTO to the main unit with the screw (silver, with
flange, 8mm).
4. Connect connector (P/J112) to SENSOR 2BTR RETRACT.
5. Attach CHUTE ASSY-FSR and COVER ASSY-RR 2ND. (p366)

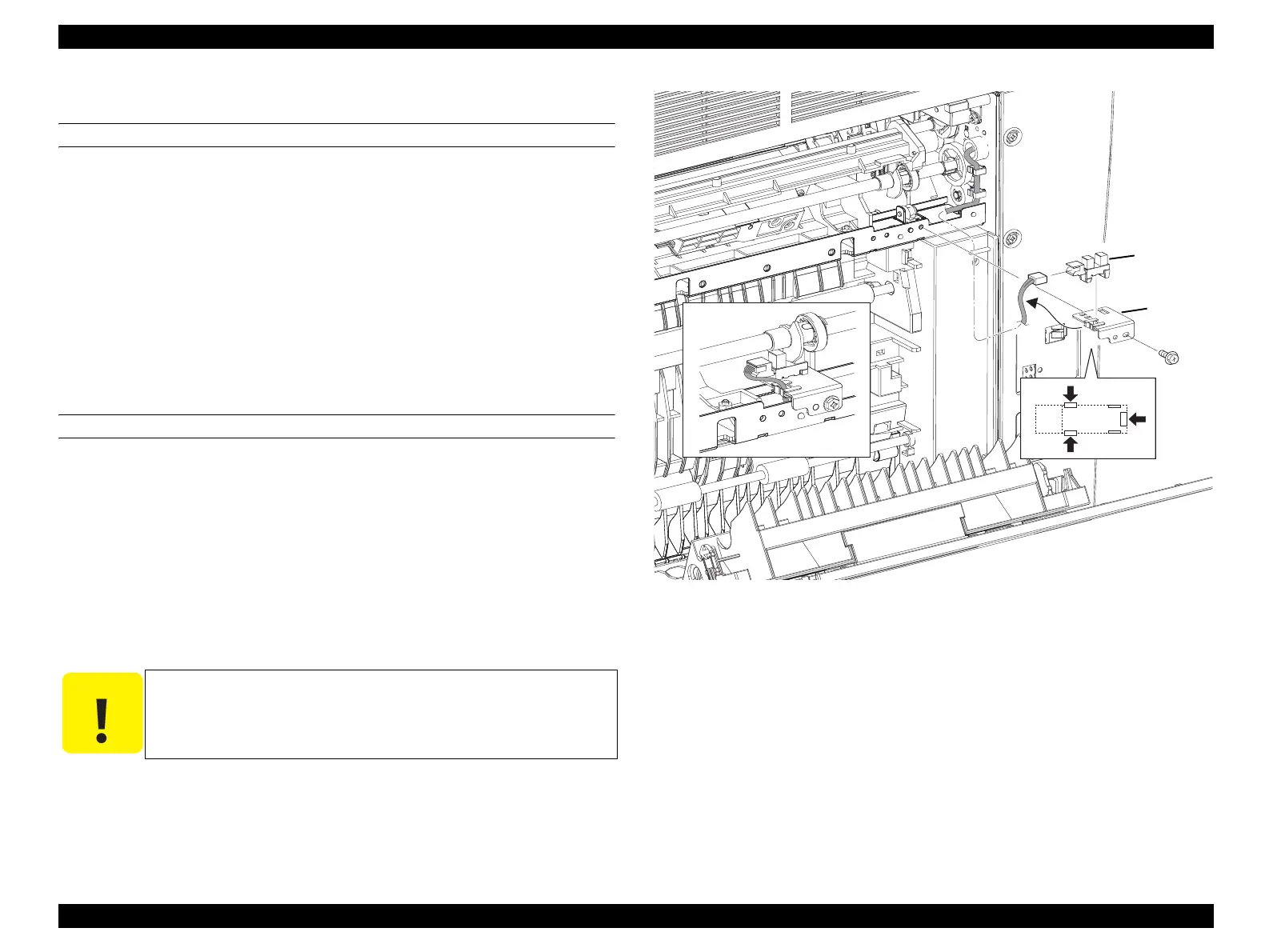

Figure 4-69. Removal of SENSOR 2BTR RETRACT
C A U T I O N
The shutter of CAM ASSY-2ND must be inserted inside the sensor
on SENSOR 2BTR RETRACT.
Leg_Sec03_073RB
CAUTION
5)-2
2)
4)
3)
5)-1
