EPSON AcuLaser CX11/CX11F Revision B
DISASSEMBLY AND ASSEMBLY Printer 445
REINSTALLATION
1. Match the boss on the rear of PLATE ASSY BOTTOM 500 with SPRING NF.
2. Insert the shaft on PLATE ASSY BOTTOM 500 into the oblong hole on
CASSETTE 500 while pushing the side of CASSETTE 500 outward, and attach
PLATE ASSY BOTTOM 500.
3. Fasten the front side of PLATE ASSY BOTTOM 500 with the two hooks on
CASSETTE 500 while inserting the protrusion on PLATE ASSY BOTTOM 500
into the concave portion on PAPER SLIDE 500.
4. Match the protrusion on PLATE ROLL STOPPER with the hole on 500 PAPER
CASSETTE ASSY, and attach the left and right PLATE ROLL STOPPERs.
5. Fasten the left and right PLATE ROLL STOPPERs to 500 PAPER CASSETTE
ASSY with the 4 screws (silver, tapping, 6 mm) (2 each on left and right).
6. Attach LOCK LIFT R, LOCK LIFT L and ROLL LINK to the bearing on PLATE
ASSY BOTTOM 500 on both the left and right sides, and fasten the hook on
ROLL LINK to the groove on the shaft of PLATE ASSY BOTTOM 500.
7. Press PLATE ASSY BOTTOM 500 to lock LOCK LIFT R and LOCK LIFT L.
8. Attach 500 PAPER CASSETTE ASSY. (p442)

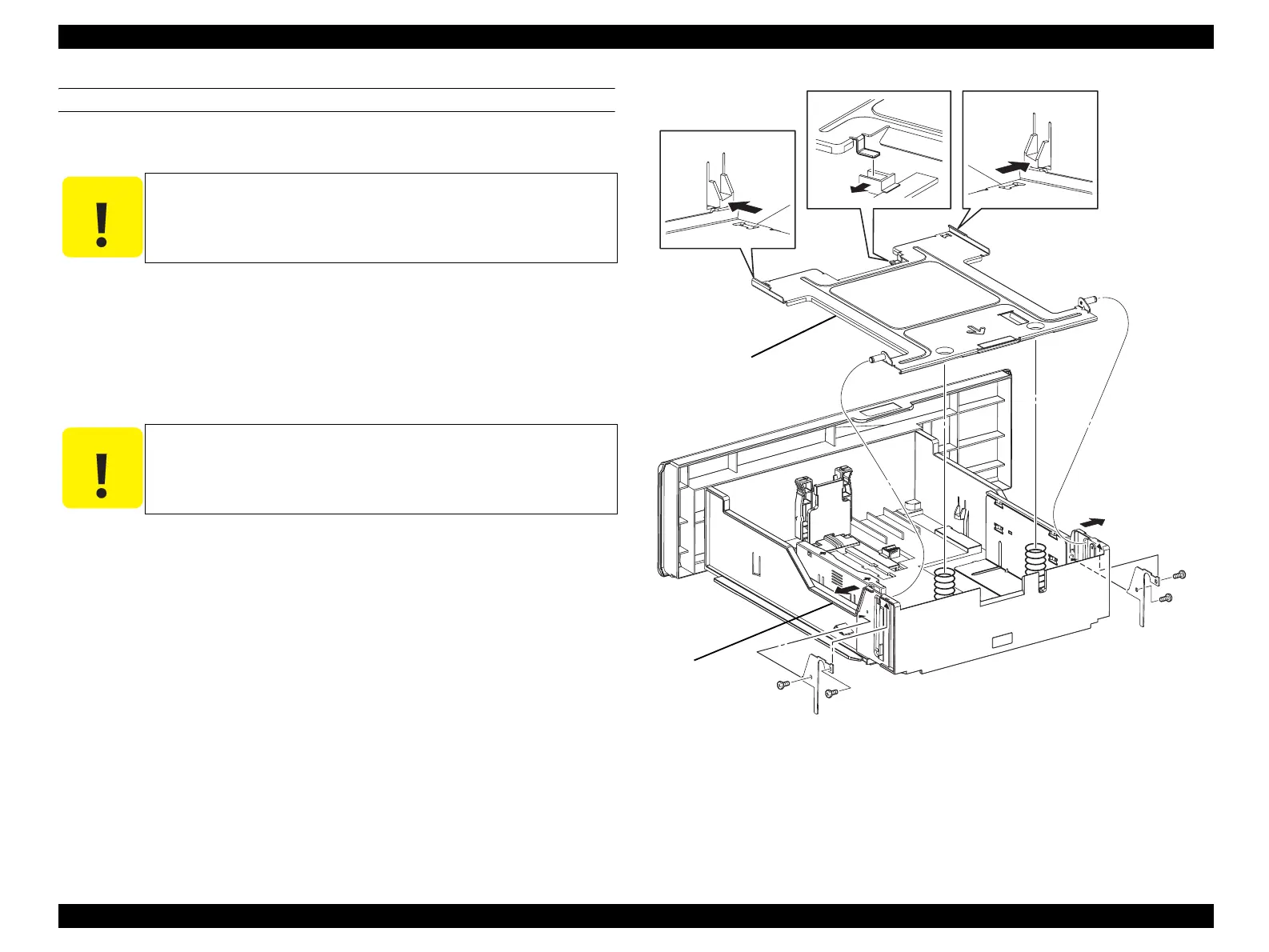

Figure 4-122. Removal of PLATE ASSY BOTTOM 500 (2)
C A U T I O N
Make sure that the boss on the rear of PLATE ASSY BOTTOM
500 is inserted into SPRING NF.
C A U T I O N
The protrusion on PLATE ASSY BOTTOM 500 must be inserted
into the concave portion on PAPER SLIDE 500.
Leg_Sec03_016EA
8)-1
4)
4)
5)
5)
4)
4)
8)-1
8)-2
6)
7)
6)
To Next Page
