DISASSEMBLY AND ASSEMBLY Scanner Section 484
REINSTALLATION
1. Draw the IR COVER A ASSY harness through the hole on the IR BASE A ASSY.
2. Bundle the harness and the FFC of the IR COVER A ASSY with a piece of tape.
3. Attach the IR COVER A ASSY to the IR BASE A ASSY inserting the IR
ENGINE LOCK ASSY and the ADF IR LOCK ASSY into the holes on the
reverse side of the IR COVER A ASSY.
4. Turn the Scanner over and secure the IR COVER A ASSY to the IR BASE A
ASSY with seven screws (M3 x 10 mm, P-type, B-head).
5. Attach the two HINGE HOLDER 2s to left and right grooves on the IR BASE A
ASSY respectively, and secure them with the two screws (M3 x 10 mm, P-type, B-
head) (one screw for one HINGE HOLDER 2).
6. Turn the Scanner back to normal orientation, and secure the left and right HINGE
HOLDER 2s to the IR COVER A ASSY with the two screws (M3 x 10 mm, P-
type, B-head) respectively.
7. Attach the ADF Unit. (p481)
8. Install the Scanner. (p306)

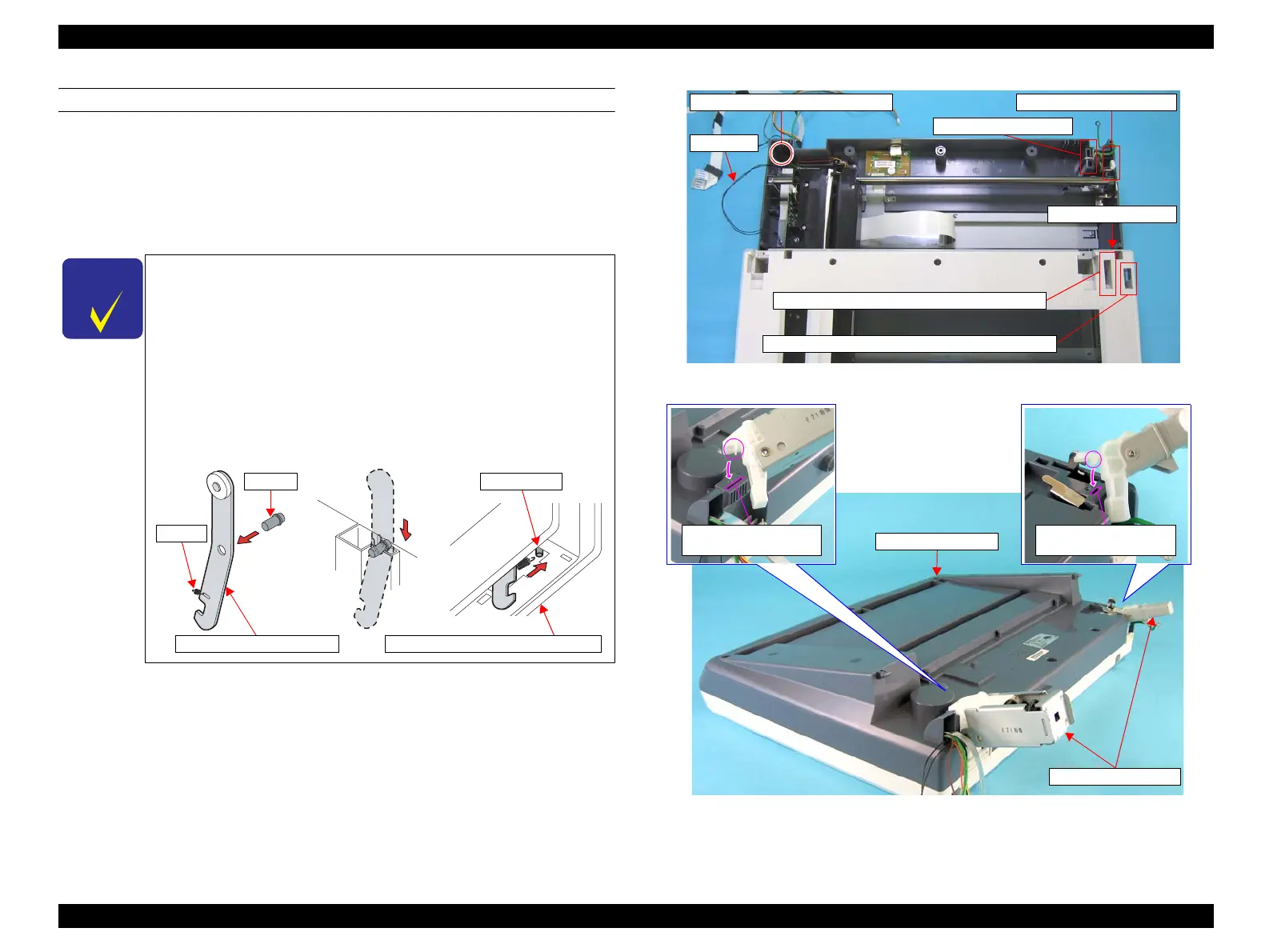

Figure 4-159. Reinstallation of IR COVER A ASSY
Figure 4-160. Reinstallation of HINGE HOLDER 2
C H E C K
P O I N T
The IR ENGINE LOCK ASSY may fall off the IR BASE A ASSY
while attaching the IR COVER A ASSY. In such case, reattach it
following the procedure given below.
1. Pass the pintle through the center hole on the IR ENGINE
LOCK ASSY, and hitch one end of the spring to the oblong
hole on the assy.
2. Attach the IR ENGINE LOCK ASSY to the IR BASE A ASSY
with the pintle placed on the bearing of the IR BASE A ASSY.
3. Hitch the other end of the spring to the protrusion on the IR
BASE A ASSY.
1) 2) 3)
ProtrusionPintle
Spring
Bottom of the IR BASE A ASSYIR ENGINE LOCK ASSY
IR COVER A ASSY
IR ENGINE LOCK ASSY
ADF IR LOCK ASSY
Through-hole for the Harness
Harness
Through-hole for the ADF IR LOCK ASSY
Through-hole for the IR ENGINE LOCK ASSY
Groove on
the IR BASE A ASSY
Groove on
the IR BASE A ASSY
IR BASE A ASSY
HINGE HOLDER 2
