:PWRenable (Power Event Enable Register)
(see page 1138)
Command Syntax
:PWRenable <mask>
<mask> ::= 16-bit integer
The :PWRenable command sets a mask in the Power Event Enable register.
Set any of the following bits to "1" to enable bit 7 in the Operation Status
Condition Register and potentially cause an SRQ (Service Request)
interrupt to be generated.
Query Syntax
:PWRenable?
The :PWRenable? query returns the current value contained in the Power
Event Enable register as an integer number.
Return Format
<value><NL>
<value> ::= integer in NR1 format.
See Also • "Introduction to Root (:) Commands" on page 190
• ":AER (Arm Event Register)" on page 192
• ":CHANnel<n>:PROTection" on page 276
• ":OPERegister[:EVENt] (Operation Status Event Register)" on page 209
• ":OVLenable (Overload Event Enable Register)" on page 211
• ":OVLRegister (Overload Event Register)" on page 213

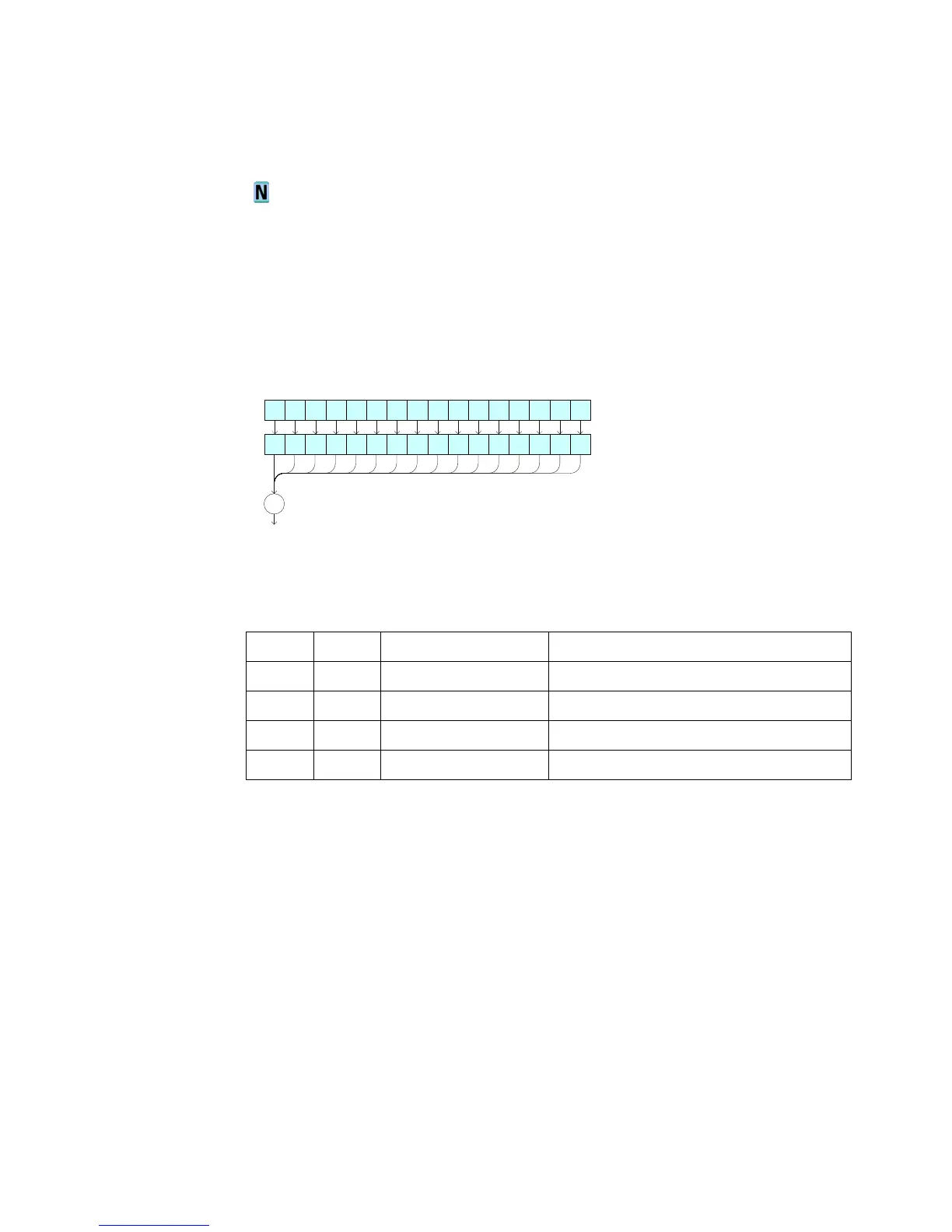

Table 77 Power Event Enable Register (PWRenable)
Bit Name Description When Set (1 = High = True), Enables:
15-3 --- --- (Not used.)
2 Deskew Deskew Complete Power analysis deskew is complete.
1 Apply Apply Complete Power analysis apply feature is complete.
0 Setup Setup Complete Power analysis auto setup feature is complete.
