21 :MEASure Power Commands
:MEASure:REAL
(see page 1138)
Command Syntax
:MEASure:REAL [<source>]
<source> ::= {CHANnel<n>| FUNCtion | MATH}
<n> ::= 1 to (# analog channels) in NR1 format
The :MEASure:REAL command installs a real power measurement on
screen.
The <source> parameter is typically a math multiply waveform or other
waveform that represents power (voltage * current). This source can also
be specified by the :MEASure:SOURce command.

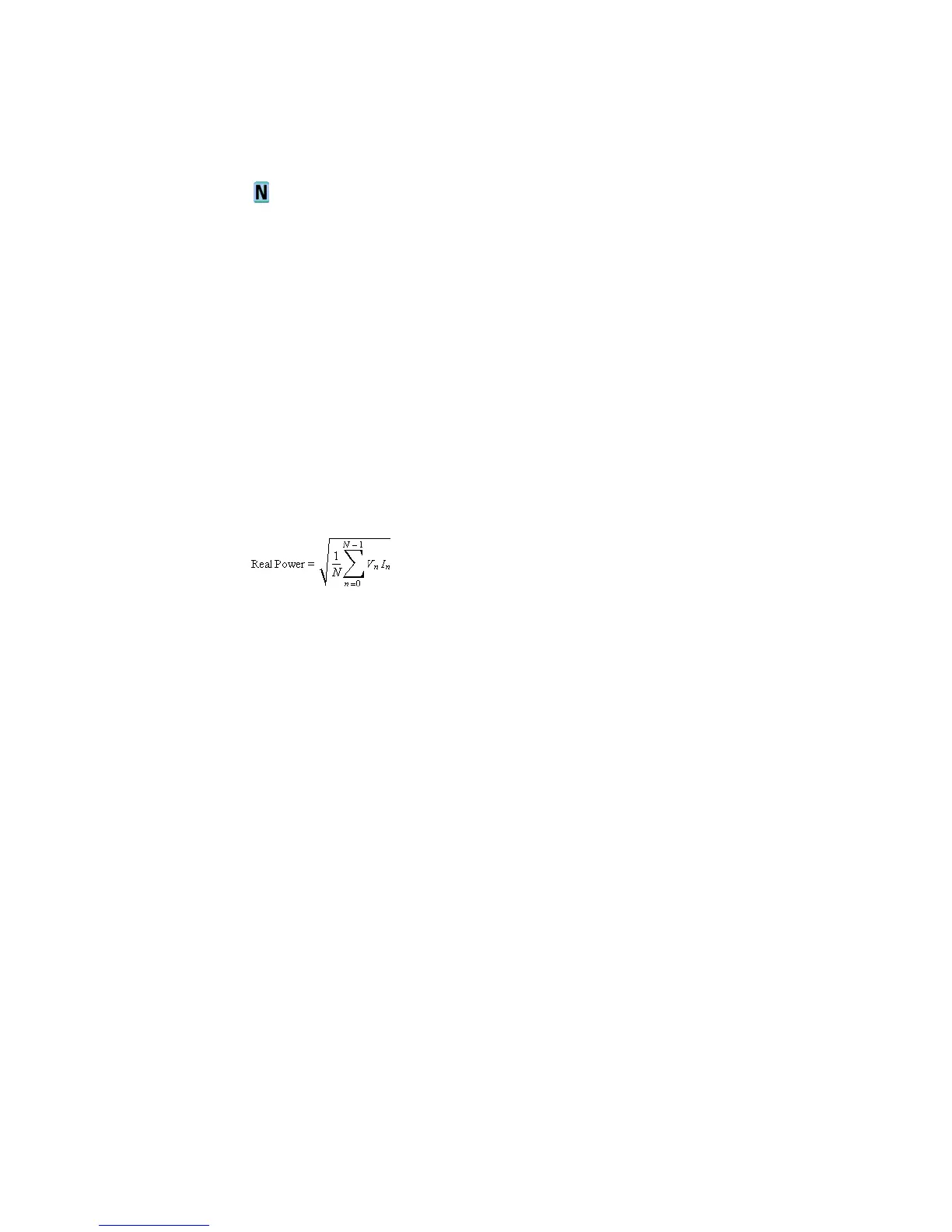

Real power is a measure of power quality. It is the portion of power flow
that, averaged over a complete cycle of the AC waveform, results in net
transfer of energy in one direction.
Query Syntax
:MEASure:REAL? [<source>]
The :MEASure:REAL query returns the measured real power.
Return Format
<return_value><NL>
<return_value> ::= the real power value in NR3 format
See Also • ":MEASure:SOURce" on page 444
• ":POWer:QUALity:TYPE" on page 562
• ":POWer:QUALity:APPLy" on page 561
