Level Two Interface
ARM DDI 0301H Copyright © 2004-2009 ARM Limited. All rights reserved. 8-8
ID012310 Non-Confidential, Unrestricted Access
8.3 AXI control signals in the processor
This section describes the processor implementation of the AXI control signals:
For additional information about AXI, see the AMBA AXI Protocol Specification.
The AXI protocol is burst-based. Every transaction has address and control information on the
address channel that describes the nature of the data to be transferred. The data is transferred
between master and slave using a write channel to the slave or a read channel to the master. In
write transactions, where all the data flows from the master to the slave, the AXI has an
additional write response channel to enable the slave to signal to the master the completion of
the write transaction.
The AXI protocol permits address information to be issued ahead of the actual data transfer and
enables support for multiple outstanding transactions in addition to out-of-order completion of
transactions.

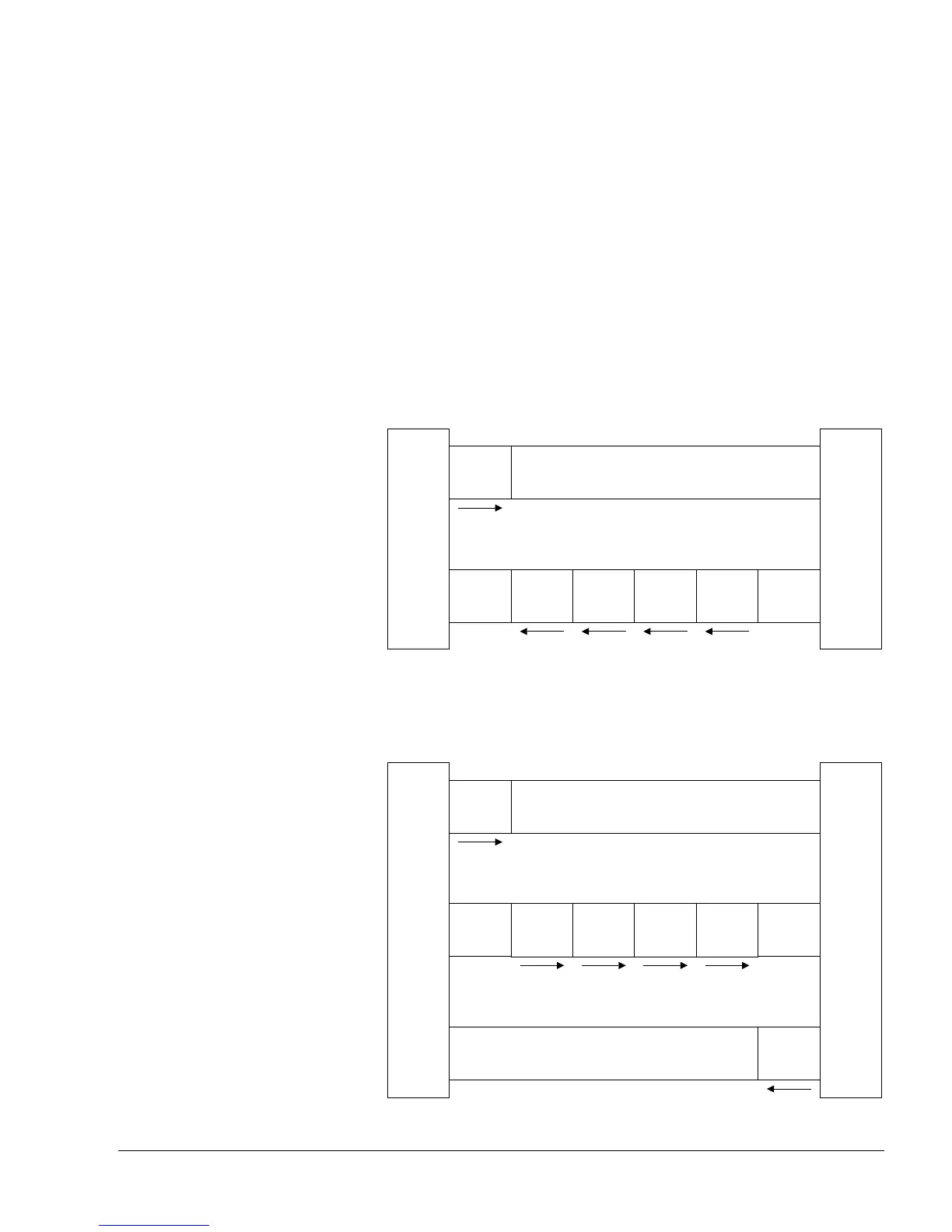

Figure 8-2 shows how a read transaction uses the read address and read data channels.
Figure 8-2 Channel architecture of reads
Figure 8-3 shows how a write transaction uses the write address, write data, and write response
channels.
Figure 8-3 Channel architecture of writes
Master
interface
Slave
interface
Address
and
control
Read address channel
Read
data
Read
data
Read
data
Read
data
Read channel
Master
interface
Slave
interface
Address
and
control
Write address channel
Write
data
Write channel
Write
data
Write
data
Write
data
Write
response
Write response channel
