Connector - External Trig 1-9
The external trig can be used for any console function by assigning appropriate Triggers in Event
Lists.

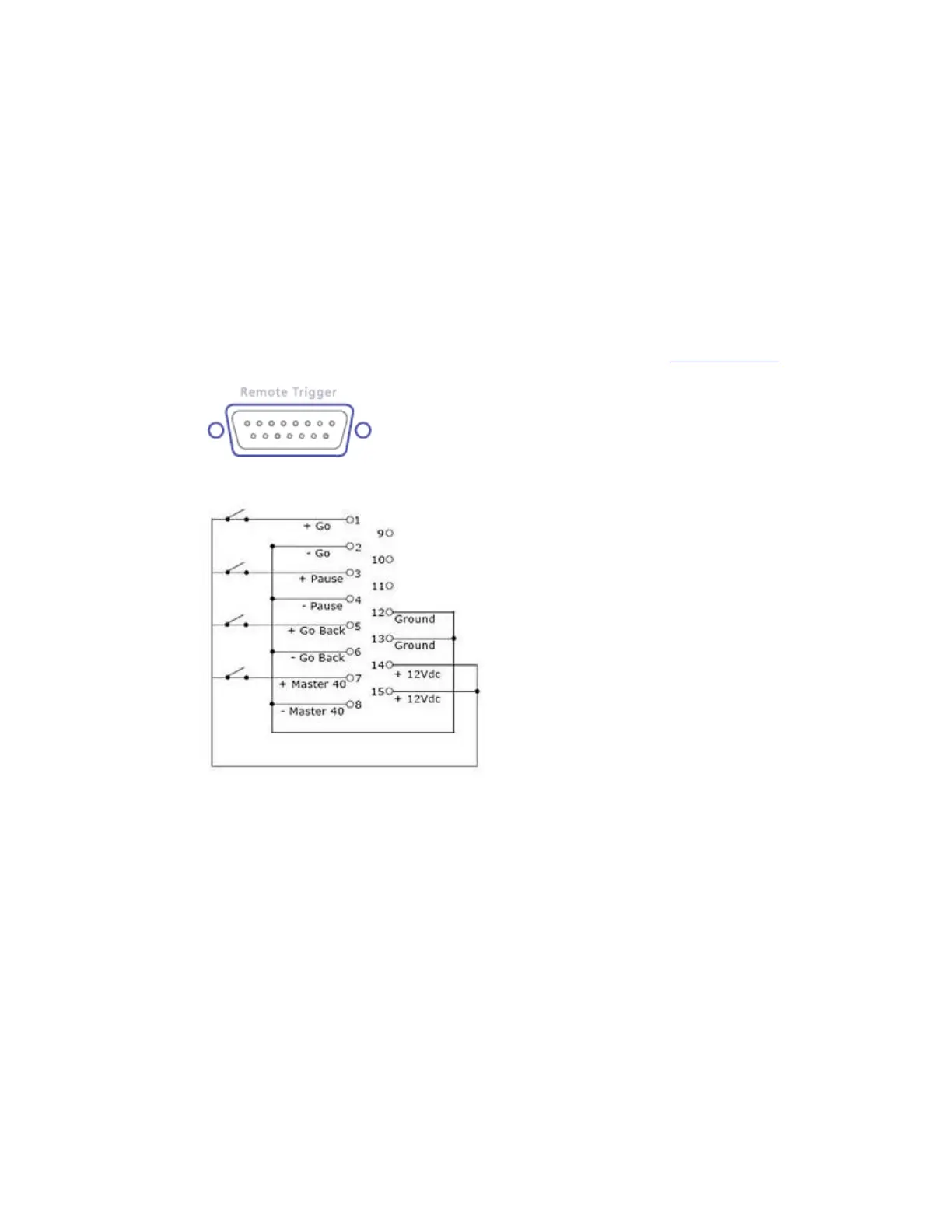

The external trig also allows the following functions directly.
1: Go
2: Pause
3: Go Back
4: Toggles Master 40 On/Off.
The Remote Control Setting must be turned on for the remote to work. See Settings - System
.
Connector - Ethernet
Two individually configurable Ethernet ports, 802.3af compliant PoE. Transmitting ETCNet2™,
Net3™ (powered by ACN), sACN and ArtNet
output protocols
Pin 1 TX+
Pin 2 TX-
Pin 3 RX+
Pin 4 NC
Pin 5 NC
Pin 6 RX-
Pin 7 NC
Pin 8 NC
