Operation Manual – ACL

H3C S3600 Series Ethernet Switches-Release 1510 Chapter 1

ACL Configuration

1-22

2) Define an ACL rule for packets with the source MAC address of 000f-e20f-0101

and destination MAC address of 000f-e20f-0303.

# Create ACL 4000 or enter ACL 4000 view.

[H3C] acl number 4000

# Define an ACL rule to deny packets with the source MAC address of 000f-e20f-0101

and destination MAC address of 000f-e20f-0303, specifying the time range named test

for the ACL rule.

[H3C-acl-ethernetframe-4000] rule 1 deny source 000f-e20f-0101 ffff-ffff-ffff

dest 000f-e20f-0303 ffff-ffff-ffff time-range test

[H3C-acl-ethernetframe-4000] quit

3) Apply the ACL on GigabitEthernet1/1/1.

# Apply the ACL on GigabitEthernet1/1/1.

[H3C] interface GigabitEthernet1/1/1

[H3C-GigabitEthernet1/1/1] packet-filter inbound link-group 4000

1.9.4 User-Defined ACL Configuration Example

I. Network requirements

Apply an ACL on Ethernet1/0/1 to deny all the TCP packets within the time range from

8:00 to 18:00 everyday.

II. Network diagram

Switch

To router

Switch

To router

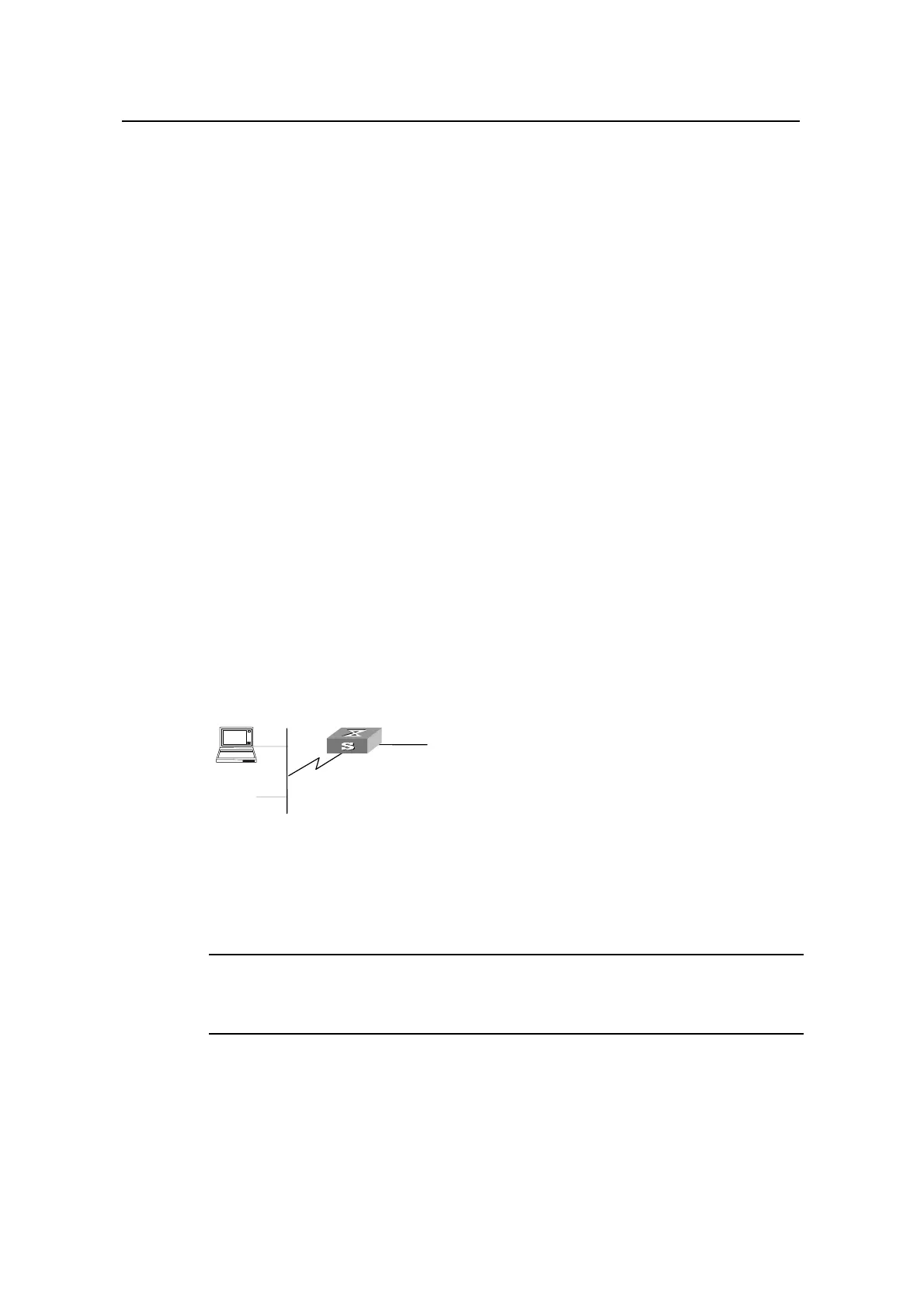

Figure 1-4 Network diagram for user-defined ACL configuration

III. Configuration procedure

 Note:

Only the commands related to the ACL configuration are listed below.

1) Define the time range.

# Define a periodic time range that is active from 8:00 to 18:00 everyday.

[H3C] time-range aaa 8:00 to 18:00 daily
