H3C S3600 Series User Manual

Operation Manual – DHCP
H3C S3600 Series Ethernet Switches-Release 1510 Chapter 2
DHCP Server Configuration
2-29
z AS-IP: 2.2.2.2
z Voice VLAN configuration: voice VLAN: enabled; voice VLAN ID: 3
z Fail-over routing: IP address: 1.1.1.1; dialer string: 99*
II. Network diagram
局域网
DHCP server
DHCP client
DHCP client
Ether
net1/0/1
10.1.1.1/24
3COM VCX
LAN 局域网
DHCP client
Ether
net1/0/1
10.1.1.1/24
3COM VCX
LAN 局域网
DHCP client
Ether
net1/0/1
10.1.1.1/24
3COM VCX
LAN
局域网
DHCP server
DHCP client
DHCP client
Ether
net1/0/1
10.1.1.1/24
3COM VCX
LAN 局域网
DHCP server
DHCP client
DHCP client
Ether
net1/0/1
10.1.1.1/24
3COM VCX
LAN 局域网
DHCP client
Ether
net1/0/1
10.1.1.1/24
3COM VCX
LAN 局域网
DHCP client
Ether
net1/0/1
10.1.1.1/24
3COM VCX
LAN

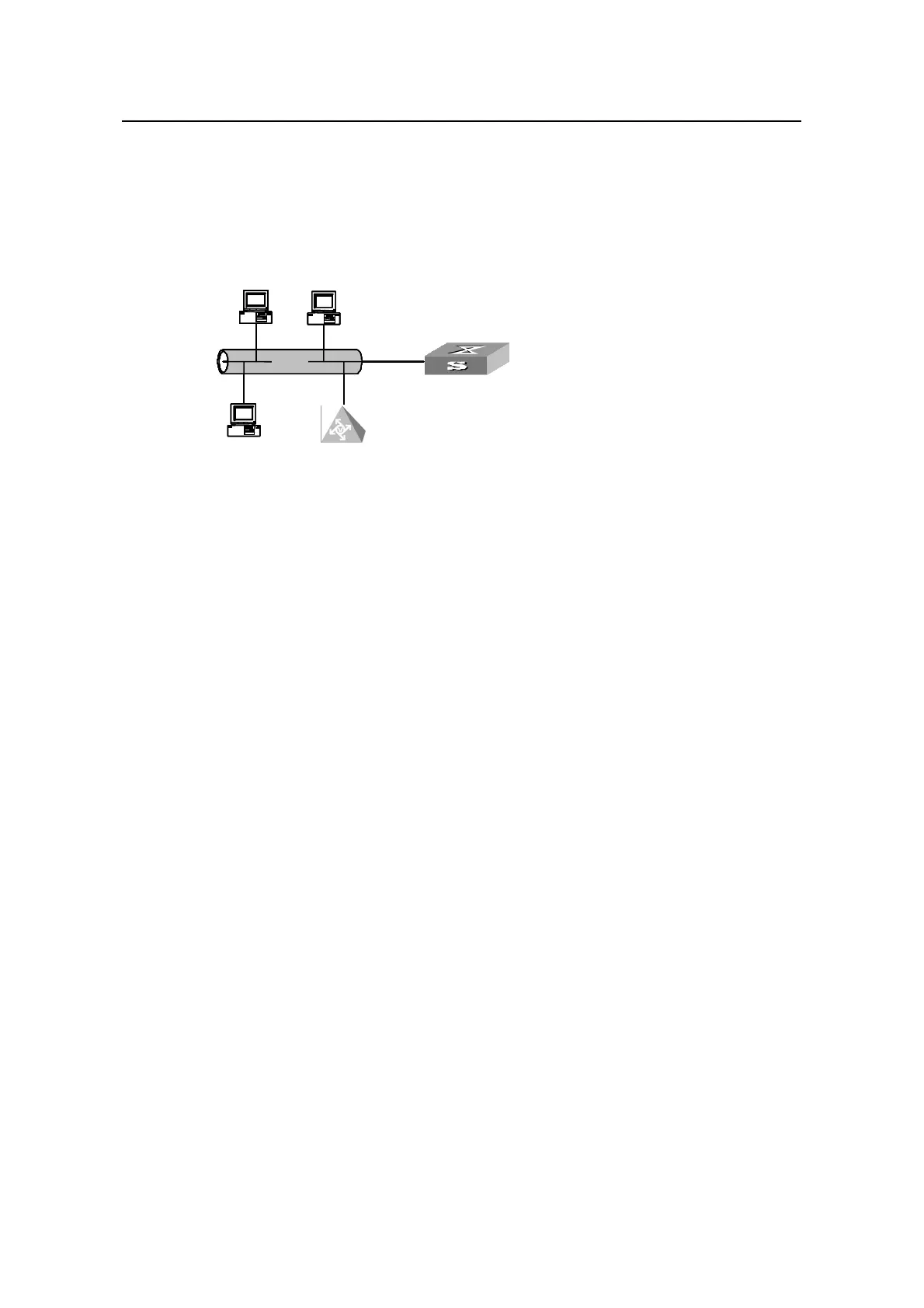

Figure 2-1 Network diagram for option 184 supporting configuration
III. Configuration procedure
1) Configure the DHCP client.
Configure the 3COM VCX device to operate as a DHCP client and to request for all
sub-options of option 184. (Configuration process omitted)
2) Configure the DHCP server.
# Enter system view.
<H3C> system-view
[H3C]
# Add Ethernet1/0/1 to VLAN 2 and configure the IP address of VLAN 2 interface to be
10.1.1.1/24.
[H3C] vlan 2
[H3C-vlan2] port Ethernet 1/0/1
[H3C-vlan2] quit
[H3C] interface Vlan-interface 2
[H3C-Vlan-interface2] ip address 10.1.1.1 255.255.255.0
[H3C-Vlan-interface2] quit
# Configure VLAN 2 interface to operate in the DHCP server mode.
[H3C] dhcp select global interface Vlan-interface 2
# Enter DHCP address pool view.
[H3C] dhcp server ip-pool 123
# Configure sub-options of option 184 in global DHCP address pool view.
[H3C-dhcp-pool-123] network 10.1.1.1 mask 255.255.255.0
[H3C-dhcp-pool-123] voice-config ncp-ip 3.3.3.3
