II. Network diagram
SwitchB
SwitchA
PC
GE2/1/3
GE2/1/3
GE2/1/4
GE2/1/4
SwitchB
SwitchA
PC
GE2/1/3
GE2/1/3
GE2/1/4
GE2/1/4
SwitchB
SwitchA
PC
GE2/1/3
GE2/1/3
GE2/1/4
GE2/1/4
SwitchB
SwitchA
PC
GE2/1/3
GE2/1/3
GE2/1/4
GE2/1/4

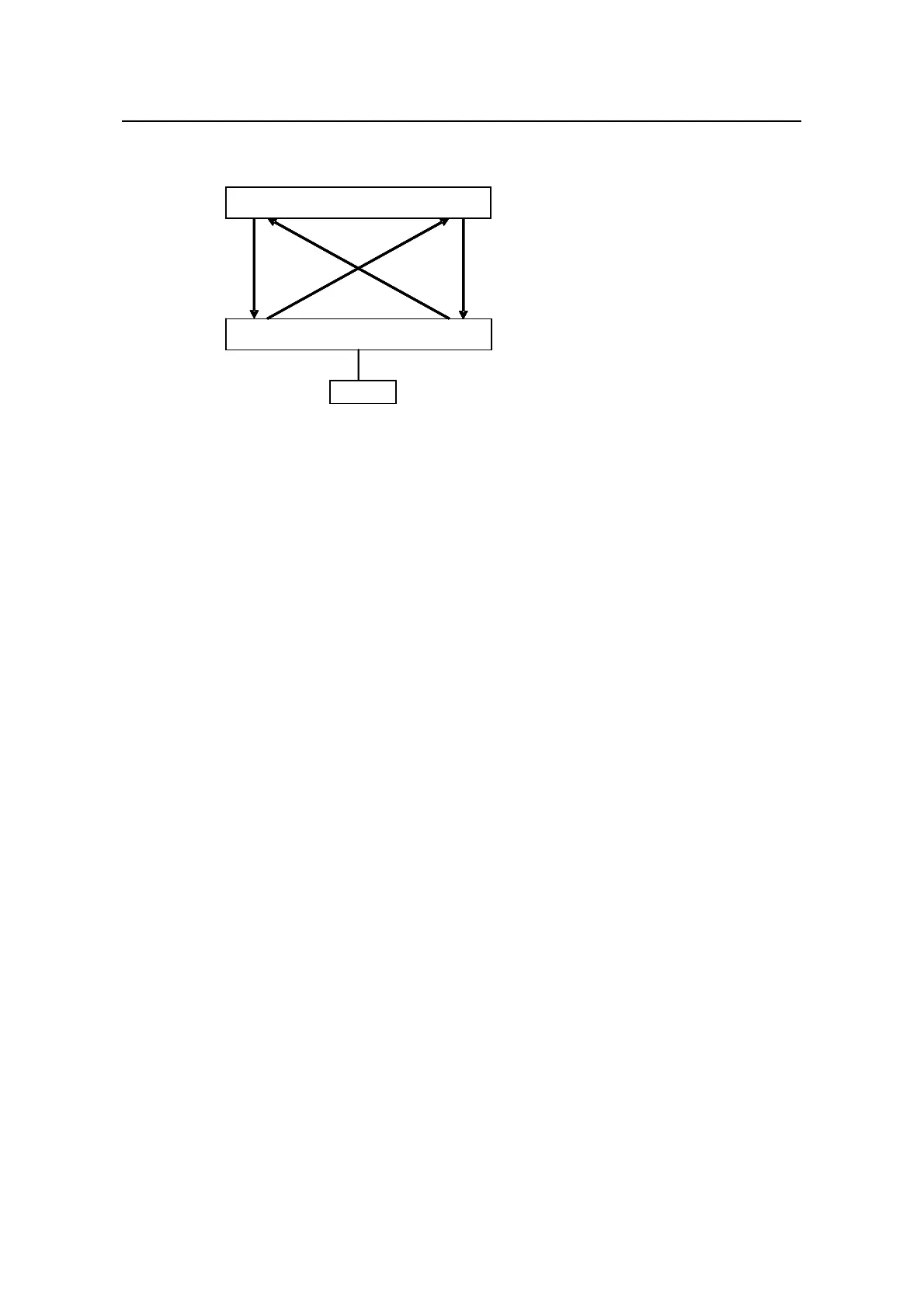

Figure 1-3 Fiber cross-connection
III. Configuration procedure
1) Configure Switch A
# Configure the ports to work in mandatory full duplex mode at a rate of 1000 Mbps.
<H3CA> system-view
[H3CA] interface gigabitethernet 2/1/3
[H3CA-GigabitEthernet2/1/3] duplex full
[H3CA-GigabitEthernet2/1/3] speed 1000
[H3CA-GigabitEthernet2/1/3] quit
[H3CA] interface gigabitethernet 2/1/4
[H3CA-GigabitEthernet2/1/4] duplex full
[H3CA-GigabitEthernet2/1/4] speed 1000
[H3CA-GigabitEthernet2/1/4] quit
# Enable DLDP globally
[H3CA] dldp enable
# Set the interval between sending DLDP packets to 15 seconds.
[H3CA] dldp interval 15
# Configure DLDP to work in enhanced mode
[H3CA] dldp work-mode enhance
# Set the DLDP handling mode for unidirectional links to auto.
[H3CA] dldp unidirectional-shutdown auto
# Display the DLDP state
[H3CA] display dldp 1
