Operation Manual – MAC Address Table
H3C S3600 Series Ethernet Switches-Release 1510 Chapter 1 MAC Address Table Management
1-7
II. Network diagram
Console port
Network p
Switch
Inte
ort
rnet
Console port
Network p
Switch
Inte
ort
rnet

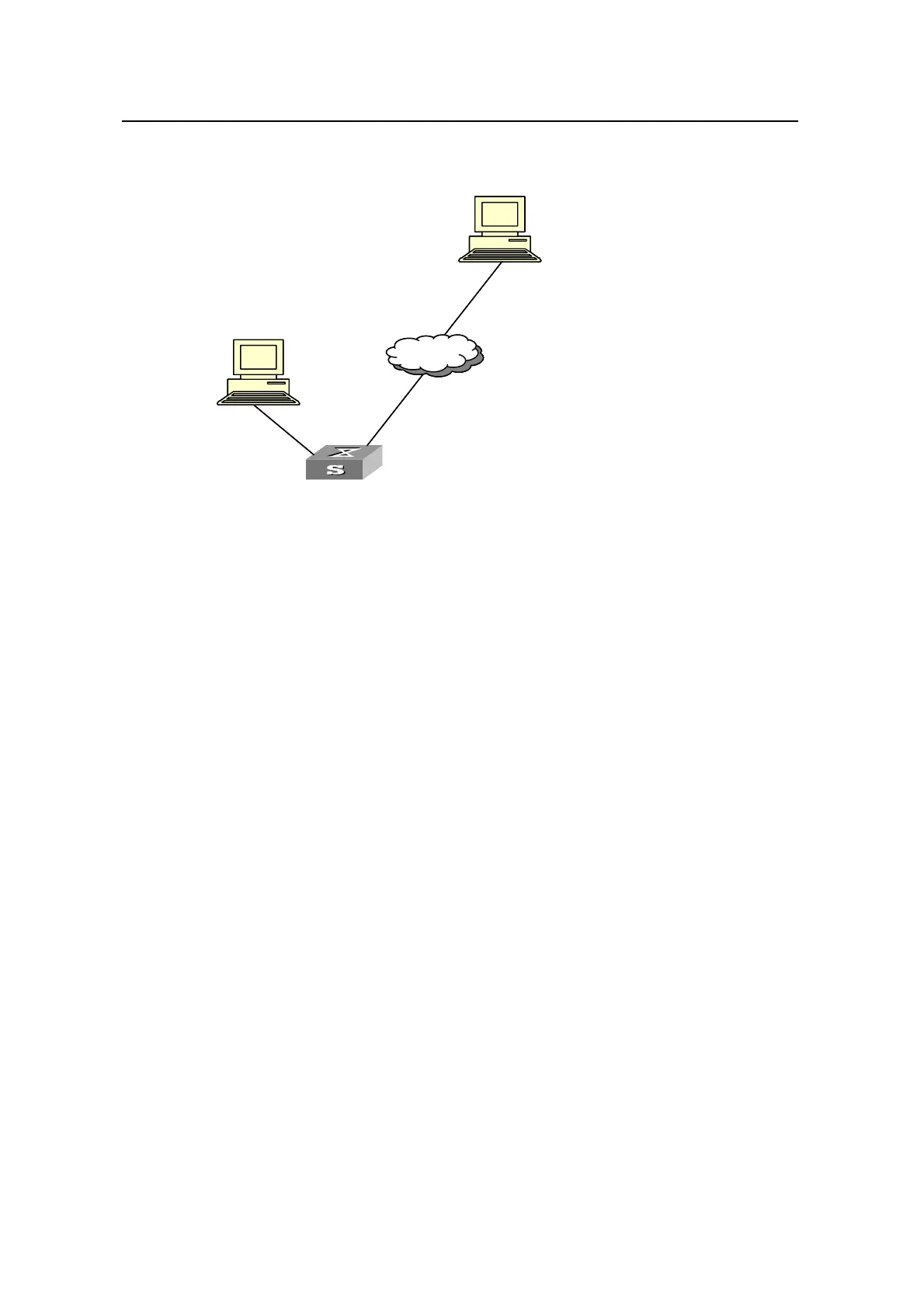

Figure 1-2 Network diagram for MAC address table configuration
III. Configuration procedure
# Enter system view.
<H3C> system-view
[H3C]
# Add a MAC address, with the VLAN, ports, and states specified.
[H3C] mac-address static 000f-e235-dc71 interface Ethernet 1/0/2 vlan 1
# Set the aging time of dynamic MAC addresses to 500 seconds.
[H3C] mac-address timer aging 500
# Display the information about the MAC address entries in system view.
[H3C] display mac-address interface Ethernet 1/0/2
MAC ADDR VLAN ID STATE PORT INDEX AGING TIME(s)
000f-e235-dc71 1 Static Ethernet1/0/2 NOAGED
000f-e217-a7d6 1 Learned Ethernet1/0/2 AGING
000f-e25e-b1fb 1 Learned Ethernet1/0/2 AGING
000f-e255-f116 1 Learned Ethernet1/0/2 AGING
--- 4 mac address(es) found on port Ethernet1/0/2 ---
