H3C S3600 Series User Manual

Operation Manual – Cluster
H3C S3600 Series Ethernet Switches-Release 1510 Chapter 1
Cluste
r
1-21
II. Network diagram
Port e1/0/2)
VLAN 2
FTP
(IP A
Sever
ddress 192.168.4.3)
(IP Address192.168.4.22
S3526E
(IP Address 192.168.5.30
Port e1/0/1)
S2403
S3600
VLAN 3
Port e1/0/2)
VLAN 2
FTP
(IP A
Sever
ddress 192.168.4.3)
(IP Address192.168.4.22
S3526E
(IP Address 192.168.5.30
Port e1/0/1)
S2403
S3600
VLAN 3

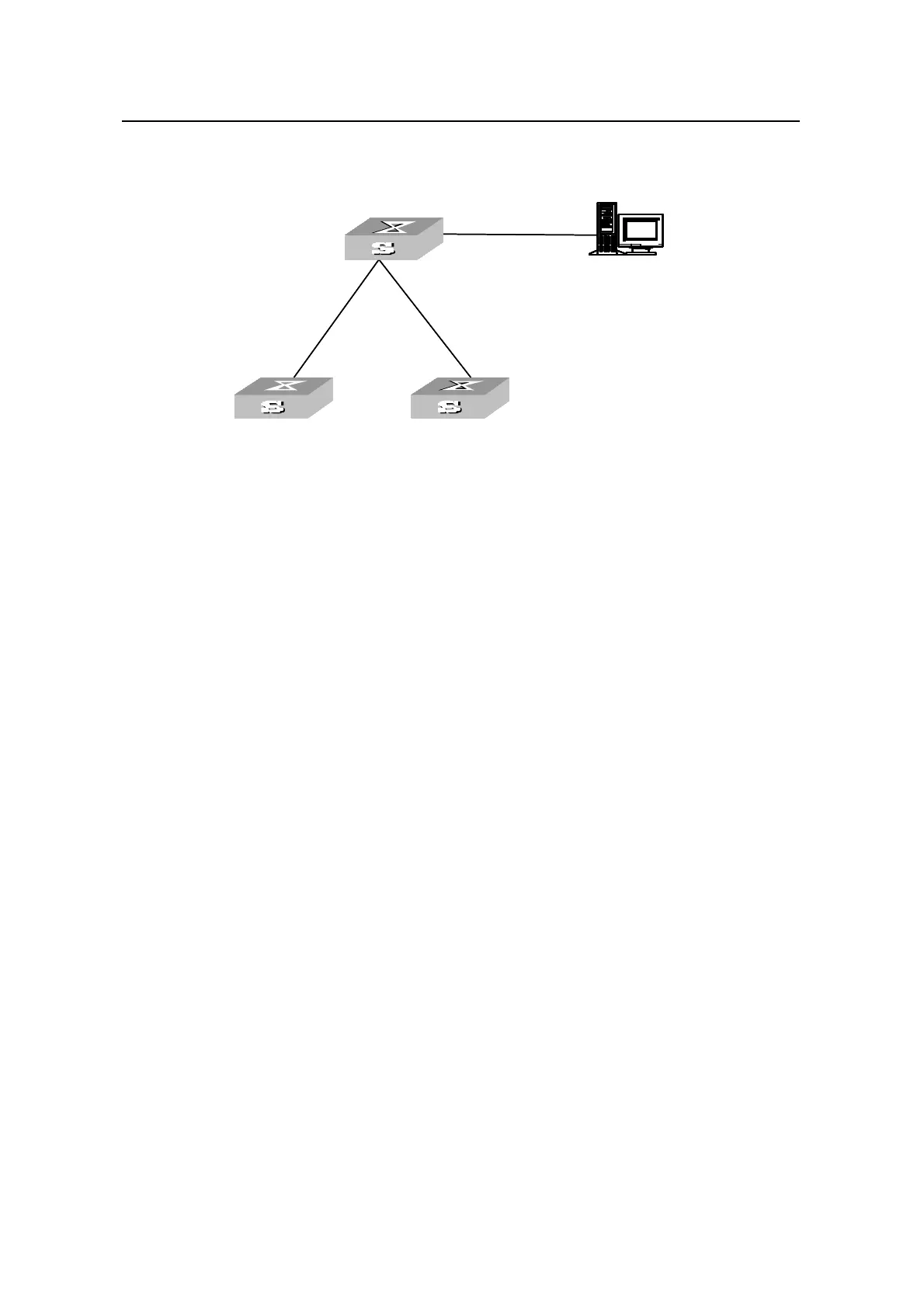

Figure 1-4 Network diagram for NM interface configuration
III. Configuration procedure
# Enter system view and configure VLAN 3 as the management VLAN.
<H3C> system-view
[H3C] management-vlan 3
# Add Ethernet 1/0/1 to VLAN 3.
[H3C] vlan 3
[H3C-vlan3] port Ethernet 1/0/1
[H3C-vlan3] quit
# Set the IP address of VLAN-interface 3 to 192.168.5.30.
[H3C] interface Vlan-interface 3
[H3C-Vlan-interface3] ip address 192.168.5.30 255.255.255.0
[H3C-Vlan-interface3] quit
# Add Ethernet 1/0/2 to VLAN 2.
[H3C] vlan 2
[H3C-vlan2] port Ethernet 1/0/2
[H3C-vlan2] quit
# Set the IP address of VLAN-interface 2 to 192.168.4.22.
[H3C] interface Vlan-interface 2
[H3C-Vlan-interface2] ip address 192.168.4.22 255.255.255.0
[H3C-Vlan-interface2] quit
# Configure VLAN-interface 2 as the NM interface.
[H3C] cluster
[H3C-cluster] nm-interface Vlan-interface 2
