Operation Manual – VLAN-VPN
H3C S3600 Series Ethernet Switches-Release 1510 Chapter 1
VLAN-VPN Configuration
1-6
Caution:
You will fail to execute the vlan-vpn tpid command on an IRF Fabric port.
1.5 VLAN-VPN Configuration Example
I. Network requirements
z Switch A and Switch C are S3600 series switches. Switch B is a switch coming
from another manufacturer, which uses the TPID value of 0x9100.
z Two user networks are connected to the Ethernet1/0/1 ports of Switch A and
Switch C respectively.
z Switch B only permits packets of VLAN 10.
z It is required that packets of the VLANs other than VLAN 10 can be exchanged
between the user networks connected to Switch A and Switch C.
II. Network diagram

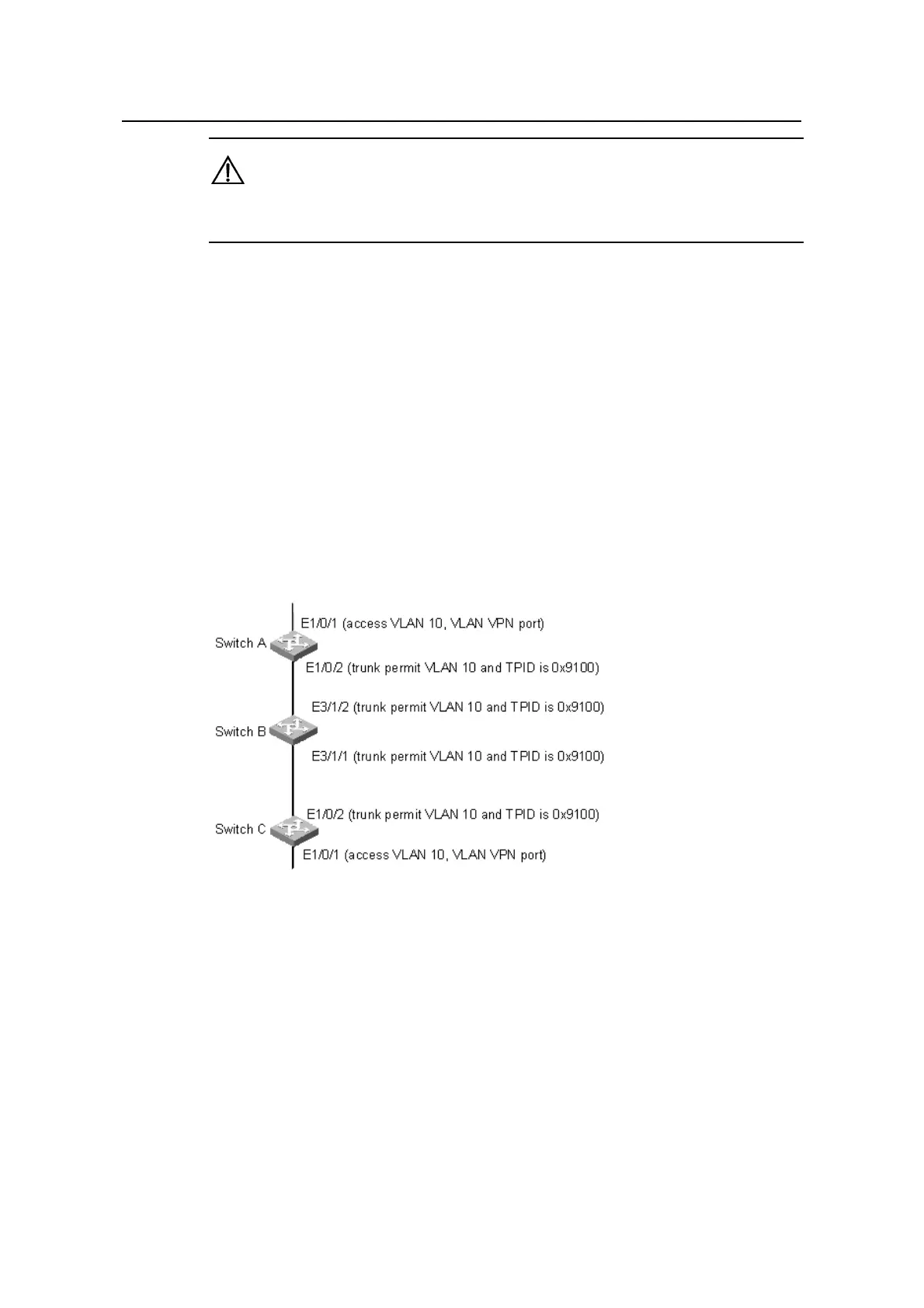

Figure 1-4 Network diagram for VLAN-VPN configuration
III. Configuration Procedure
1) Configure Switch A and Switch C.
As the configuration performed on Switch A and Switch C is the same, configuration on
Switch C is omitted.
# Set the TPID value of Ethernet1/0/2 port of Switch A to 0x9100, and add the port to
VLAN 10.
<SwitchA> system-view
[SwitchA] vlan 10
